3-SETUP

Viewangles

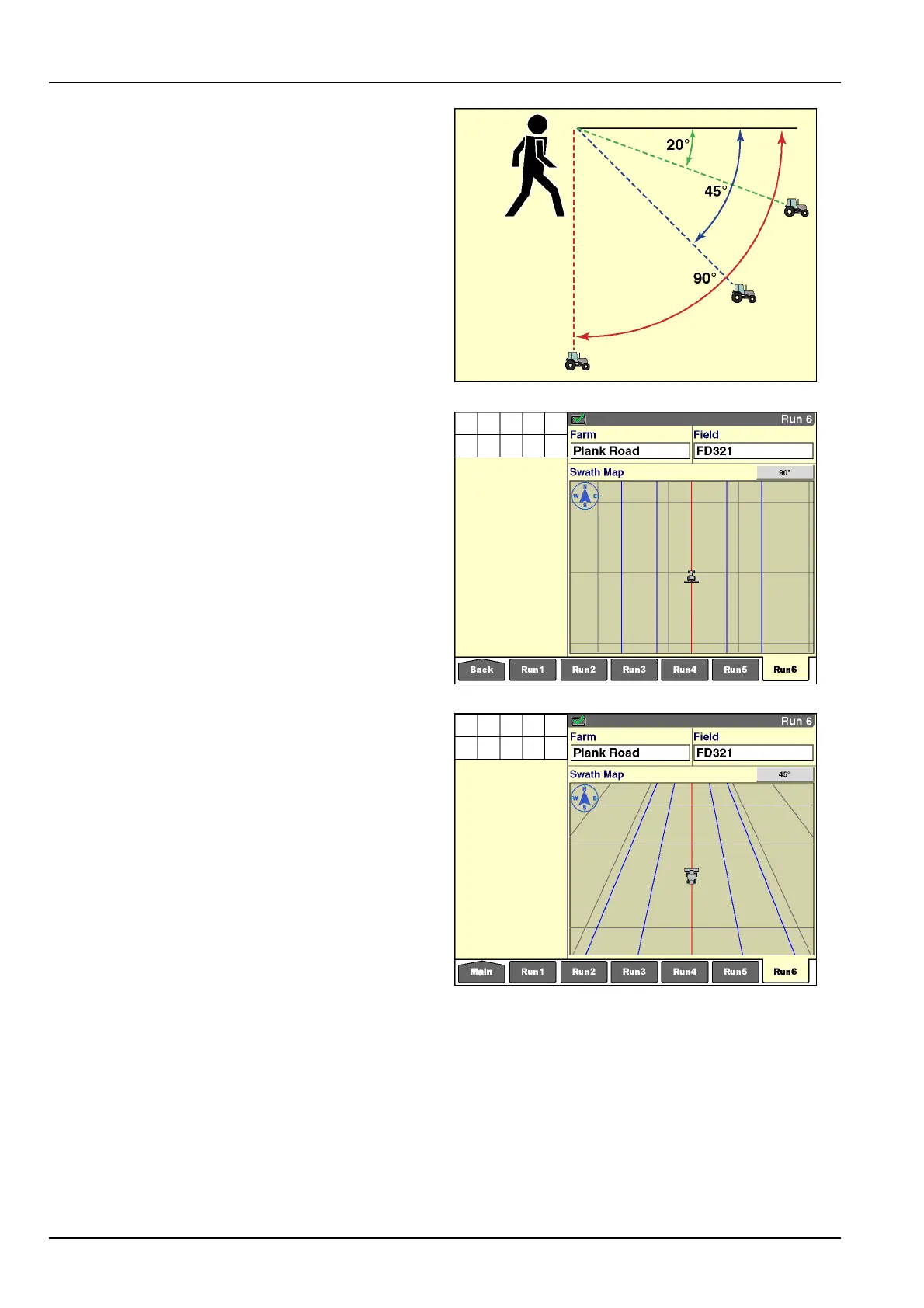

Theswathmapoffersthreeviewangles:20°,45°and

90°.Theanglesprovidedifferentperspectivesoftheve-

hiclerelativetothehorizonwhenanobserverviewsthe

vehiclefrombehind.

RCIL11DSP256BBG6

A90°viewangle(redangle)meanstheobserverisview-

ingthevehiclefromdirectlyabovethevehicle.

RCIL11DSP032BBG7

A45°viewangle(blueangle)meanstheobserverisview-

ingthevehicleata45°downwardangletowardthehori-

zon.

RCIL11DSP035BBG8
