2-ICONSANDWINDOWS

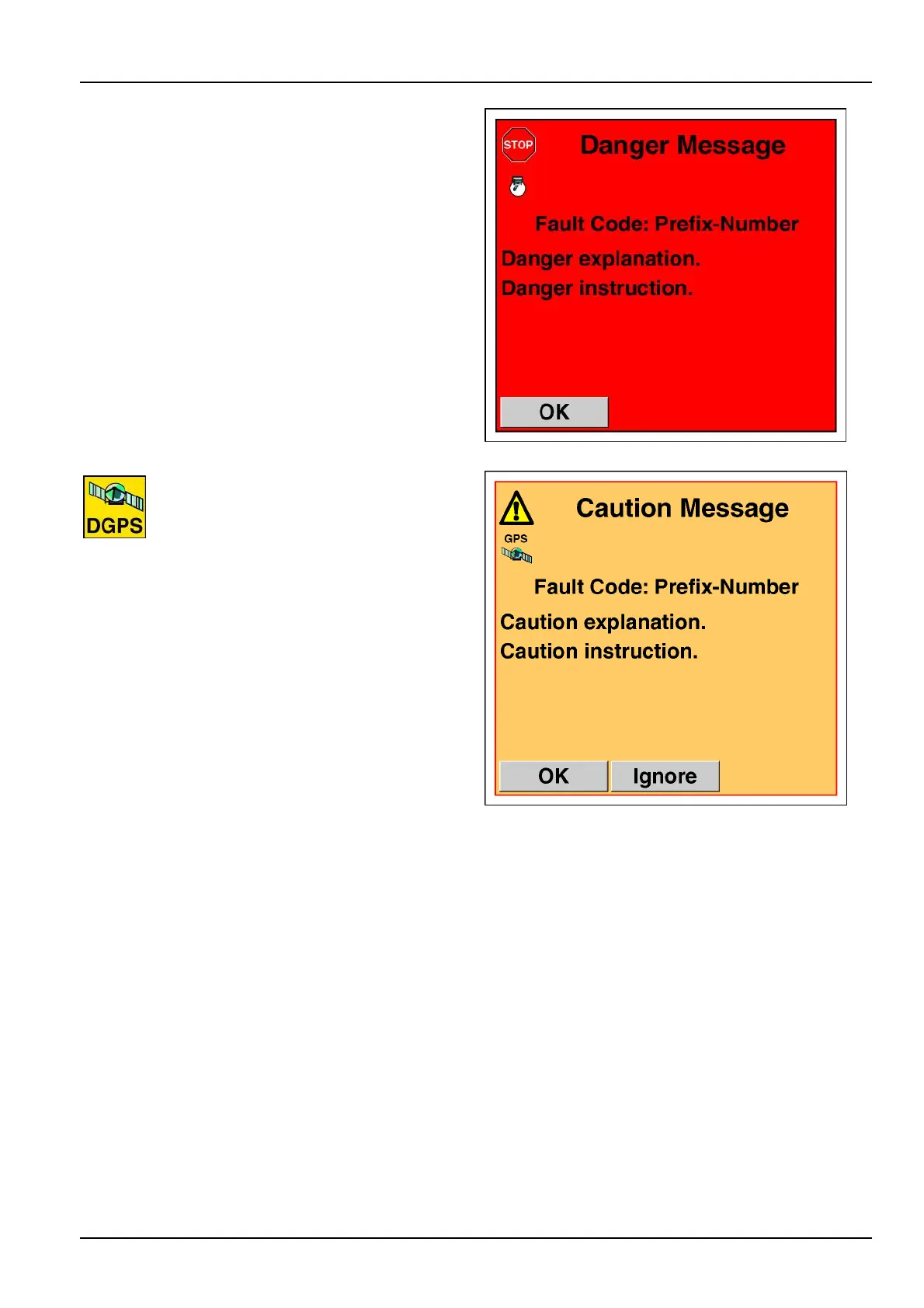

Thewindowcontains:
•
Thedangericon
•
Thefaultmessage
•
Aniconfortheproblemarea
•
Afaultcodereference
•
Abriefexplanationofthedangerouscondition
•
Aninstructionthatexplainswheretondmoreinforma-
tion.
Adangermessagecanonlybeacknowledgedandmo-
mentarilyclearedbypressingthe“OK”button.Thefault
mustbecorrectedtostopthemessagefromreoccurring.
Moreinformationisavailableinthe"FaultArchive"screen
inDiagnostics(Home>Diagnostics>Fault).
RCIL11DSP106BBG3
Yellowisthecolorofcaution.Cautionicons
areshownafterdangericonsinthestatus
area,orareshownrstwhennodanger
iconsarepresent.Cautioniconsonlyclear
whentheircauseisremoved.
Cautioniconsmean:
•
Operationofthevehicleispossiblewiththelossofone
ormorefunctions.Theoperatormustdecidewhether
tocontinueoperatingwiththelossofthefunctionindi-
cated.
•
Apotentiallyhazardoussituationispresent.Ifnot
avoided,thesituationcouldresultinlossofvehicle
control,lossofdata,orminortomoderatesystem
damage
•
Adefaultvaluehasbeenmanuallyoverriddenbyan
operatorusingawindowona“Run”screen.
OR
•
Anunsafepracticeisinprogress
Cautioniconsareaccompaniedbyapop-upwindow(ex-
ceptwhenanoperatoroverridesadefaultvalue).
RCIL11DSP107BBG4
2-19
