4-OPERATINGINSTRUCTIONS

Pattern:Atype

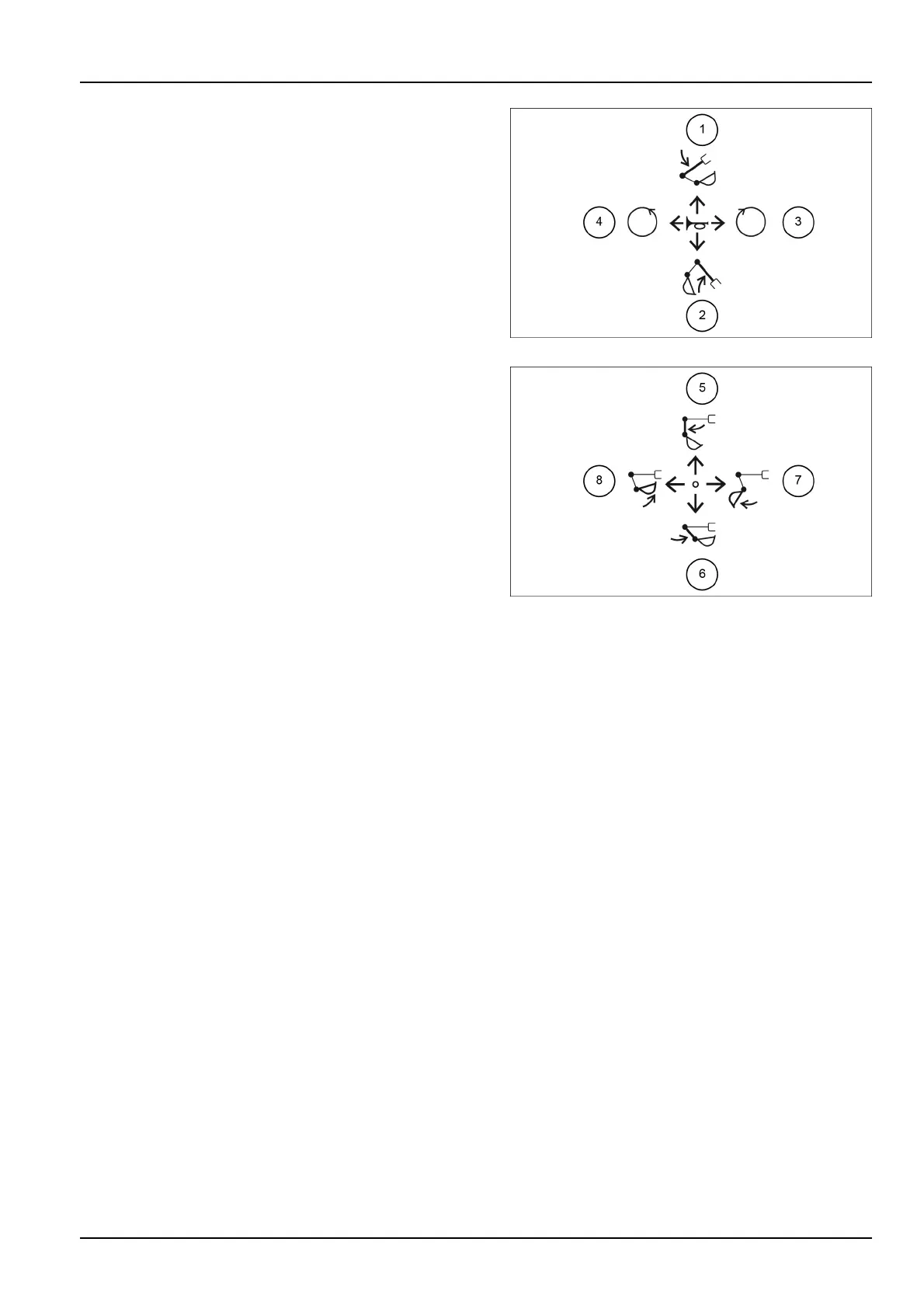

Left–handcontrollevercontrolfunction

1.Boomlowering

2.Boomraising

3.Swingright

4.Swingleft

SMIL16MEX0589AB6

Right–handcontrollevercontrolfunction

5.Armout

6.Armin

7.Bucketout

8.Bucketin

SMIL16MEX0590AB7

4-15
