9-ACCESSORIES

Operatingcontrols

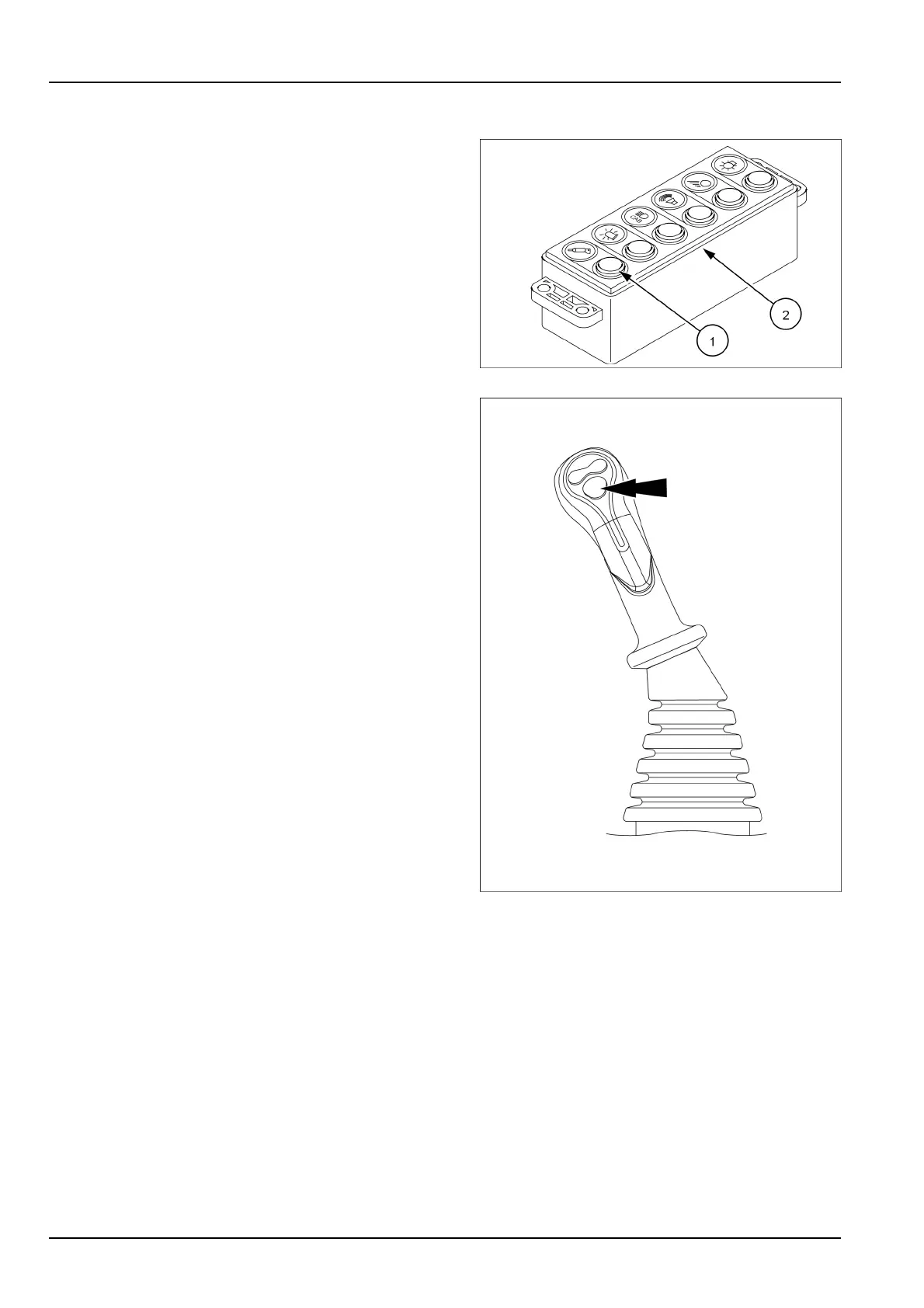

Toactivatethebreakerhydrauliccircuitpressthebreaker

push-button(1)locatedonthepush-buttonpanel(2)on

theright-handsidecontrolsconsole.

SMIL16MEX0506AA2

Thebreakerpush-buttonislocatedontheright-hand

controllever:

•

Pressthebreakerpush-buttontooperatethesingleact-

inghydraulicattachment.

SMIL18MEX0408BA3

9-10
