9-ACCESSORIES

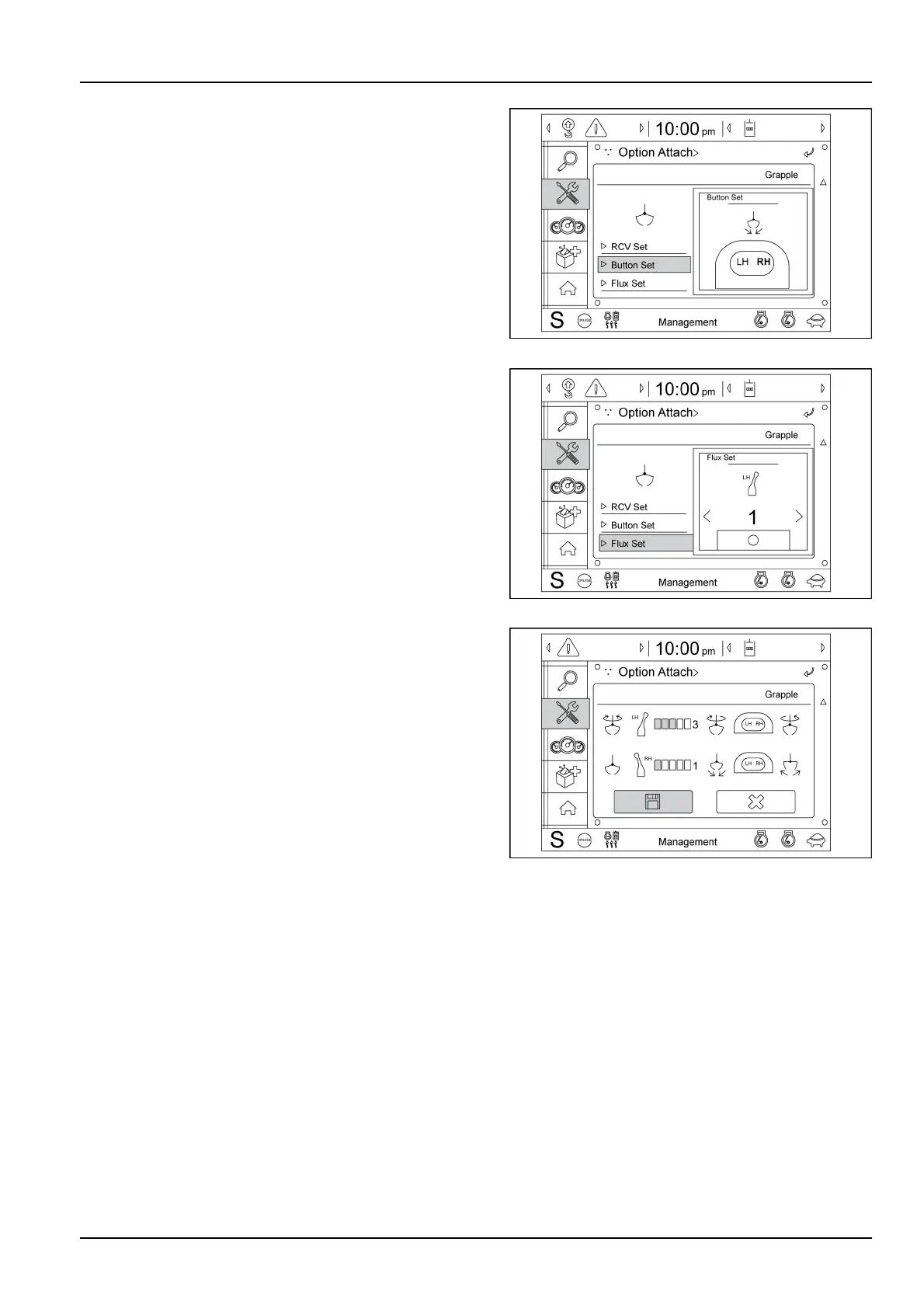

Proportionalswitchsetting:

•

Setleft-handorright-handproportionalswitchrespec-

tivelyforCloseorOpen.

NOTE:thedefaultcontrolforgrapple/augerproportional

switchistoleft-handreleaseandtoright-handclamp.

NOTE:thedefaultcontrolforrotaryproportionalswitch

istoleft-handcounterclockwiserotationandtoright-hand

clockwiserotation.

SMIL17MEX2979AA18

Fluxsetting:

•

enableuxsettingfromlevel1tolevel5.

SMIL17MEX2980AA19

Savesettingvalue:

•

Selectthesaveicontosavesettingvalues.

SMIL17MEX2986AA20

9-19
