3-CONTROLSANDINSTRUMENTS

SMIL16MEX0524EA35

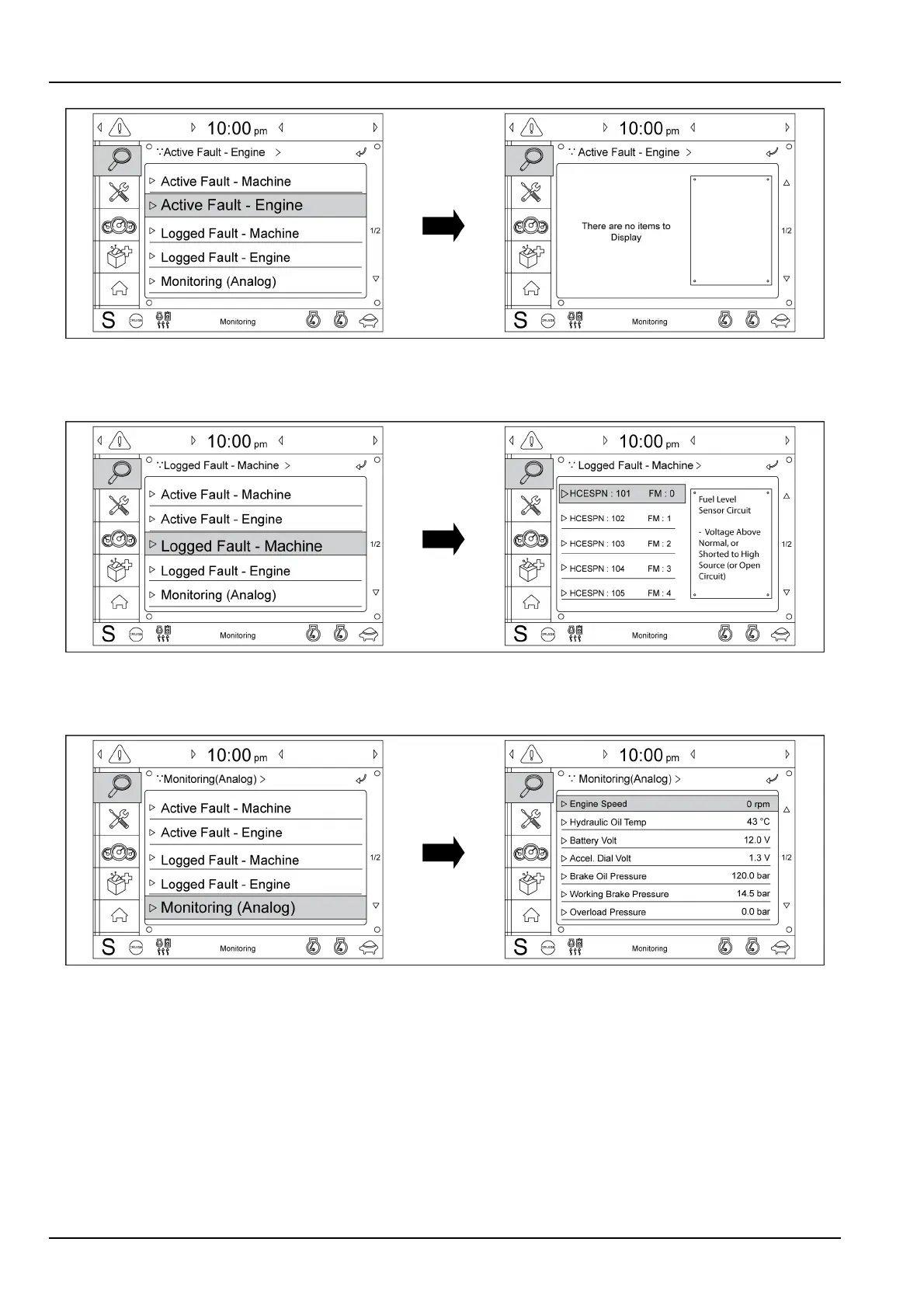

(B)Activefault–Engine

TheactivefaultsofengineECUcanbecheckedbythismenu.

SMIL16MEX0525EA36

(C)Loggedfault–Machine/Engine

TheloggedfaultsoftheMCUorengineECUcanbecheckedbythismenu.(Onlyfortheserviceperson).

SMIL16MEX0526EA37

(D)Monitoring(Analog)

ThemachinestatussuchastheengineRPM,theoiltemperature,thevoltage,thepressure,etc.canbecheckedby

thismenu.

3-42
