3-CONTROLSANDINSTRUMENTS

SMIL16MEX0527EA38

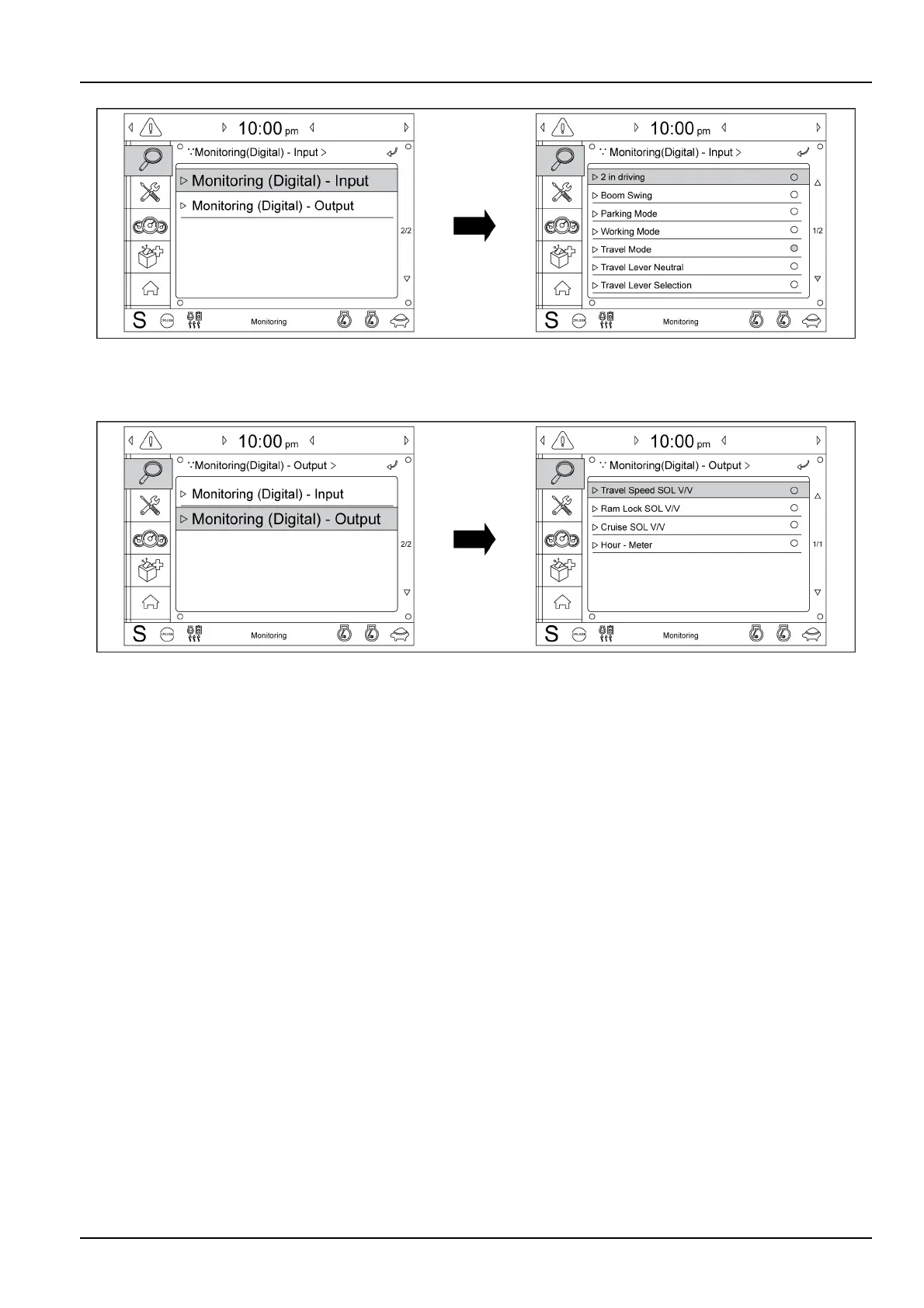

(E)Monitoring(Digital)

Theswitchstatuscanbeconrmedbythismenu.Abluelightconrmstheselectionoftheactivatedswitches.

SMIL16MEX0528EA39

(F)Monitoring(Digital)

Theoutputstatuscanbeconrmedbythismenu.Abluelightconrmstheselectionoftheoutputstatus.

3-43
