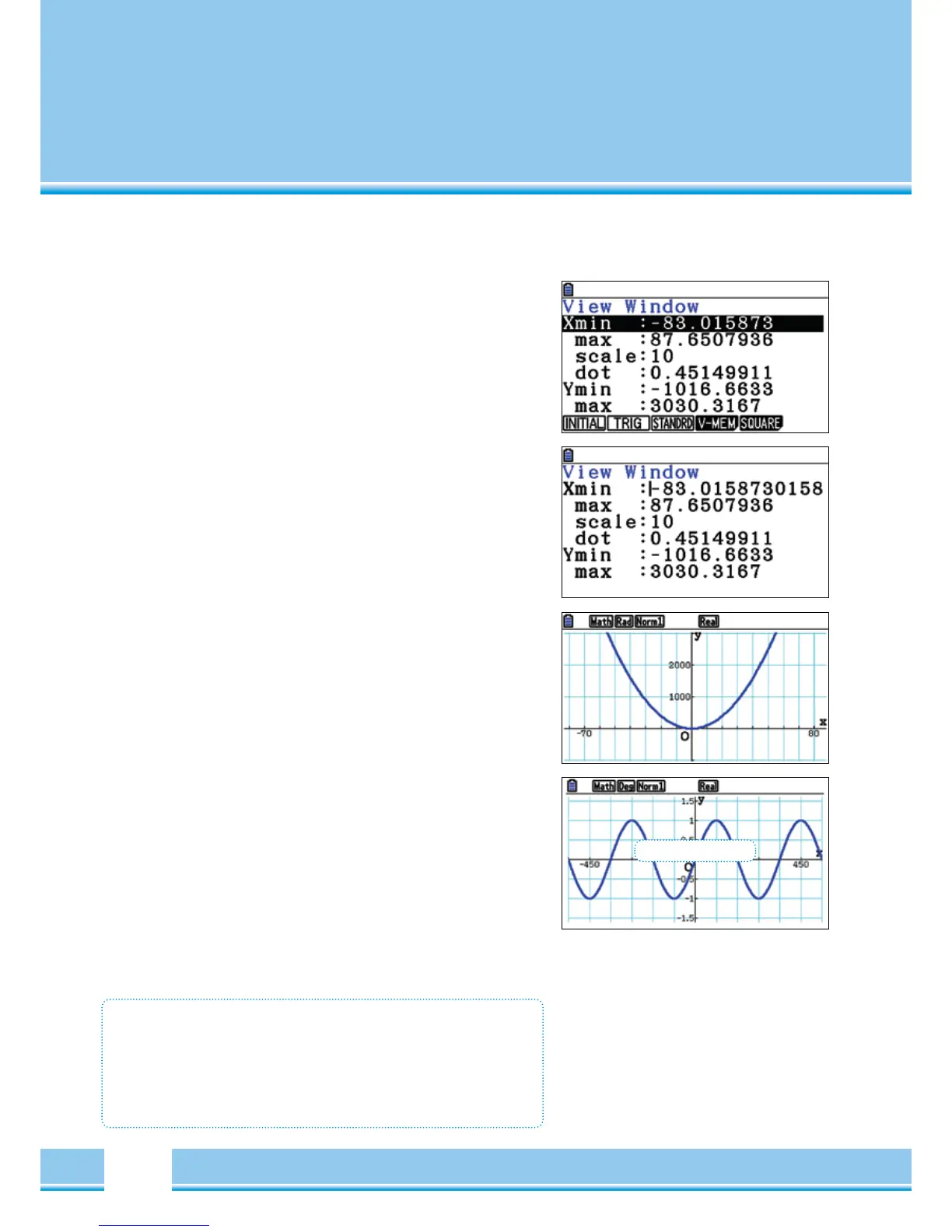

V-WIN
[
F3
]
The Graphic window can be set to varied, in order to optimize the
representation of the Graphs. Preferences help to quickly achieve
early results.
Preferences
[
F1
]
[
F2
]
[
F3
]
INIT Default setting. The aspect ratios are adapted to
the Panel resolution. The graph of a circuit is shown
correctly.
TRIG Preference for Trigonometric functions.
STAND- Setting, the X- and Y-Axis have the same scaling
(
-10/ 10
)
Adjusting the Graphics Window
Xmin smaller values of the X-axis
Xmax greater values of the X-axis
Scale Distance between two points on the X-axis
Dot Grid
(
The impact e.g. of TRACE, G-SOLV, etc
)
Ymin smaller values of the Y-axis
Ymax greater values of the Y-axis
Scale Distance between two points on the Y-axis
Dot Grid
Tip! Means V-MEM
([
F4
])
and STORE/RECALL can be
incurred and settings can be saved and recalled.
V-Window
• INIT, TRIG, STD: Preferences for the Graphic window
• Individual settings are possible
• Manual settings can be saved
Pre-setting TRIG
