In the DYNA- application, similar to the Graphics application,
background images can be saved.

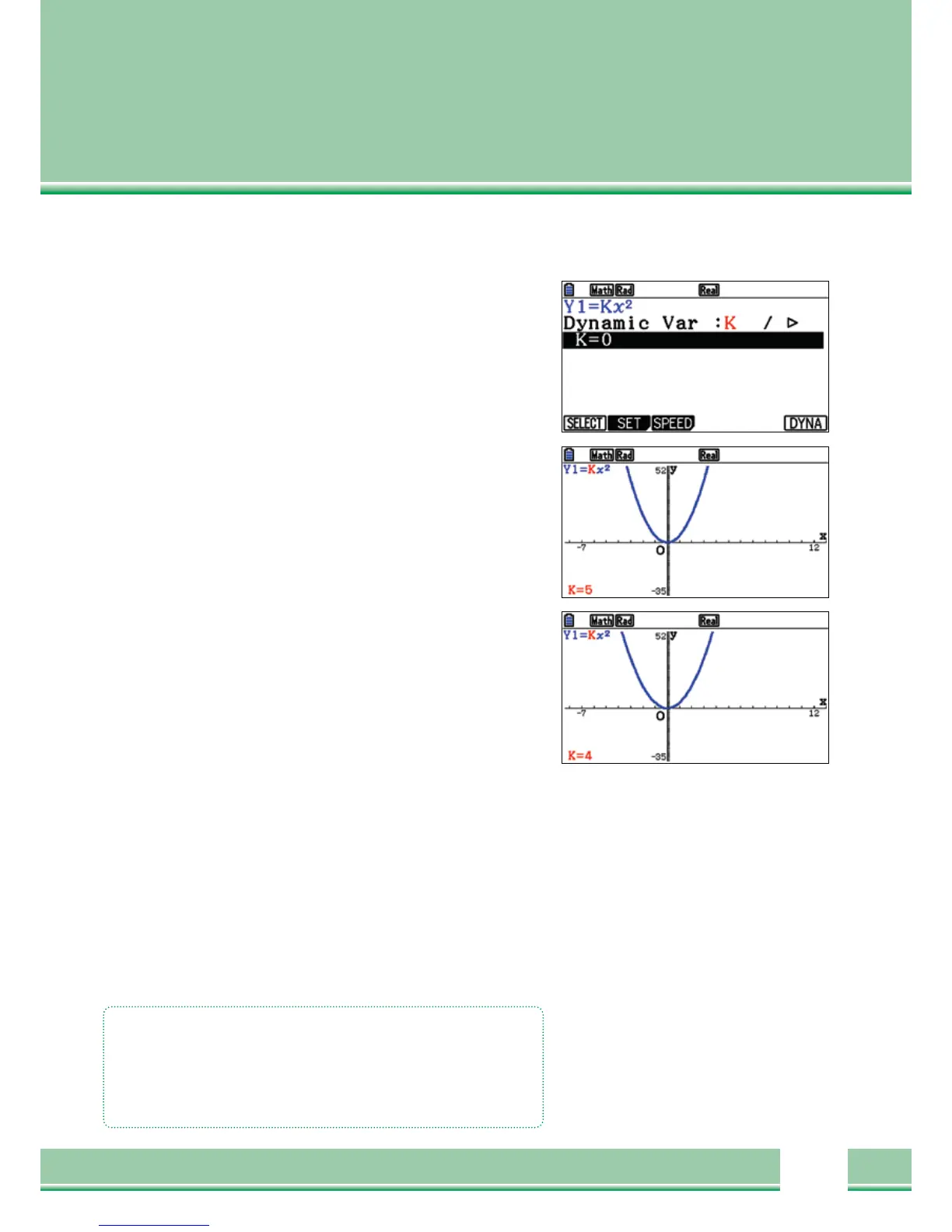

Representation
In the overview window
(
VAR
)
with
[
F6
]
(
DYNA
)
, the graph are shown.
Since initially all the graphs are calculated, the process may take a
little longer than usual.
According to the set speed, the value ranges run for the constant
(
K
)
.
The value is shown at the bottom of the display.
The representation can be aborted with
[
AC/ON
]
Window Setting
(
V-WIN
)
The Graphic window setting is to find in the overview window
(
VAR
)
or the entry of the function with
[
SHIFT
]
[
F3
]
Represent Traces
In the SETUP of the DYNA- application, the Parameter, “Locus” and
“on” are asked. Thus the traces of the graph are visible.
Dynamic Graphs
• Representation of the Graph using
[
F6
]
(
DYNA
)
• V-WIN settings:
[
SHIFT
]
[
F3
]
• Locus function to trace the representation
