Switching on the welding machine

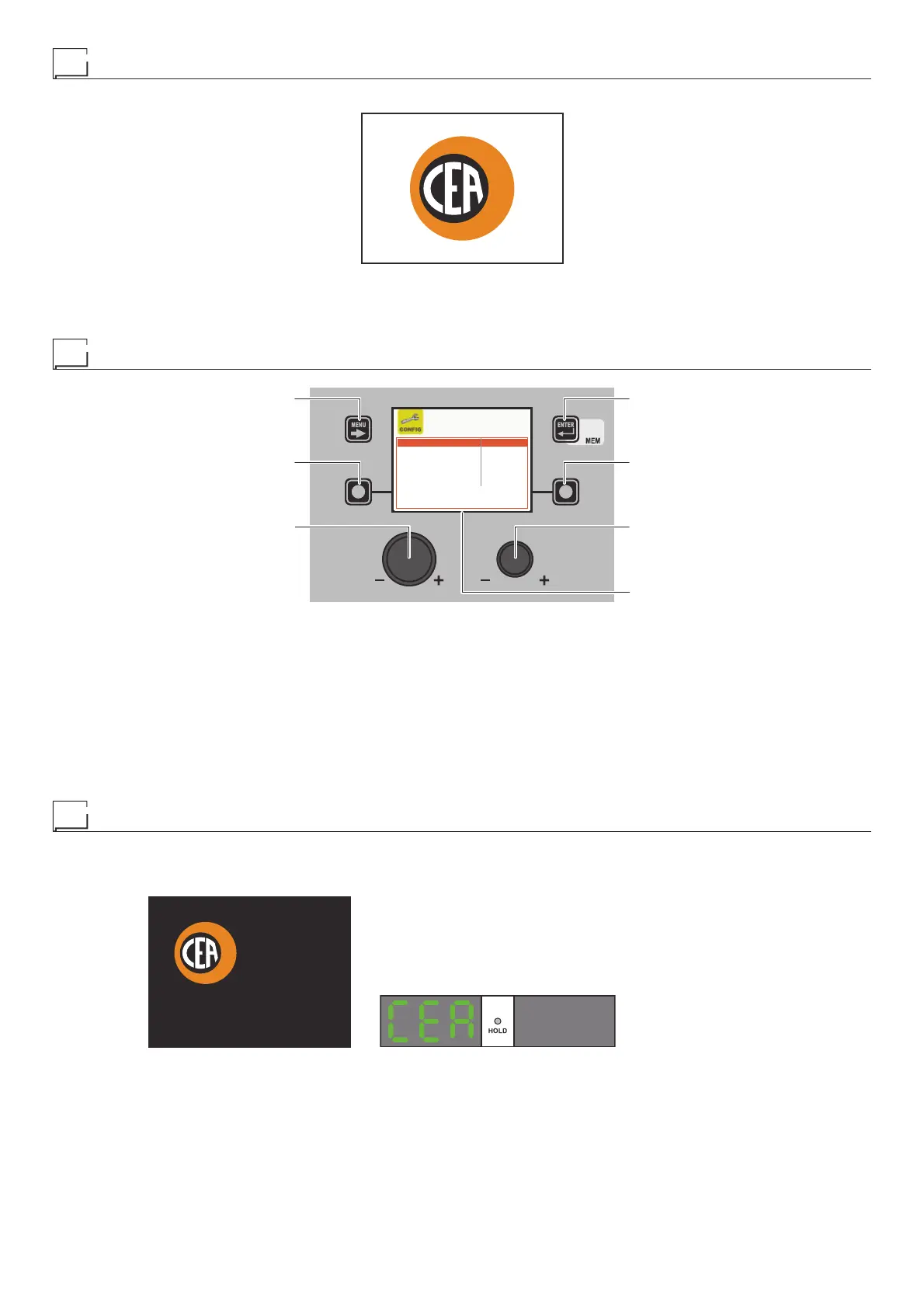

When the unit is switched on the welding machine's VISION SCREEN, shows the logo as shown below:
VISION Screen
During this operation, on the DH / VS panel:
• All the keys and all the encoders are disabled.
Language selection
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION SCREEN
SX KEY DX KEY
LANGUAGE ENGLISH
ADVANCE CONFIGURATION DISABLED
ADVANCE WELDING MODE DISABLED
COOLING MODE ON DEMAND
WIRE LOAD BY GUN DISABLED
WIRE LOAD SPEED 0.8 m/min
“DH” / “VS” CONTROL PANEL
On the VISION S
CREEN the DEFAULT language set by is ENGLISH.
To select another language, proceed as follows:
• Open the SETUP Menu by holding the SX K
EY down for at least 5 consecutive seconds.
• Select the CONFIG Menu by rotating the ENCODER K
NOB - SX until the correct icon is reached.
• Push the ENTER/MEM K
EY to open the CONFIG Menu.
• Select the LANGUAGE Sub-menu by rotating the ENCODER K
NOB - SX.
• Select the language required by rotating the ENCODER K
NOB - DX.
• Push the MENU K
EY to close the CONFIG Menu.
• Push the MENU K
EY to close the SETUP Menu.
Once this has closed, the VISION S
CREEN will show the various text / screens in the language selected.
Screen saver
After a pause or period of inactivity of the welding machine:
• The VISION S
CREEN shows the SCREEN SAVER.
• On both the HT5 displays for the wire feeder, “CEA” appears and scrolls continuously.
VISION Screen Display HT5 (not used with DH 32 and VS 32)
The SCREEN SAVER mode can be exited in one of the following ways:
• By pushing any key or moving any knob on the welding machine's panel or that of the wire feeder.
• Starting the welding process, in which case the welding is activated in context.
• Moving a remote control.
When the SCREEN SAVER is exited, the welding machine goes back to the working condition prior to activation of the screen saver.
