23
TIG LIFT
Select the TIG LIFT welding process by using the MENU KEY as explained on page 7.

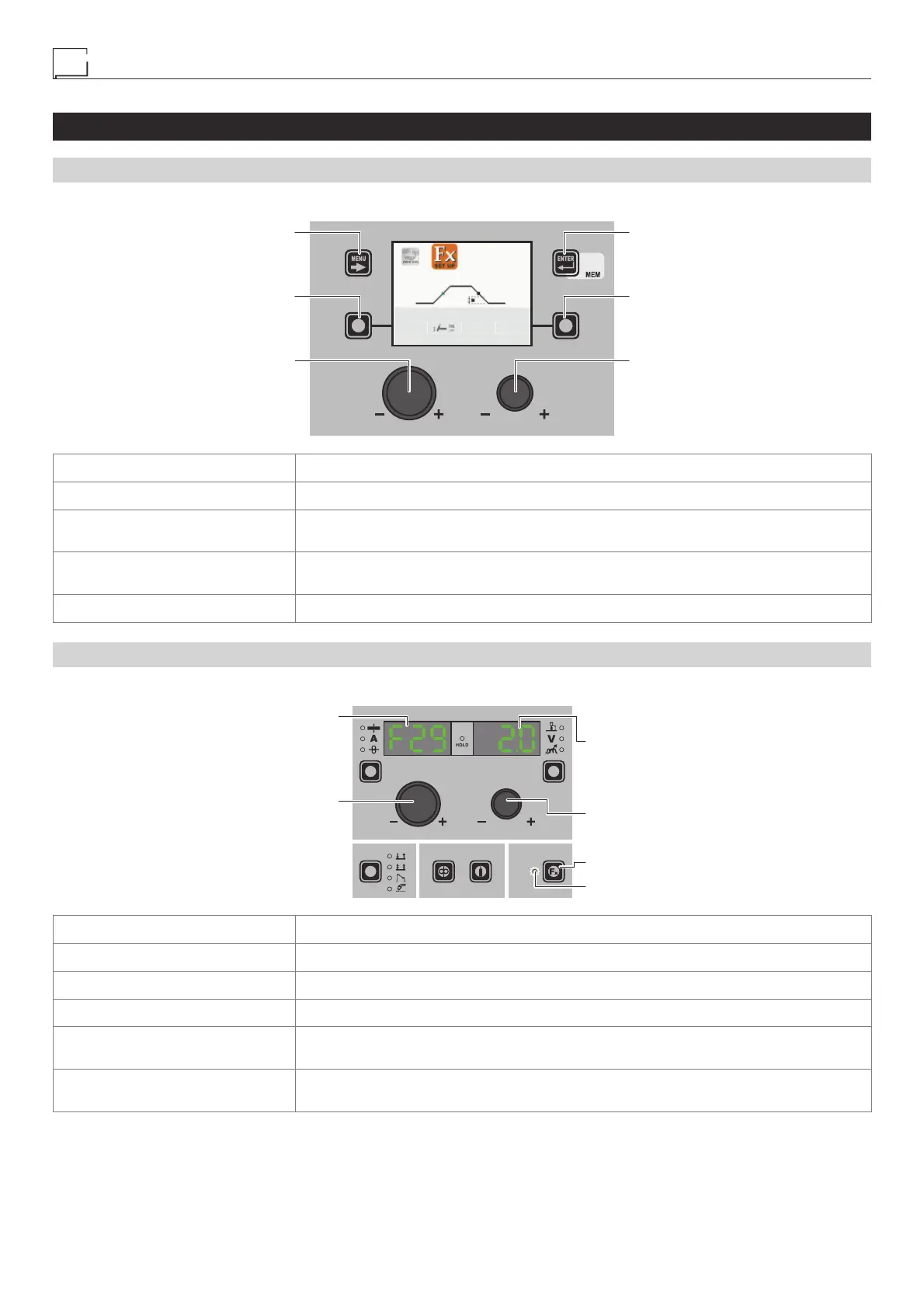

1 - SPECIAL FUNCTIONS Menu (SET UP Fx) TIG LIFT
“DH” / “VS” CONTROL PANEL
To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
SX K
EY DX KEY
DEFAULT
SLOPE UP 2.0 s
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Used to select the various SPECIAL FUNCTIONS (Fx).
ENTER/MEM K
EY
Used to access the PRE-SETTING with the changes made to the SPECIAL FUNCTIONS
(Fx).
DX KEY
If held down for 2 seconds it makes it possible to return the value for the SPECIAL
FUNCTION (Fx) selected to the DEFAULT value.
ENCODER K
NOB - DX Used to change the selected SPECIAL FUNCTION (Fx) value.
“HT5” CONTROL PANEL (not used with DH 32 and VS 32)
To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the SPECIAL FUNCTIONS (FX) KEY.
ENCODER KNOB - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (F
X) KEY
ENCODER KNOB - V
PARAMETER DISPLAY SCREEN - V
PARAMETER DISPLAY SCREEN - A Displays the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - A Used to select the various SPECIAL FUNCTIONS (Fx).
PARAMETER DISPLAY S
CREEN - V Displays the value for the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - V Used to change the selected SPECIAL FUNCTION (Fx) value.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT5 panel and not on the DH/VS panel.
SPECIAL FUNCTIONS (FX) LED
The operator must press the SPECIAL FUNCTIONS (SET UP F
X) KEY for it to light up and be
included in the SPECIAL FUNCTIONS Menu (SET UP Fx).
