PLEASE NOTE: After resetting has been completed, during normal operation of the machine, the VISION SCREEN will still show the
error signal to inform the operator of the event ( ), but this can be removed visually from the display by simply pushing the MENU
KEY. WARNING: This only removes the visual error indication but not the history of what happened!
If an Error NOT automatically resettable arises, to eliminate the alarm state and reinstate correct functioning of the machine,
switch the plant off and then on again, or hold down the DX K
EY.
When it is switched on again, the machine will be working again and the operator can weld again!
PLEASE NOTE: If, when switching on, the error status presents itself again, immediately contact Technical Assistance
Department.

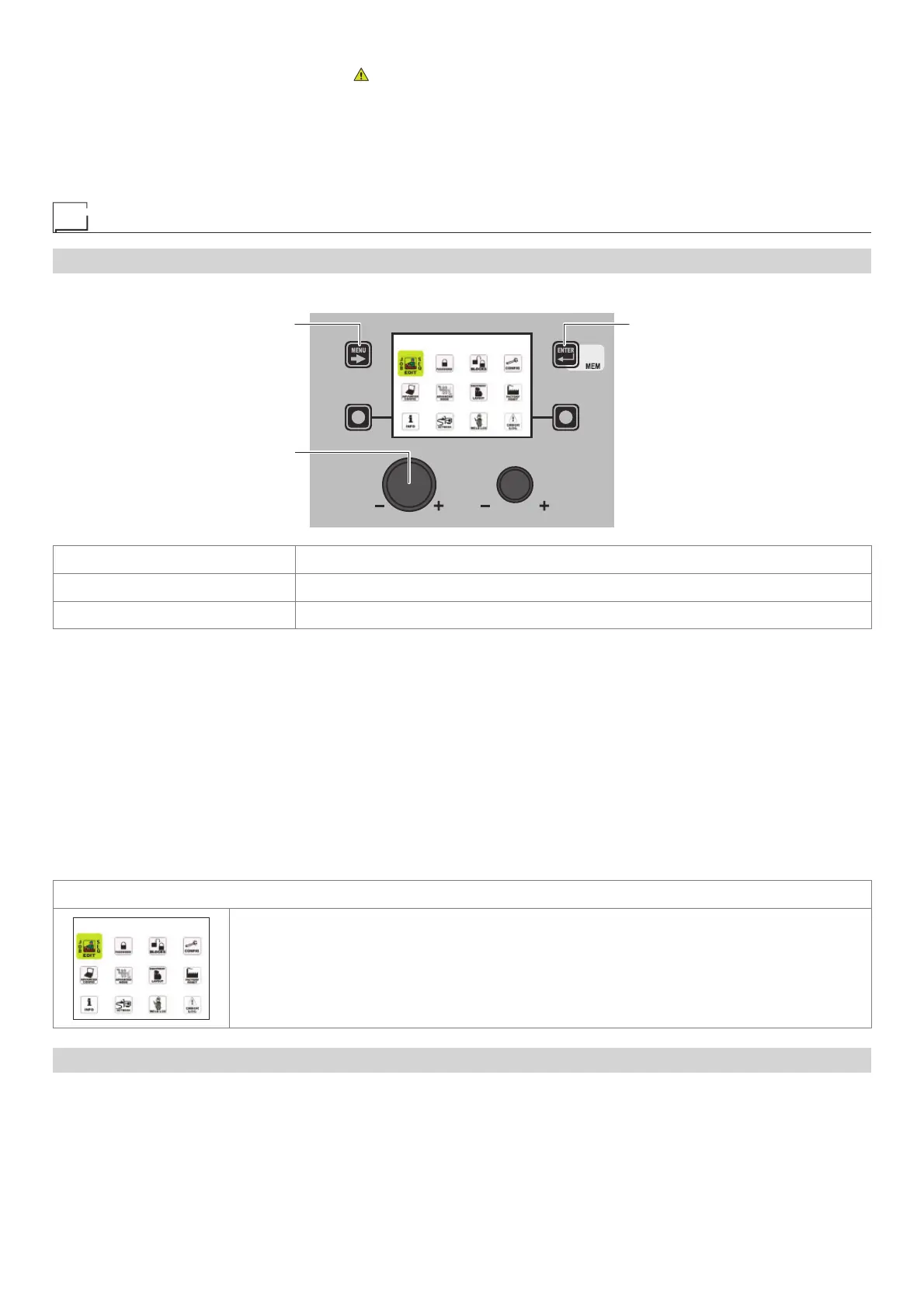

SETUP Menu
“DH” / “VS” CONTROL PANEL
To access the SETUP Menu hold down for at least 5 consecutive seconds the SX KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX
SETUP
MENU KEY Used to exit the SETUP Menu and take the VISION SCREEN back to the entry phase.
ENCODER K
NOB - SX Used to scroll the various icons (sub-menus) in the menu and then select them.
ENTER/MEM K
EY Used to access the menu related to the icon selected.
WARNING:
• It is impossible to weld!
• If the VISION S
CREEN is protected by a password, access to this menu will only be allowed by entering the correct password.
The icons (sub-menus) available and that can be viewed within the SETUP Menu are:
• JOB EDIT
• PASSWORD
• BLOCKS
• CONFIG
• FACTORY RESET
• INFO
• NETWORK
• ERROR LOG
ACCESSING THE SUB-MENUS
SETUP
To access the sub-menus included in the SETUP Menu, you must:
• Turn the ENCODER K
NOB - SX to select the desired icon.
• Push the ENTER/MEM K
EY.
“HT5” CONTROL PANEL (not used with DH 32 and VS 32)
It is not possible to access the SETUP Menu and all the related sub-menus using the “HT5” control panel.
