51
PLEASE NOTE: If, when switching on, the error status presents itself again, immediately contact Technical Assis-
tance Department.
This is necessary so that our technical assistance dept (that must be contacted each time the error messages appear on
the welding machine’s operator interface) is able to resolve the problems more easily and as quickly as possible, thanks to
the reports by the user, and also because, in the meantime the welding machine does not allow the operator to do their work.
To exit the ERROR LOG Menu and go back to the SETUP Menu:
• Push the MENU K
EY.
ADVANCED SETUP Menu

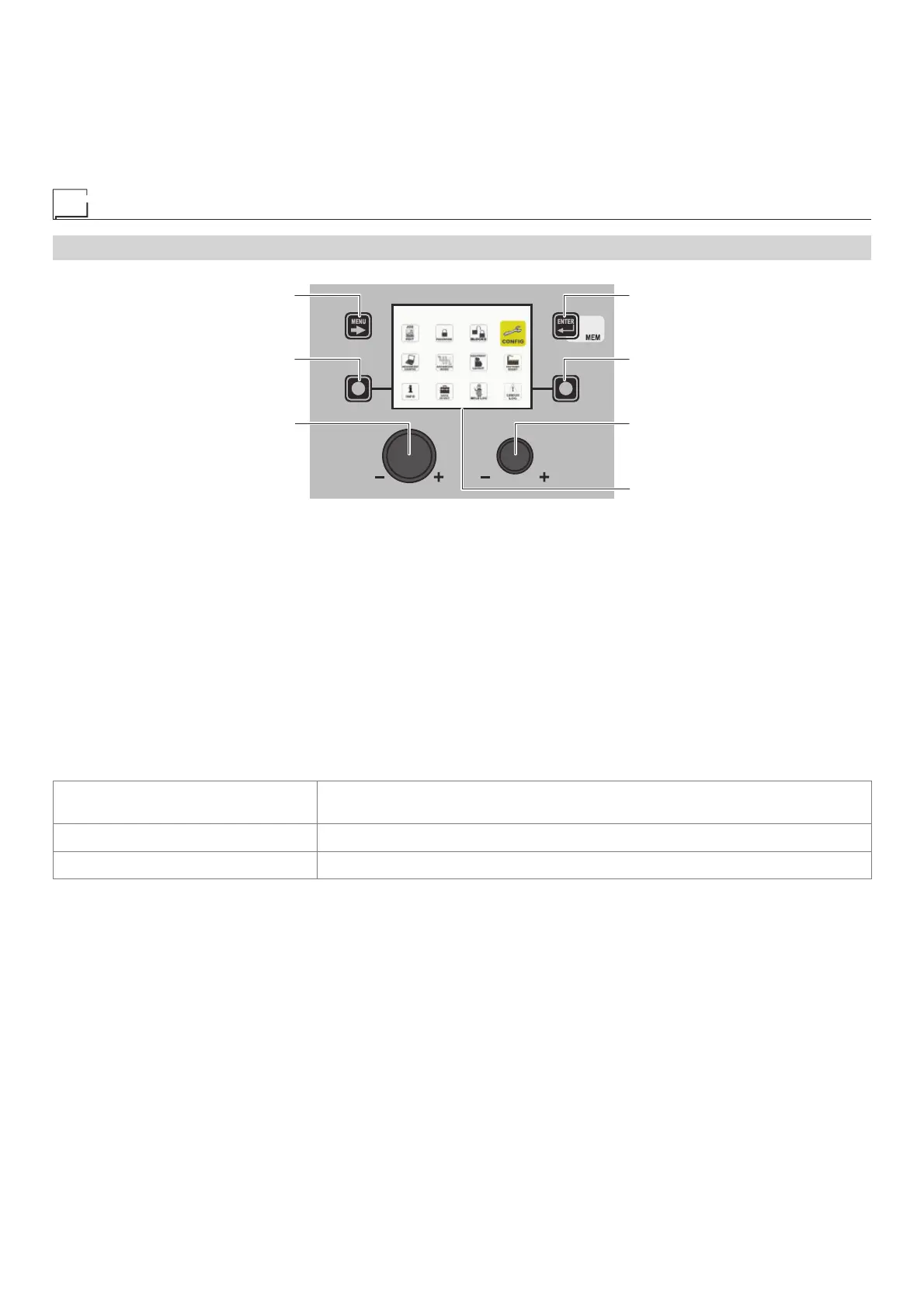

“DH” / “VS” CONTROL PANEL
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION S
CREEN
SX KEY DX KEY
SETUP
To access the ADVANCED SETUP Menu from any point on the control panel:
• Open the SETUP Menu by holding the SX K
EY down for at least 5 consecutive seconds.
•
Open the CONFIG Menu by rotating the ENCODER K
NOB
- SX until the icon required is reached, and then push the ENTER/MEM K
EY
.
•
Access the ADVANCED CONFIGURATION function by rotating the ENCODER K
NOB
- SX and select ACTIVATE by rotating the
ENCODER KNOB - DX.
• Access the ADVANCED WELDING MODE function by rotating the ENCODER K
NOB - SX and select ACTIVATE by rotating the EN-
CODER K
NOB - DX.
• Access the PLANT CONFIGURATION function by rotating the ENCODER K
NOB - SX and select ACTIVATE by rotating the ENCOD-
ER K
NOB - DX.
• Exit the CONFIG Menu by pushing the MENU K
EY.
•
At this stage the SETUP Menu has been transformed into the ADVANCED SETUP Menu and the VISION S
CREEN
displays the
following additional icons:
- ADVANCED CONFIG
- ADVANCED MODE
- EQUIPMENT LAYOUT
- WELD LOG
MENU KEY
Used to exit the ADVANCED SETUP Menu and take the VISION SCREEN back to the
welding phase.
ENCODER K
NOB - SX Used to scroll the various icons (sub-menus) in the menu and then select them.
ENTER/MEM K
EY Used to access the menu related to the icon selected.
WARNING:
• It is impossible to weld!
• If the VISION S
CREEN is protected by a password, access to this menu will only be allowed by entering the correct password.
