CEA DIGITECH vision PULSE 3200 - MIG-MAG, MIG Pulse;Dual Pulse (Vision.pipe, Vision.cold, Vision.power, Vision.ultraspeed Only if Activated); PROGRAM SELECTION Menu (PROGRAM); WELDING MODE SELECTION Menu (MODE)

8
MIG-MAG, MIG pulse/dual pulse (Vision.PIPE, Vision.COLD, Vision.
POWER, Vision.ULTRASPEED only if activated)

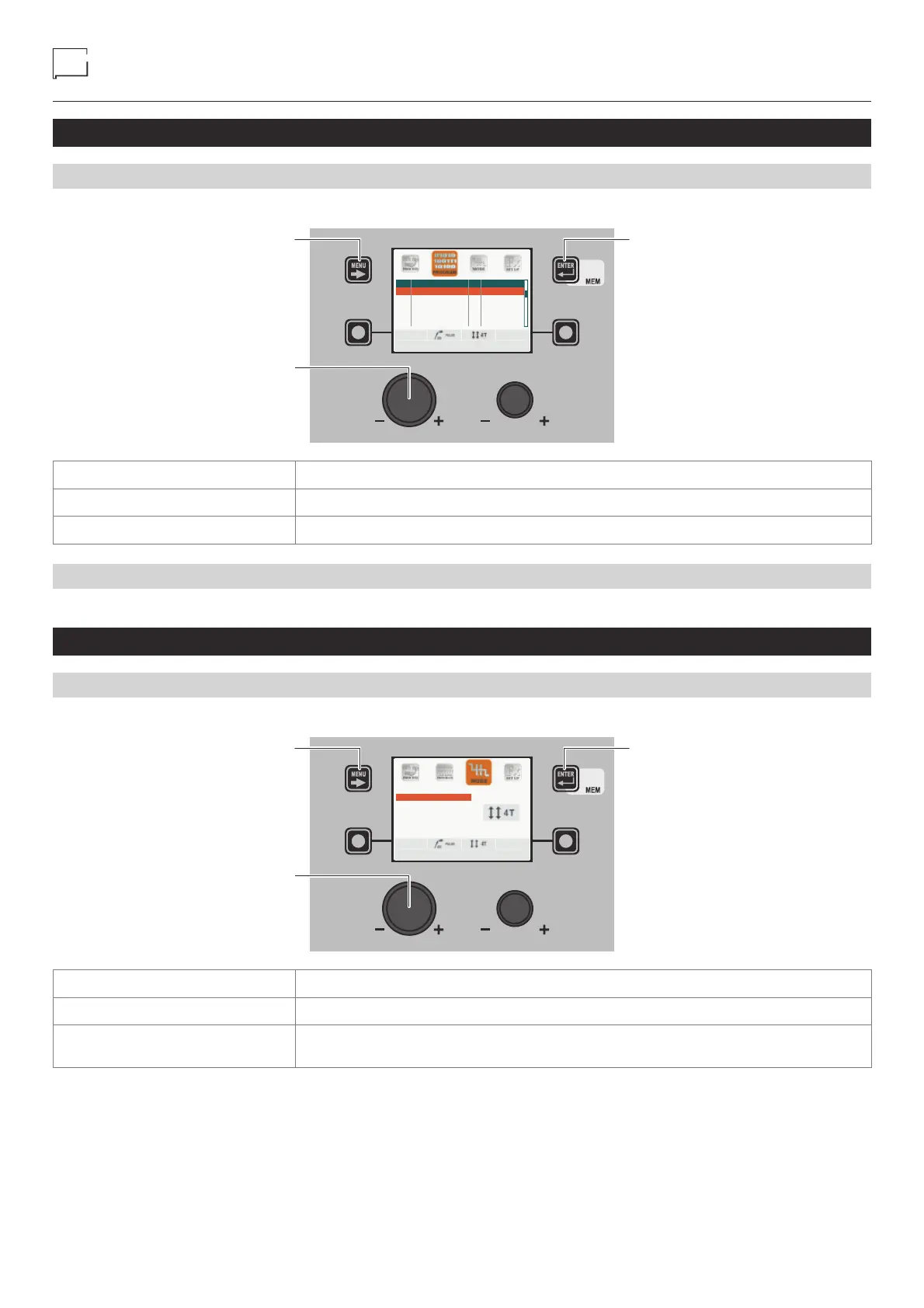

1 - PROGRAM SELECTION Menu (PROGRAM)
“DH” / “VS” CONTROL PANEL
To access the PROGRAM SELECTION Menu (PROGRAM) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX
PRG MATERIAL Ø GAS
1011 Fe G3 SI-1 0.8 Ar 16-20% CO2
1012 Fe G3 SI-1 1.0 Ar 16-20% CO2
1013 Fe G3 SI-1 1.2 Ar 16-20% CO2
1014 Fe G3 SI-1 1.6 Ar 16-20% CO2
1021 Fe G3 SI-1 0.8 Ar 11-15% CO2
1011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2
1/50
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding program.
ENTER/MEM K
EY Used to access PRE-SETTING of the program selected.
“HT5” CONTROL PANEL (not used with DH 32 and VS 32)
It is not possible to access the PROGRAM SELECTION Menu (PROGRAM) via the HT5 control panel.
2 - WELDING MODE SELECTION Menu (MODE)
“DH” / “VS” CONTROL PANEL
To access the WELDING MODE SELECTION Menu (MODE) push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX
TWO STROKE (2T)
FOUR STROKE (4T)
CRATER 2T
CRATER 4T
SPOT WELDING
STITCH WELDING
1011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2
MENU KEY Used to access subsequent menus if there are any.
ENCODER K
NOB - SX Select the welding mode.
ENTER/MEM K
EY
Used to access the PRE-SETTING for the program selected beforehand, in the MODE
chosen.
