2 - JOB/SEQUENCES SELECTION Menu JOB/SEQUENCES
WARNING: All the parameters saved within a JOB/SEQUENCE (including SPECIAL FUNCTIONS (Fx)) can be viewed but not
edited!

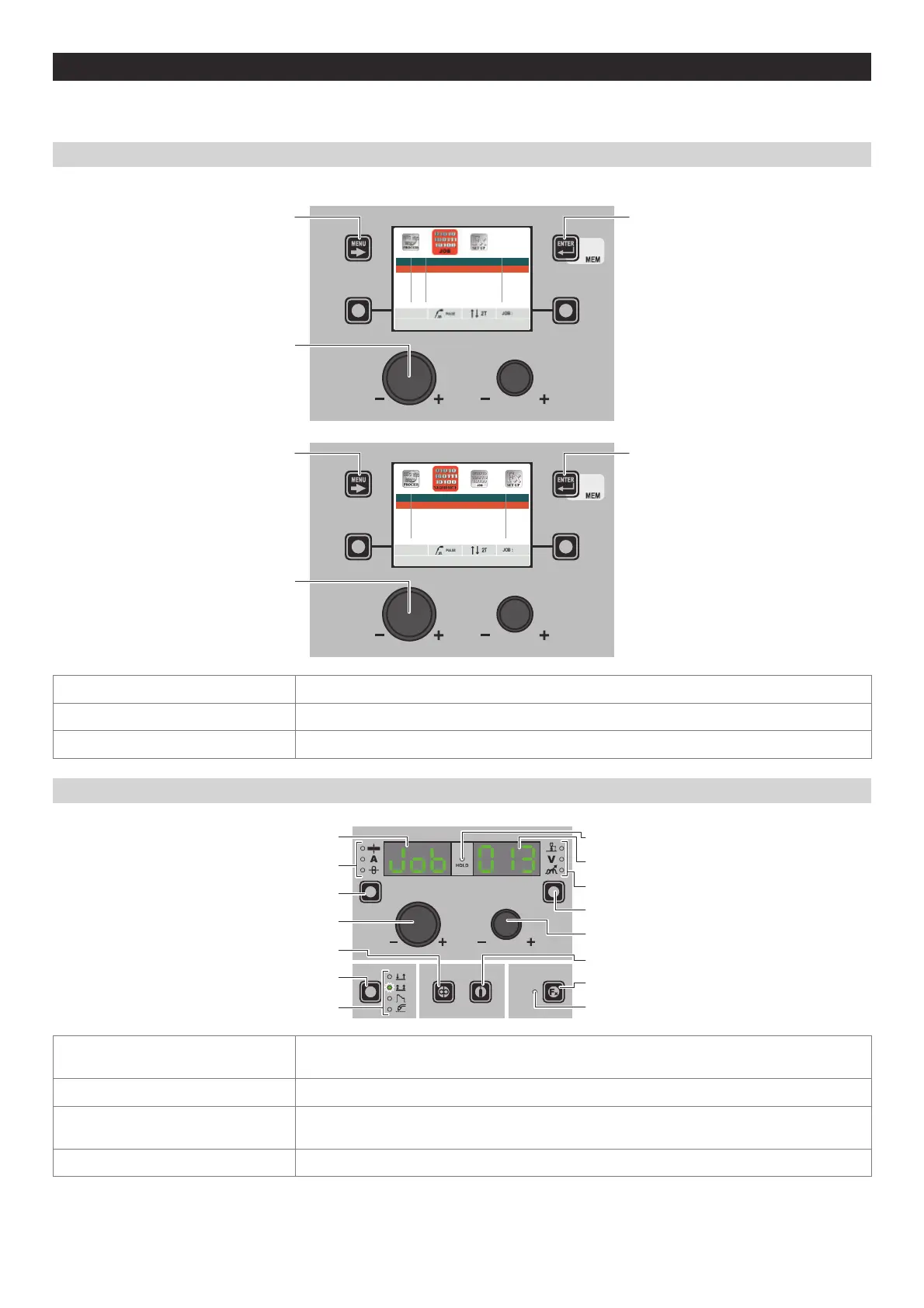

“DH” / “VS” CONTROL PANEL
To access the JOB/SEQUENCES SELECTION Menu push the MENU KEY.
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX
JOB PRG PROCESS SYN
001 1011 MIG PULSE 100A
002 7011 VISION.ULTRASPEED 124A
003 2011 MIG DUAL PULSE 100A
004 1011 MIG PULSE 240A
005 1011 MIG PULSE 53A
0011/5
1011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2
MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX
SEQ NAME # JOB
001 Welding sequence 2
002 Welding sequence 1 4
004 Welding sequence 2 4
006 Welding sequence 2 4
0011/4
1011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2
MENU KEY Used to access subsequent menus.
ENCODER K
NOB - SX Used to scroll and select a JOB/SEQUENCES.
ENTER/MEM K
EY Used to select the JOB/SEQUENCE displayed.
“HT5” CONTROL PANEL (not used with DH 32 and VS 32)
WELDING MODE SELECTION LED
WELDING MODE SELECTION K
EY
WIRE KEY
ENCODER KNOB - A
PARAMETER SELECTION K
EY - A
PARAMETER SELECTION LED - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (F
X) LED
SPECIAL FUNCTIONS (FX) KEY
GAS KEY
ENCODER KNOB - V
PARAMETER SELECTION K
EY - V
PARAMETER SELECTION LED - V
PARAMETER DISPLAY SCREEN - V
HOLD Function LED
PARAMETER DISPLAY SCREEN - A
Shows the JOB term or value of the parameter indicated by the PARAMETER SELECTION LED -
A.
PARAMETER SELECTION LED - A The LED unit shows the welding parameter selected using the PARAMETER SELECTION K
EY - A.
PARAMETER SELECTION K
EY - A
Scrolls the active parameters in succession, based on the type of welding process saved in
the JOB selected.
WIRE K
EY Activates loading of the wire.
