ACCESSING THE SUB-MENUS
SETUP
To access the sub-menus included in the ADVANCED SETUP Menu, you must:
• Turn the ENCODER K
NOB - SX to select the desired icon.
• Push the ENTER/MEM K
EY.
“HT5” CONTROL PANEL (not used with DH 32 and VS 32)
It is not possible to access the ADVANCED SETUP Menu and all the related sub-menus using the “HT5” control panel.
ADVANCED CONFIG ADVANCED SETUP Menu
The purpose of this menu is to allow the operator to know the actual working time and operation of the welding machine, to con-
figure the ENERGY SAVING mode in the best way to allow the best energy saving on the welding plant, and to be able to enable
an analogue output on the welding plant that can be used for connecting total remote controls equipped with automatic self-rec-
ognition.
To access the ADVANCED CONFIG Menu from the ADVANCED SETUP Menu:
• Turn the ENCODER K
NOB - SX to select the desired icon.
• Push the ENTER/MEM K
EY.

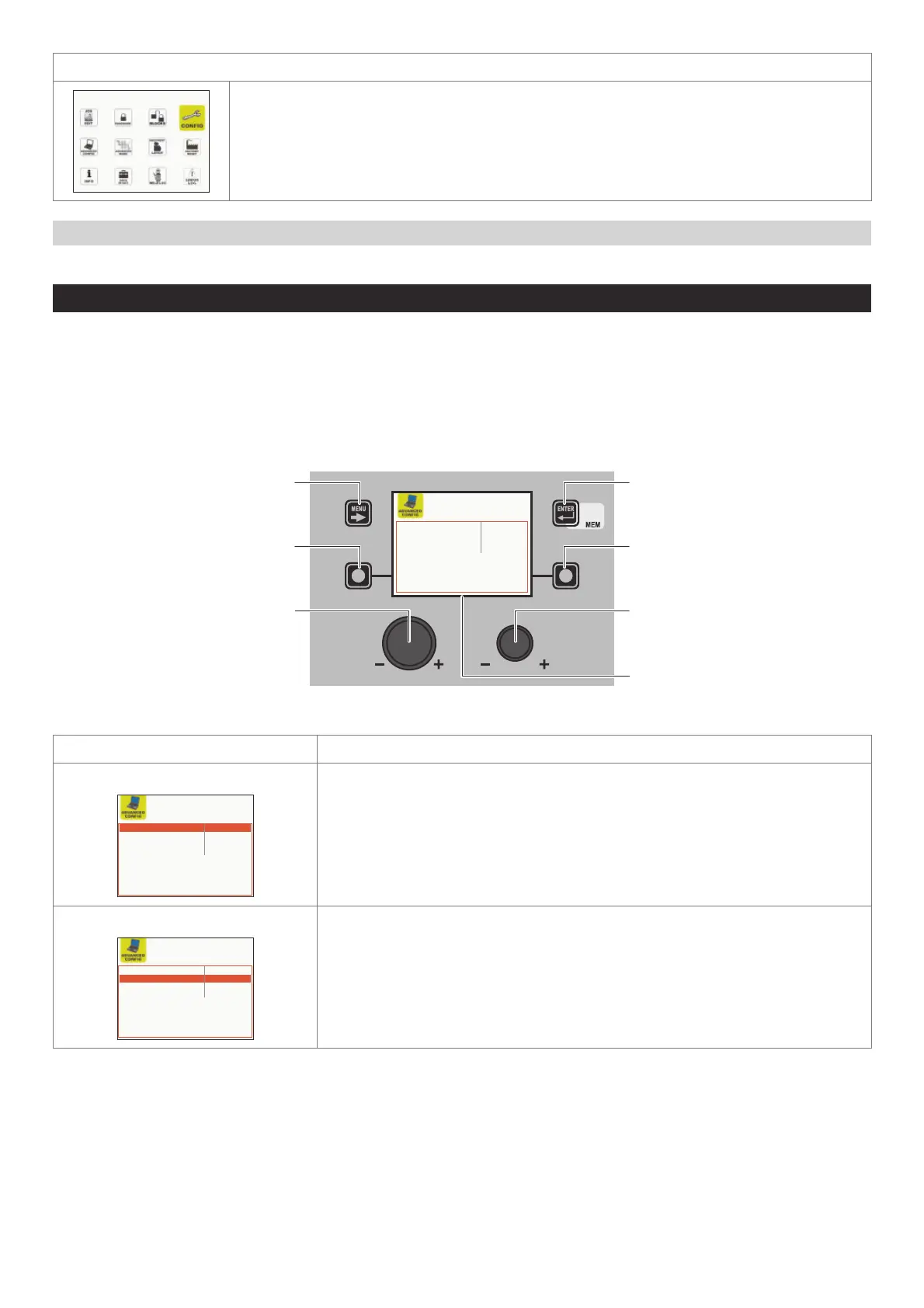

MENU KEY ENTER/MEM KEY
ENCODER KNOB - SX ENCODER KNOB - DX
VISION SCREEN
SX KEY DX KEY
ARC ON TIMER 0 gg. 0:00:00
TIMER WELDER ON 0 gg. 0:00:00
ENERGY SAVING STANDARD
ERROR FILTER TIME 300 ms
Within the ADVANCED CONFIG Menu the operator can view:
Advanced function Description
ARC ON TIMER
ARC ON TIMER 0 gg. 0:00:00
TIMER WELDER ON 0 gg. 0:03:19
ENERGY SAVING STANDARD
ERROR FILTER TIME 300 ms
Indicates the actual time the machine is used for welding.
WARNING: This time can only be zeroed by means of a TOTAL RESET (see the relevant
paragraph) of the welding plant.
TIME WELDER ON
ARC ON TIMER 0 gg. 0:00:00
TIMER WELDER ON 0 gg. 0:12:35
ENERGY SAVING STANDARD
ERROR FILTER TIME 300 ms
Indicates the actual time the machine works, even when the screen saver is activated.
WARNING: This time can only be zeroed by means of a TOTAL RESET (see the relevant
paragraph) of the welding plant.
WARNING: The content of the part of the menu described above is for information only, the operator cannot make any changes,
they can only view and read the information available on the screen.
