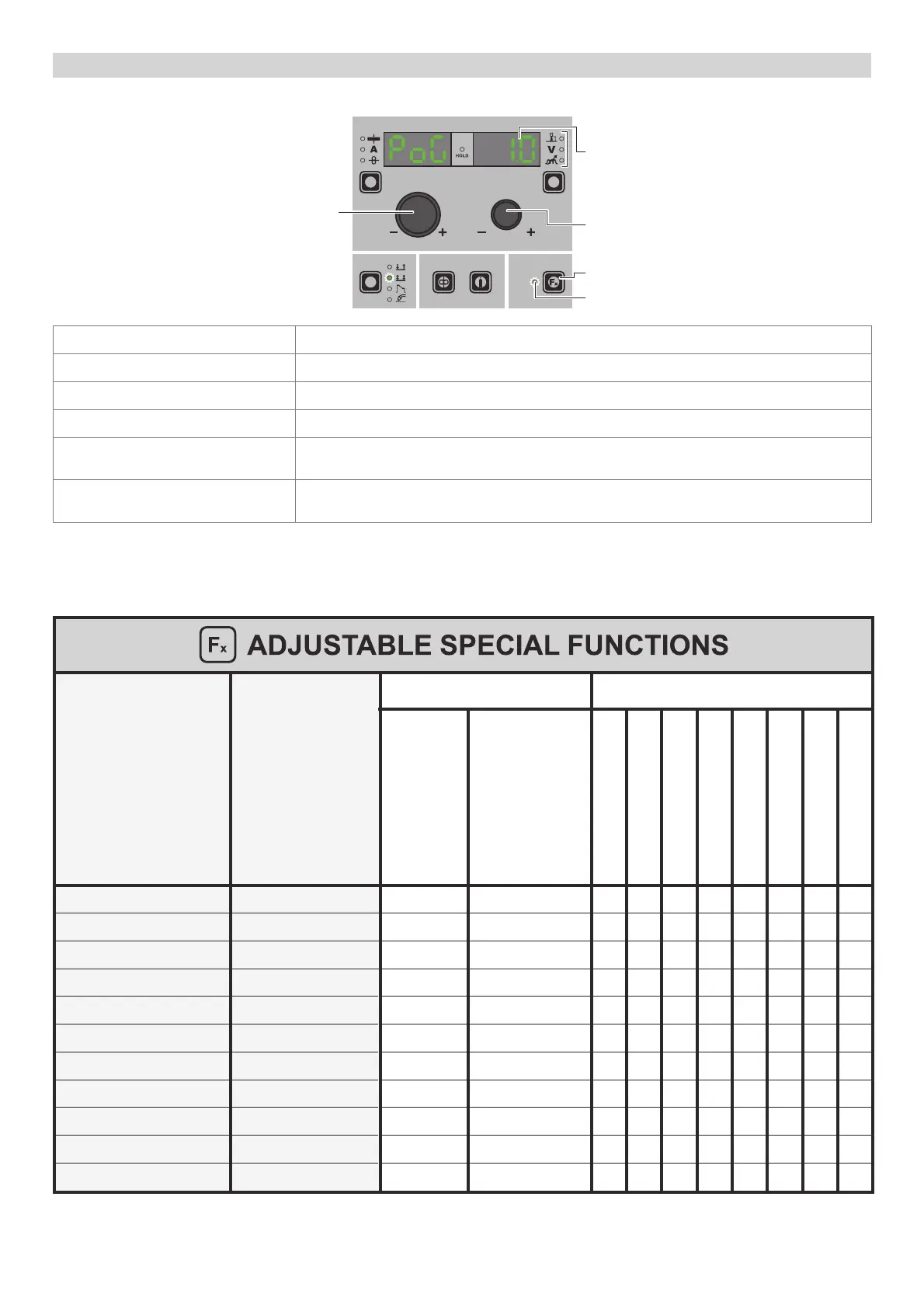

“HT5” CONTROL PANEL (not used with DH 32 and VS 32)
To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the SPECIAL FUNCTIONS (FX) KEY.
ENCODER KNOB - A
SPECIAL FUNCTIONS (F
X) LED
SPECIAL FUNCTIONS (FX) KEY
ENCODER KNOB - V
PARAMETER DISPLAY SCREEN - V
PARAMETER DISPLAY SCREEN - A Displays the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - A Used to select the various SPECIAL FUNCTIONS (Fx).
PARAMETER DISPLAY S
CREEN - V Displays the value for the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - V Used to change the selected SPECIAL FUNCTION (Fx) value.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT5 panel and not on the DH/VS panel.
SPECIAL FUNCTIONS (FX) LED
The operator must press the SPECIAL FUNCTIONS (SET UP F
X) KEY for it to light up and be
included in the SPECIAL FUNCTIONS Menu (SET UP Fx).
The SPECIAL FUNCTIONS (Fx) related to the MIG-MAG synergic, MIG pulsed, MIG double pulsed, Vision.PIPE, Vision.COLD,
Vision.POWER, and Vision.ULTRASPEED processes, correspond to the feeder (when fitted) as follows:
Table A
Special function
PARAMETER DISPLAY
Screen - A
PARAMETER DISPLAY Screen - V Welding mode
Default Range TWO STROKE (2T) FOUR STROKE (4T) CRATER 2T CRATER 4T SPOT WELDING STITCH WELDING CYCLE STANDARD CYCLE ADVANCED
PRE GAS PrG 0.1s (0.0 - 2.0)s ●●●●●●●●
STARTING SPEED StS 0 -30 - +30 ●●●●●●●●
HOT START Hot 0 -30 - +30 ●●●●●●●●
STITCH TIME F05 1.0s (0.1 - 20.0)s ●
STITCH PAUSE F06 1.0s (0.1 - 20.0)s ●
SPOT TIME F07 3.0s (0.1 - 20.0)s ●
INITIAL CURRENT F08 20% -50% - +100% ●● ●●
INITIAL ARC LENGTH F09 0 -30 - +30 ● (*) ● (*) ● (*) ● (*)
INITIAL CRATER TIME F10 1.0s (0.0 - 20.0)s ●
INITIAL SLOPE F11 1.0s (0.0 - 20.0)s ●● ●●
FINAL SLOPE F12 1.0s (0.0 - 20.0)s ●● ●●
