18

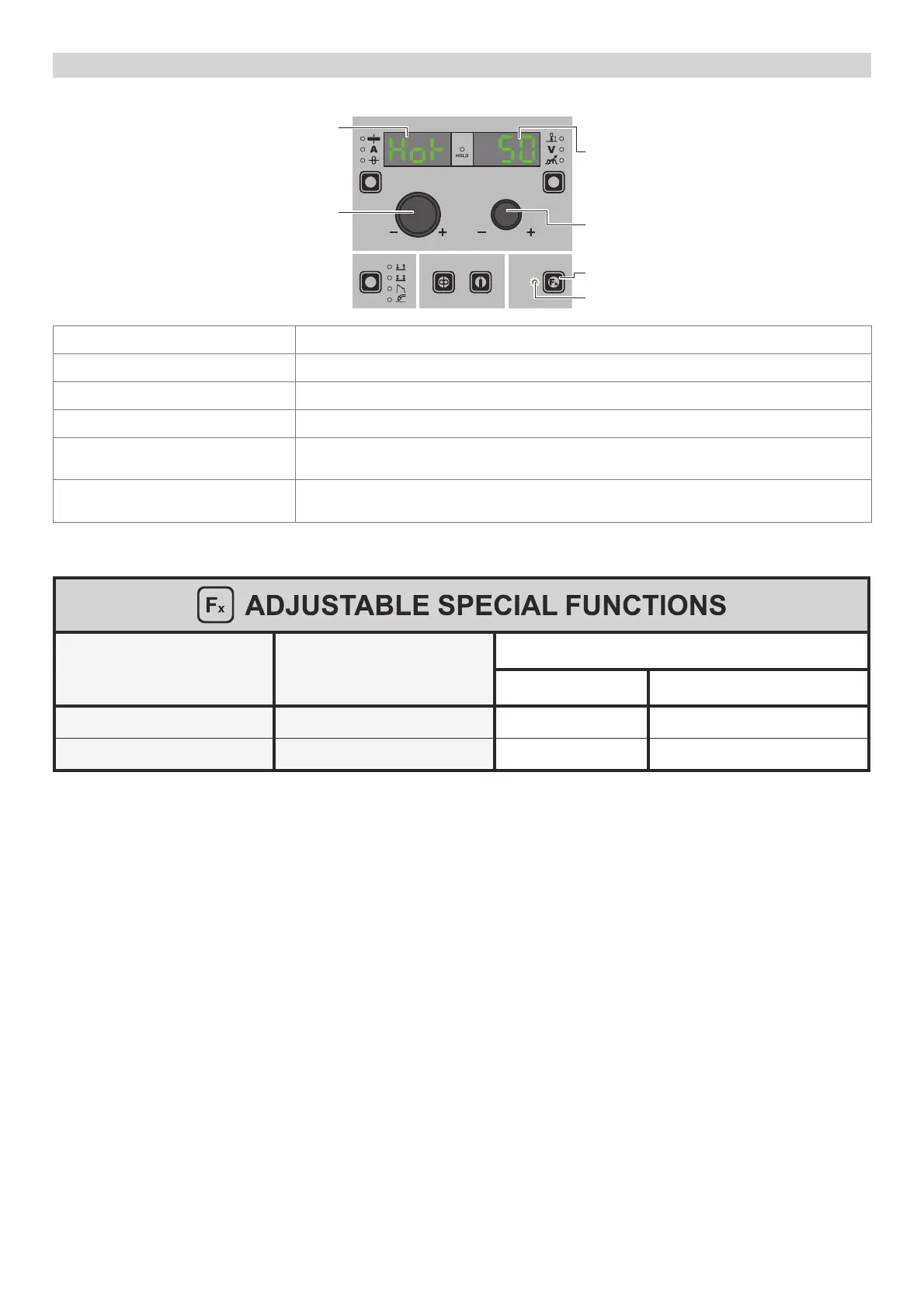

“HT5” CONTROL PANEL (not used with DH 32 and VS 32)
To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the SPECIAL FUNCTIONS (FX) KEY.
ENCODER KNOB - A
PARAMETER DISPLAY S
CREEN - A
SPECIAL FUNCTIONS (FX) LED
SPECIAL FUNCTIONS (F
X) KEY
ENCODER KNOB - V
PARAMETER DISPLAY SCREEN - V
PARAMETER DISPLAY SCREEN - A Displays the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - A Used to select the various SPECIAL FUNCTIONS (Fx).
PARAMETER DISPLAY S
CREEN - V Displays the value for the selected SPECIAL FUNCTION (Fx).
ENCODER K
NOB - V Used to change the selected SPECIAL FUNCTION (Fx) value.
SPECIAL FUNCTIONS (F
X) KEY
Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP
Fx) on the HT5 panel and not on the DH/VS panel.
SPECIAL FUNCTIONS (FX) LED
The operator must press the SPECIAL FUNCTIONS (SET UP F
X) KEY for it to light up and be
included in the SPECIAL FUNCTIONS Menu (SET UP Fx).
The SPECIAL FUNCTIONS (Fx) related to the MMA process correspond as follows to those on the wire feeder:
Special function PARAMETER DISPLAY Screen - A
PARAMETER DISPLAY Screen - V
Default Range
HOT START Hot 50 (0 - 100)
ARC FORCE ArC 50 (0 - 100)
WARNING:
• It is possible to access editing of the SPECIAL FUNCTIONS (Fx) during welding.
•
Some of the values edited will be used immediately by the operator, while others will be active from when the next welding
task begins.
• The HOLD function is not active within the SPECIAL FUNCTIONS Menu (SET UP Fx).
