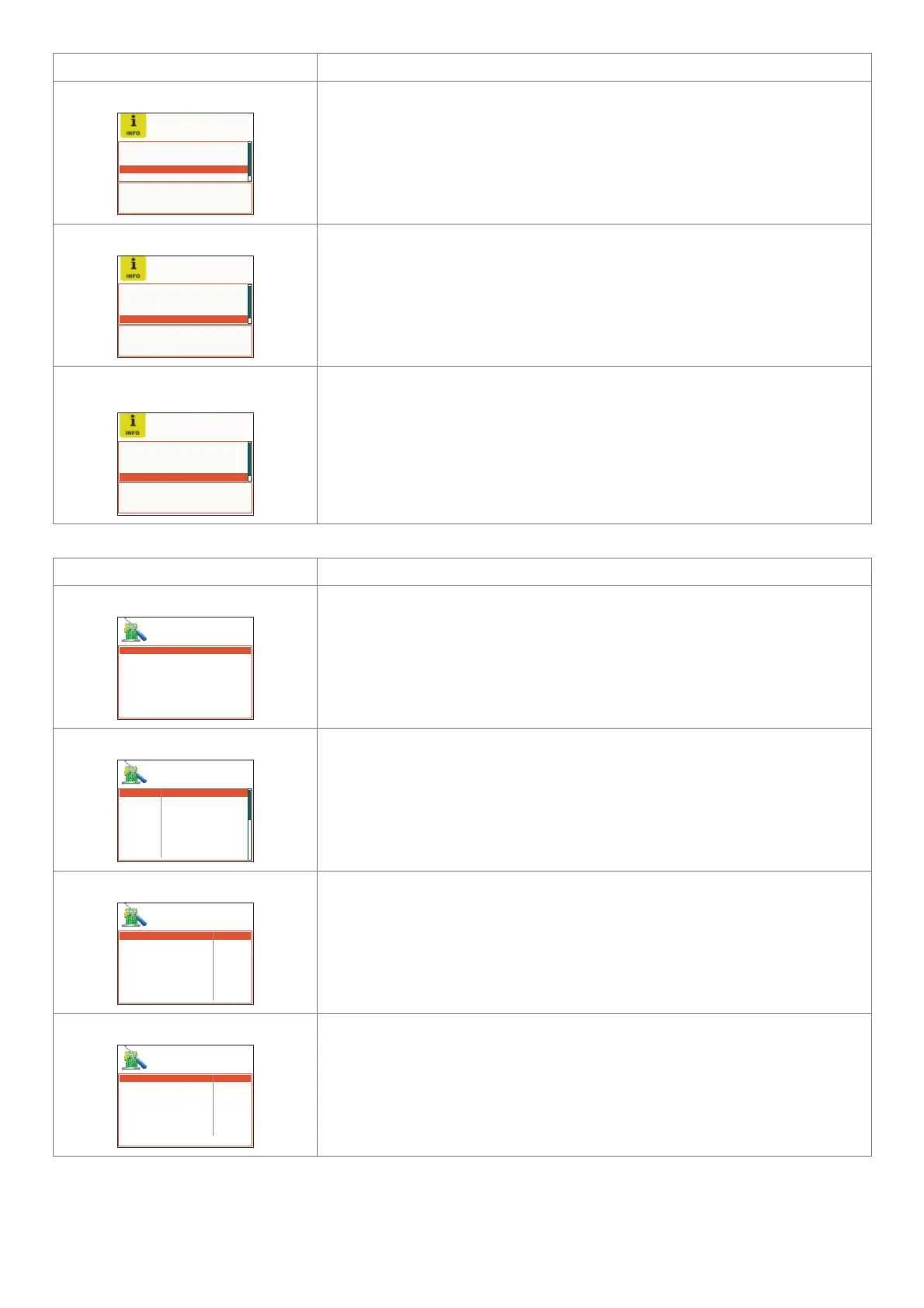

Software Description
ROBOT INTERFACE SW. VERS.
POWER SOURCE SW. VERS.
WIRE FEEDER SOFTWARE VER. 1
WIRE FEEDER SOFTWARE VER. 2
ROBOT INTERFACE SW. VERS.
S/N
H02-01.00
F06-01.01
This indicates the software version loaded in the robot interface board, if applicable.
S/N
POWER SOURCE SW. VERS.
WIRE FEEDER SOFTWARE VER. 1
WIRE FEEDER SOFTWARE VER. 2
ROBOT INTERFACE SW. VERS.
S/N
FX00204904080100
This indicates the serial number for the microprocessor contained in the digital interface
board. This is the serial number required for loading special functions at additional cost.
NETWORK BRIDGE SOFTWARE
VERSION
WIRE FEEDER SOFTWARE VER. 1
WIRE FEEDER SOFTWARE VER. 2
ROBOT INTERFACE SW. VERS.
S/N
NETWORK BRIDGE SOFTWARE VERSION
TNI-300415-BETA-0003
DID0 10040204
DID1 106F402E
DC0 017F007F
This indicates the network interface software version loaded in the board. There are also
identity codes that are only required for assistance, and can be requested if the network
malfunctions.
A diagnostics menu can also be accessed by holding down the DX KEY and the DX KEY for three seconds.
Software Descrizione
DIAGNOSTICS MENU
CAN BUS STATUS
I/O STATUS
REMOTE CONTROL
ENABLED OPTIONS
DIAGNOSTICS
This menu has 4 diagnostics windows:
• CAN BUS STATUS
• I/O STATUS
• REMOTE CONTROLS STATUS
• ENABLED OPTIONS
CAN BUS STATUS
Rx packets 98288
Tx packets 59392
Rx FIFO0 98290
Tx errors 0
Rx overruns 0
REC 0
TEC 0
REC max. 0
TEC max. 0
CAN BUS STATUS
Number of packages transmitted and received (Rx.. and TX..) and the number of
transmission errors.
I/O STATUS
FAN OFF
WATER COOLER PUMP OFF
E0.3 UNDER VOLTAGE OFF
E0.2 OVER VOLTAGE OFF
E0.4 OVER CURRENT OFF
T°C THERMAL PROTECTION OFF
VRD OFF
WATER COOLER PRESENCE ON
COOLING PLANT PRESSURE OFF
I/O STATUS
The status of the inputs and outputs on the generator.
REMOTE CONTROLS STATUS
ANALOGIC INPUT 1 0
ANALOGIC INPUT 2 0
ANALOGIC INPUT 3 0
ANALOGIC INPUT 4 0
TORCH TRIGGER INPUT OFF
UP TRIGGER INPUT OFF
DOWN TRIGGER INPUT OFF
AUX-IN OFF
REMOTE CONTROL
The status of the inputs:
• ANALOGUE INPUT 1 (synergic remote control input)
• ANALOGUE INPUT 2 (arc length remote control input)
• ANALOGUE INPUTS 3 & 4 not connected
• TORCH BUTTON
• UP AND DOWN BUTTONS on the torch
• AUX-IN not connected
(continua)
