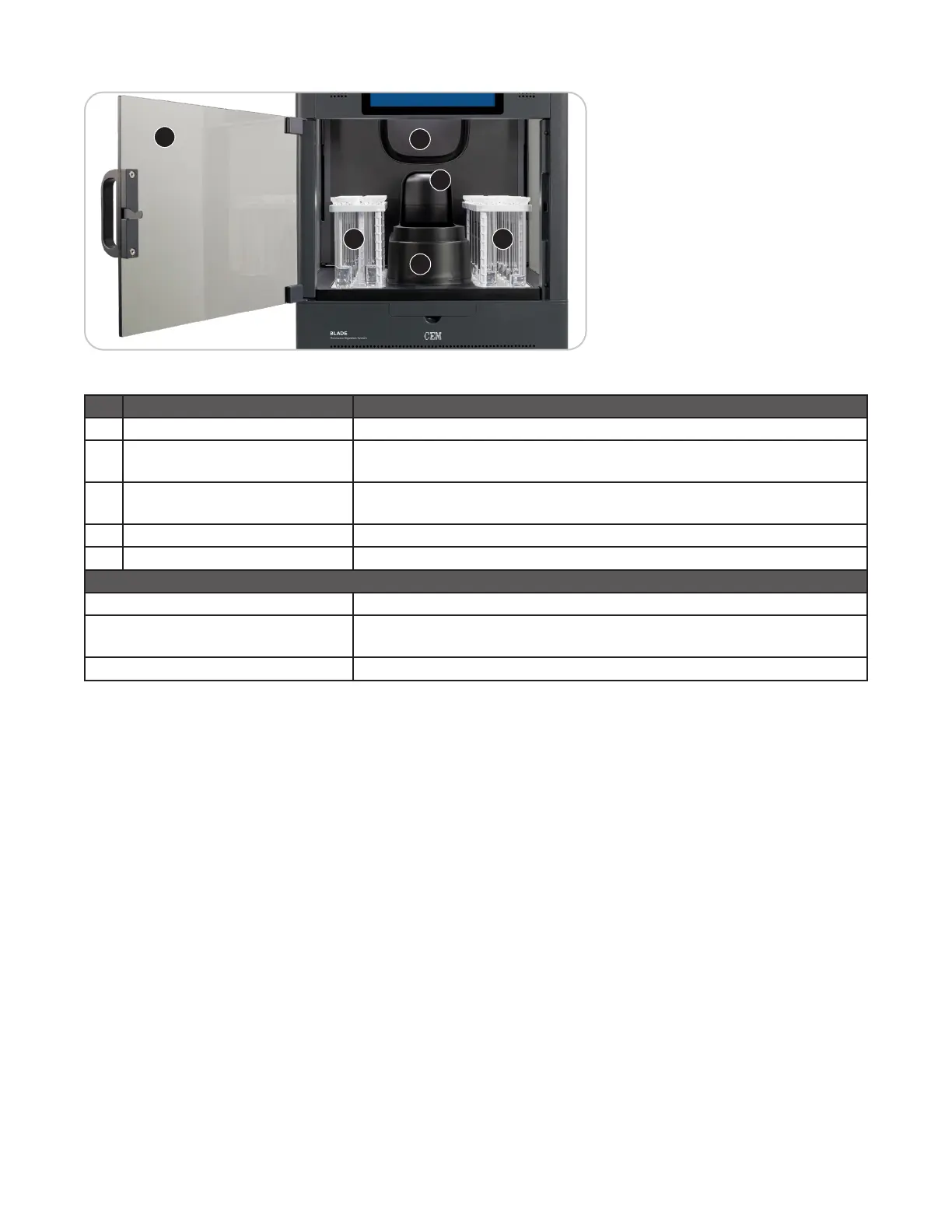

Instrument Overview
Fume Cabinet
1
2
3
4
5
3
Item Description
1 Door Provides access to the fume cabinet
2 Attenuator Port Provides access to the microwave cavity while the interlocks prevent microwave
emission when the attenuator port is not properly installed.
3 Racks Holds vessels during sample preparation and is then inserted into the fume cabinet
before digestions begin.
4 APD Automated pressure device.
5 Exhaust Cover Removes fumes from the fume cabinet.
Not Pictured
Automation/Autosampler Provides fully automated reaction vessel handling.
LED’s Provides light to fume cabinet. LED’s are blue when door is closed and white when the
door is open.
Temperature Sensor Volume-independent sensor that accurately measures the temperature during the run.
AutoCal
The AutoCal is an optional temperature calibration device. A CEM representative will need to verify or calibrate the
temperature sensor if the AutoCal option is not available. See Routine Maintenance for a suggested maintenance
schedule.
