41System Repacking
12.4. Using 2 people, place the BLADE onto the foam, making sure the unit aligns with the cutout.
12.5. Neatly place the plastic sheeting over the top of the unit.
12.6. Slide the unit and foam into the box.
12.7. Close the remaining side of the inner carton using tape.

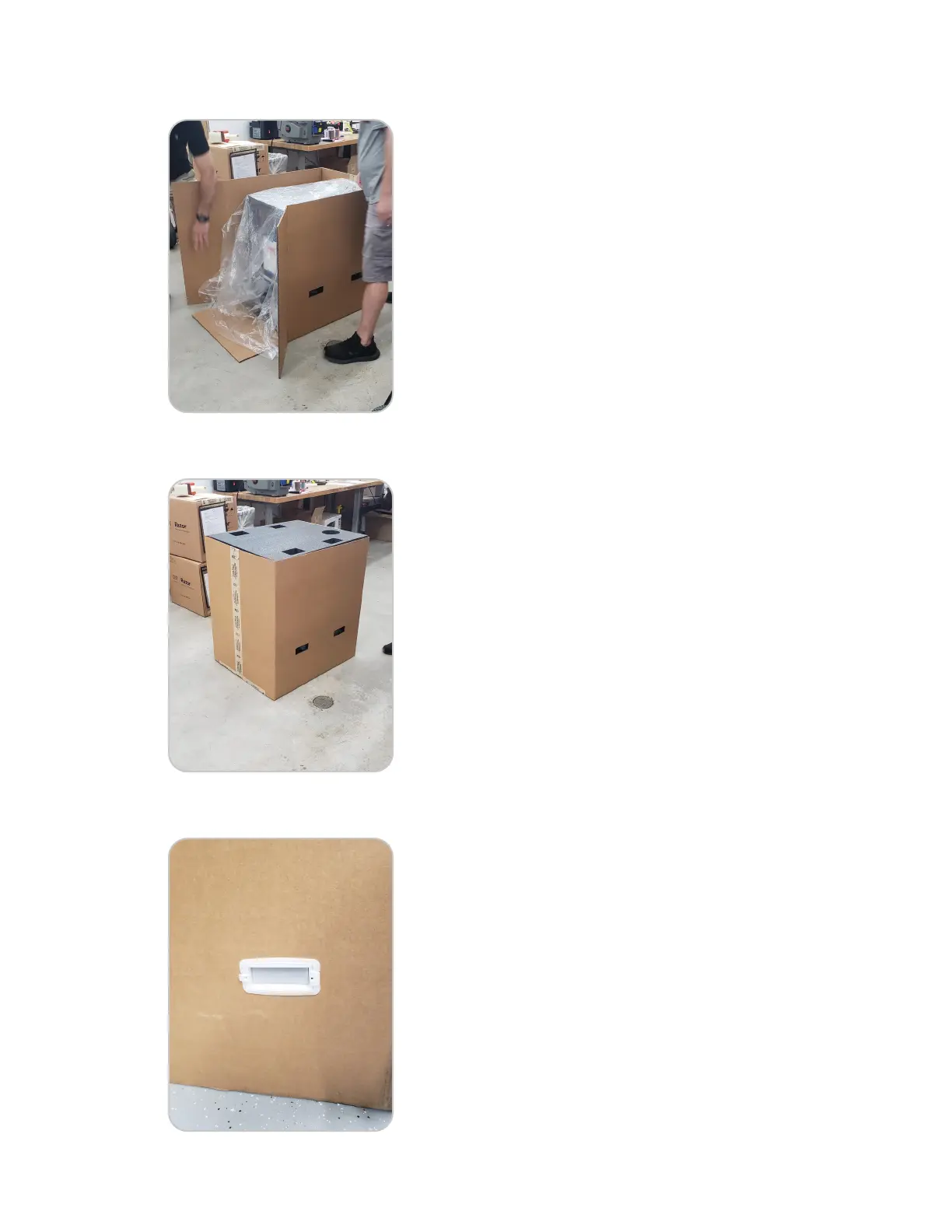

12.8. With the circular cutout over the units exhaust, place the top foam on top of the unit.
12.9. Place the outer carton over the unit, ensuring the cutouts line up with the inner carton.
12.10. Insert the shipping clamps in the 4 cutouts.
