Evolution® IP-20LH Installation Guide
Ceragon Proprietary and Confidential Page 61 of 101

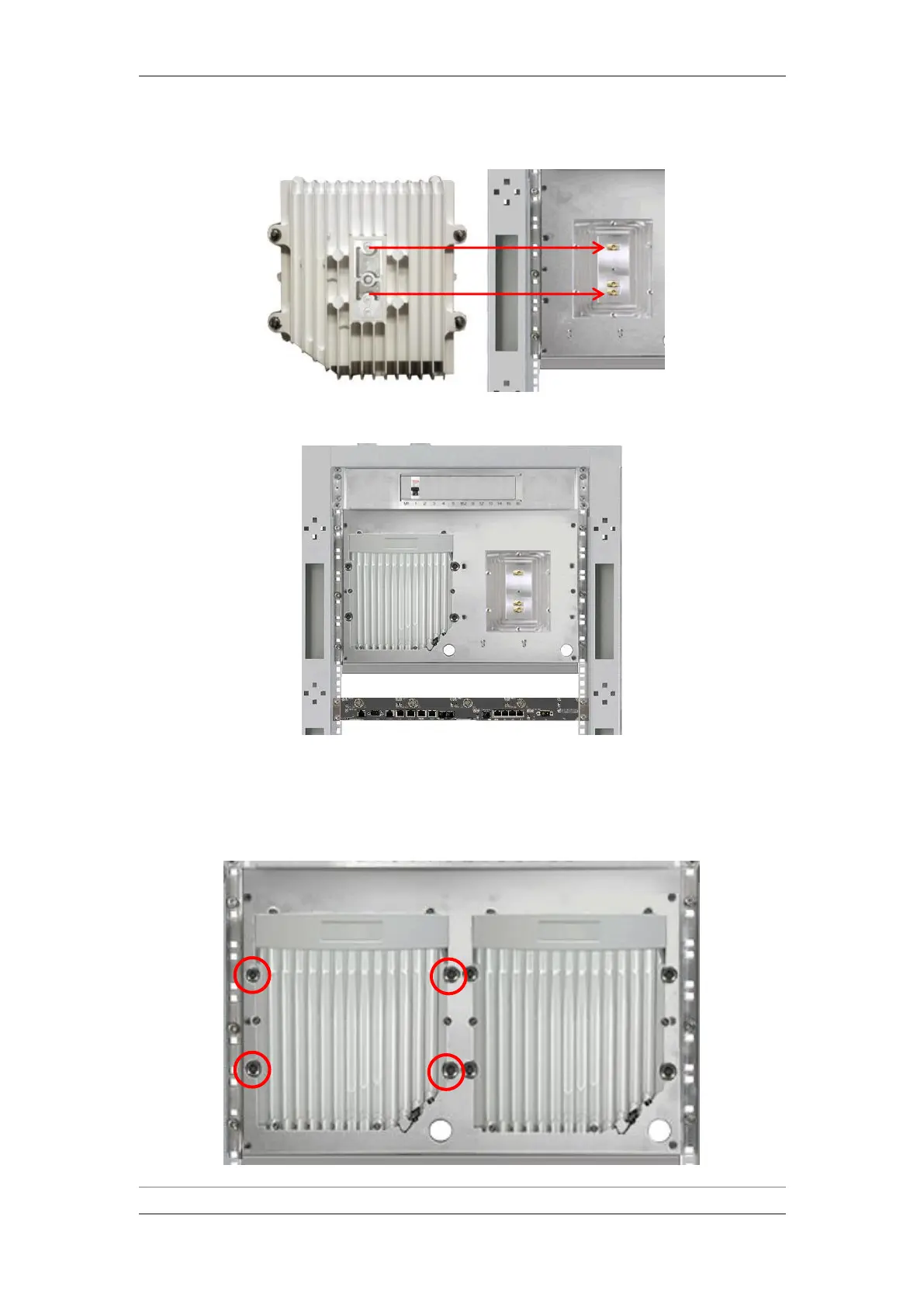

Mating the connectors of the XCVR with the sockets on the mounting plate
XCVR Mounted
2 Secure the XCVR to the mounting plate by tightening the four screws
evenly, until the unthreaded part of the screws are seated towards the
plate.
XCVR Screws
