3 Mount another XCVR if necessary. For detailed instructions, refer to XCVR
Expansion on page 77.

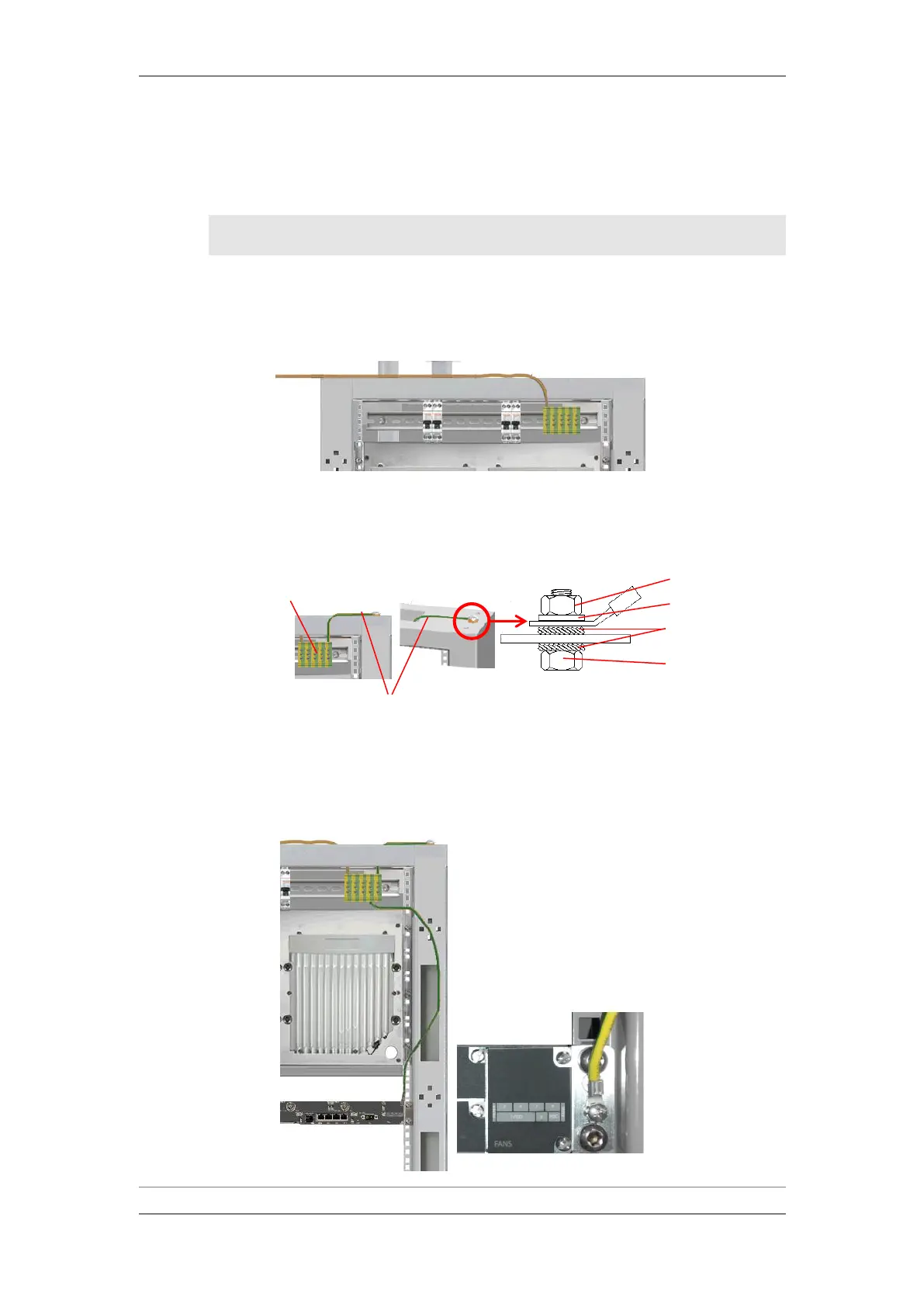

4 Earth the equipment rack with cable part number UWML6505, as follows:
Note: If installing in an existing rack, verify the current earthing
cable is at least 10mm2 (AWG7).
i Remove the cable lug from one end of the cable and strip that end.
ii Connect the cable to the earth terminal block.
XCVR Earthing Cable
5 Connect an earth jumper between the earth terminal block and the top of
the rack to ensure good earthing of the rack.
XCVR Earthing Jumper
6 Using the IDU earthing cable, part number UWML6760, connect the
earthing terminal at the top right corner of the IDU chassis to the earth
terminal block.
IDU Chassis Earthing Cable
