Cessna 177 SERIES Service Manual

1/2
6
Detail A
Detail B
1 4
C6
SERIALS 17701165 THRU
17701261
Detail C C
1. Duct
6. Air
Valve
10. Bracket
2. Clamp
7.
Nozzle
11. Cabin
Vent
Air Box
3. Air
Box Assembly
8.
Brace
12.
Console
Cover
4.
Divider
9. Console
Support
13.
Glass-Fiber
Shield
5. Cover
14. Gasket

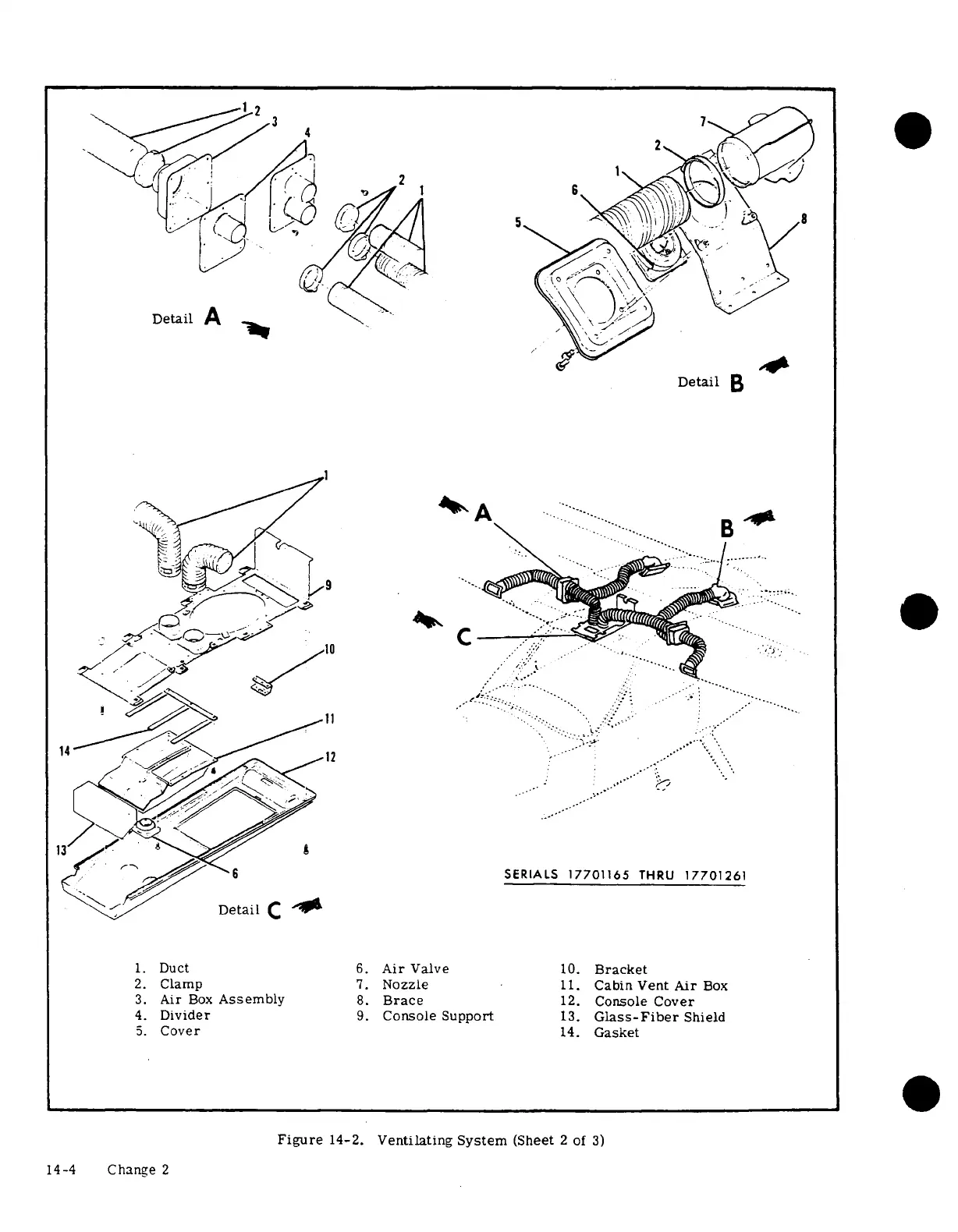

Figure
14-2.
Ventilating
System
(Sheet 2
of 3)
14-4 Change 2
