Cessna 177 SERIES Service Manual

A
, 2 2B
;=--/..
----
14
//
D
/~
'"
12
-A
Detail A
THRU 1970
MODELS ONLY
13 .,
%* BEGINNING WITH
17 M1973 MODELS
2 2
1971 MODELS
&
ON
1. Electrical Leads 12. Lens Retainer
2. Cap
13. Bulb
3. Washer
14. Lens
4. Insulated Washer 15. Mount
5. Spring 16. Tail Navigation Light
6. Insulator
17. Spacer
7. Wing Tip 18. Wing Tip Rib
8. Wing Navigation Light 19. Power Supply
9.
Flash Tube Assembly
20. Ground
Wire
10. Seal 21. Gasket
11. Screw

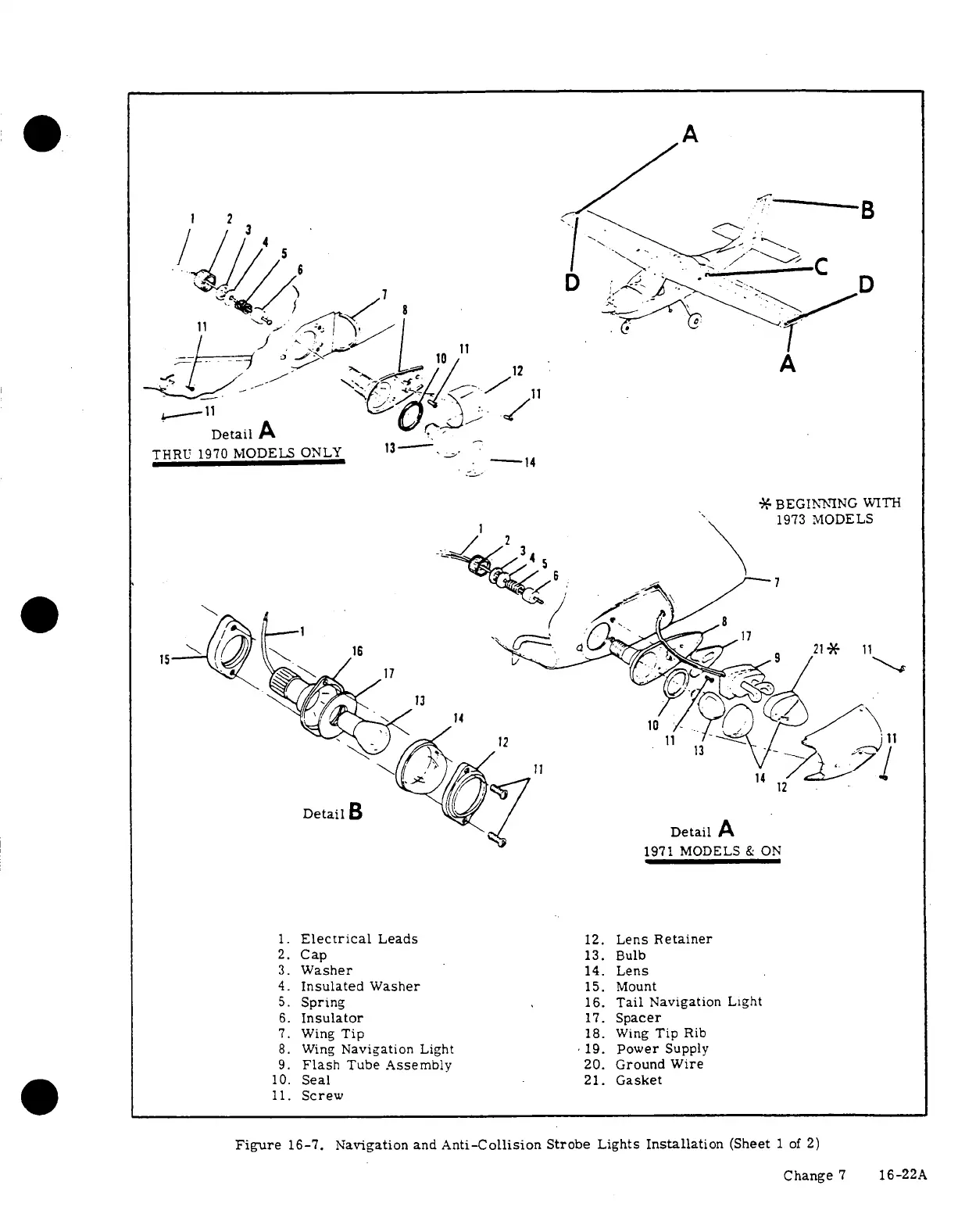

Figure 16-7. Navigation
and Anti-Collision Strobe Lights Installation
(Sheet 1 of 2)
Change 7 16-22A

Cessna 177 SERIES Specifications

General

Manufacturer	Cessna
Engine Type	Piston
Wingspan	35 ft 6 in (10.82 m)
Seating Capacity	4
Number Built	4, 295
Engine	Lycoming O-360
Horsepower	180 hp
Maximum Takeoff Weight	2, 500 lb (1, 134 kg)
