Cessna 177 SERIES Service Manual

AILERONS
BALANCING MANDRE L
Streamline
trim
tab before
balancing aileron.
DETAIL A-A
--
_H
LINE
., . HORIZONTAL PLANE
.................................................................. ......................... . ............................
Balance aileron inverted, with trailing edge
at point opposite cut-out for middle hinge
.66" below hinge
line horizontal
plane.
Refer
to chart
for correct
range of underbalance.

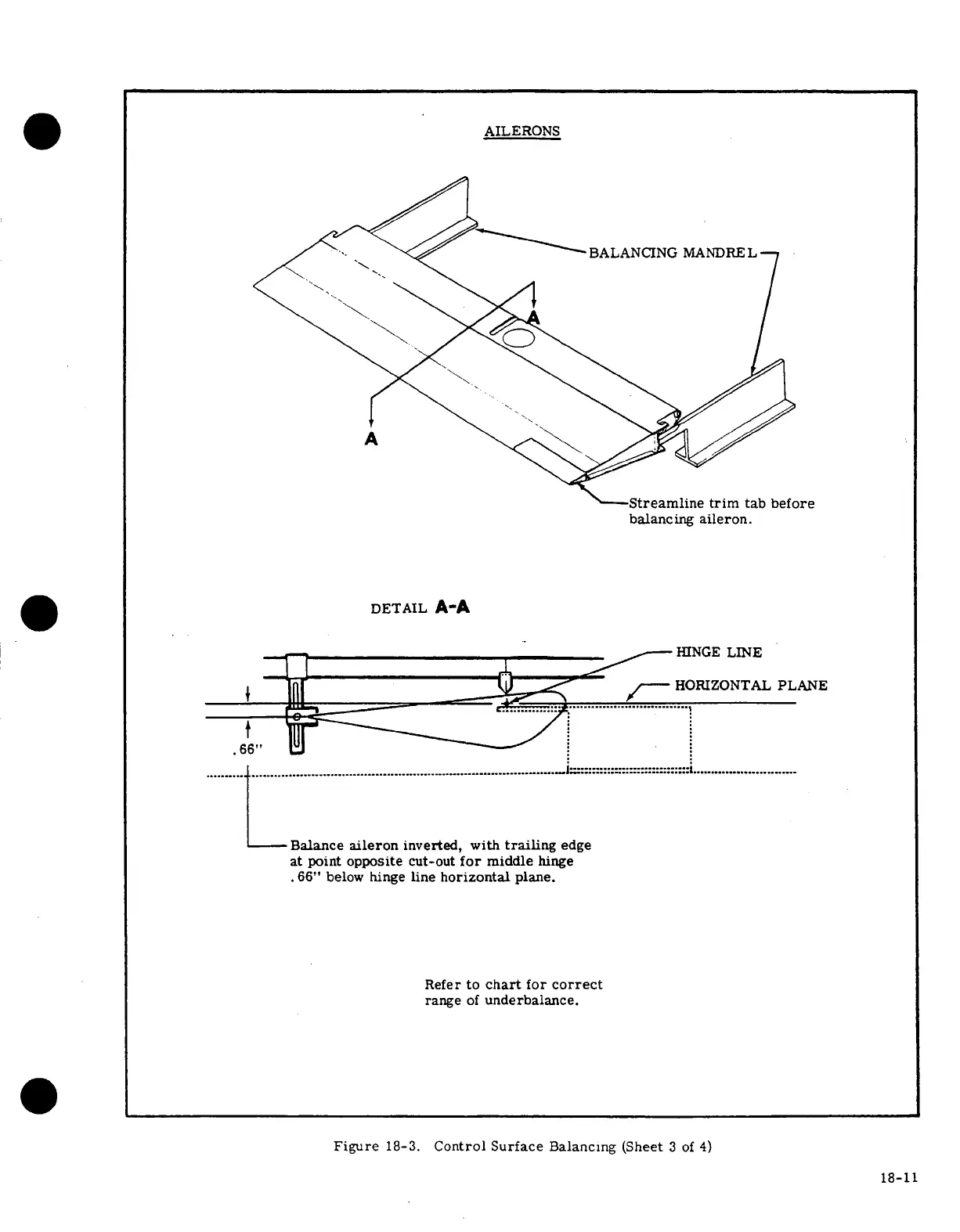

Figure 18-3. Control Surface Balancing (Sheet 3 of 4)
18-11
