Introduction
9

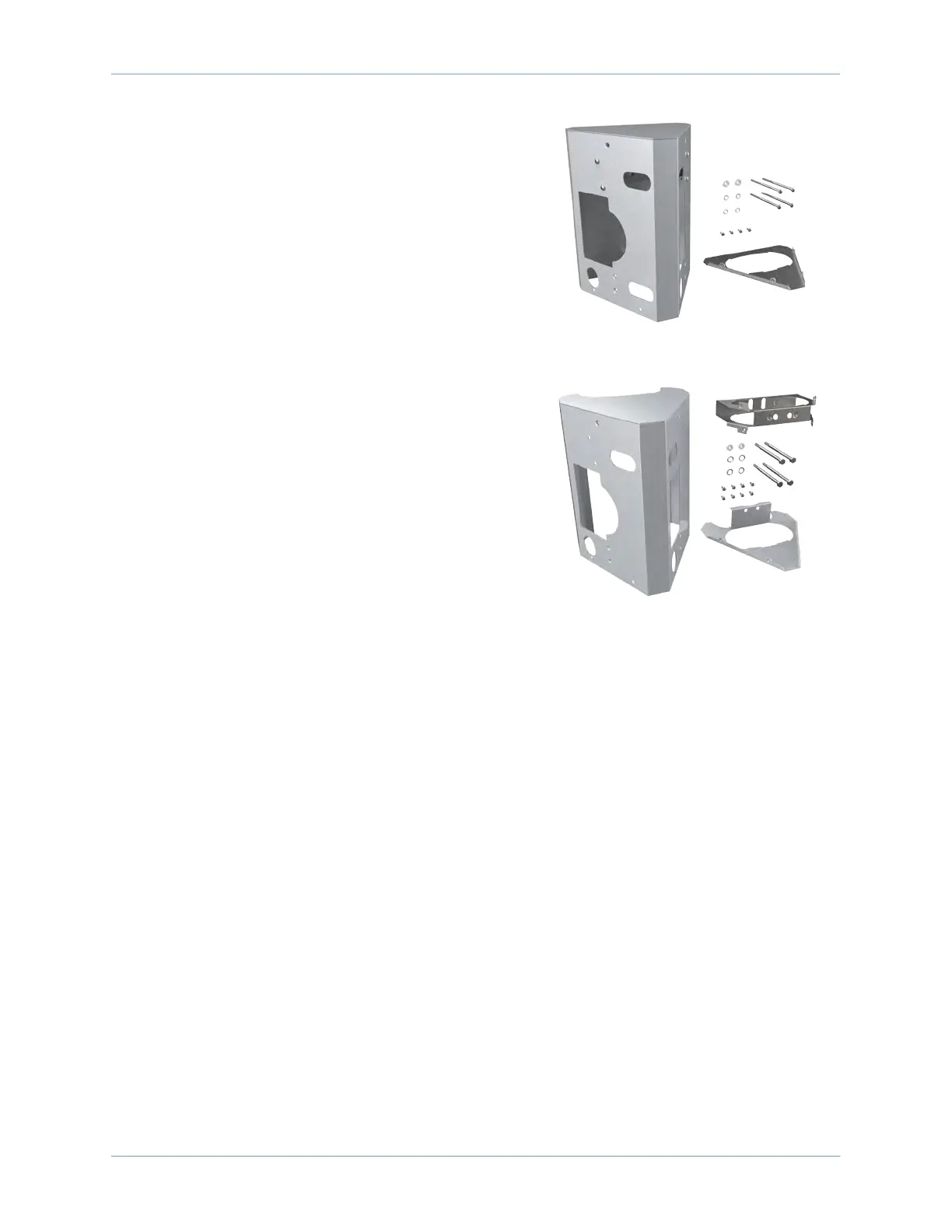

Dual Station (Without CMK) Mount Kit
(99-002009)
• Bracket
• Bottom bracket cover
• Internal bracket (installed inside bracket)
• 10-32 x 4 in screws (4)
• 8-32 x 3/8 in screws (4)
• Nylon spacers (2)
• Lock washers (4)
Dual Station With CMK Mount Kit
(99-002010)
• Bracket
• Top internal brace
• Bottom internal brace
• 1/4-20 x 4 in screws (4)
• 8-32 x 3/8 in screws (8)
• Nylon spacers (2)
• Lock washers (4)
Choose Your Configuration
Once you have confirmed that you have the correct boxes and complete contents for the charging
station(s) you are installing, proceed to the next applicable Section based on the configuration you
are installing:
• Wall Mount with no CMK - Section 2
• Wall Mount with CMK - Section 3
• Pedestal Mount - Section 4
