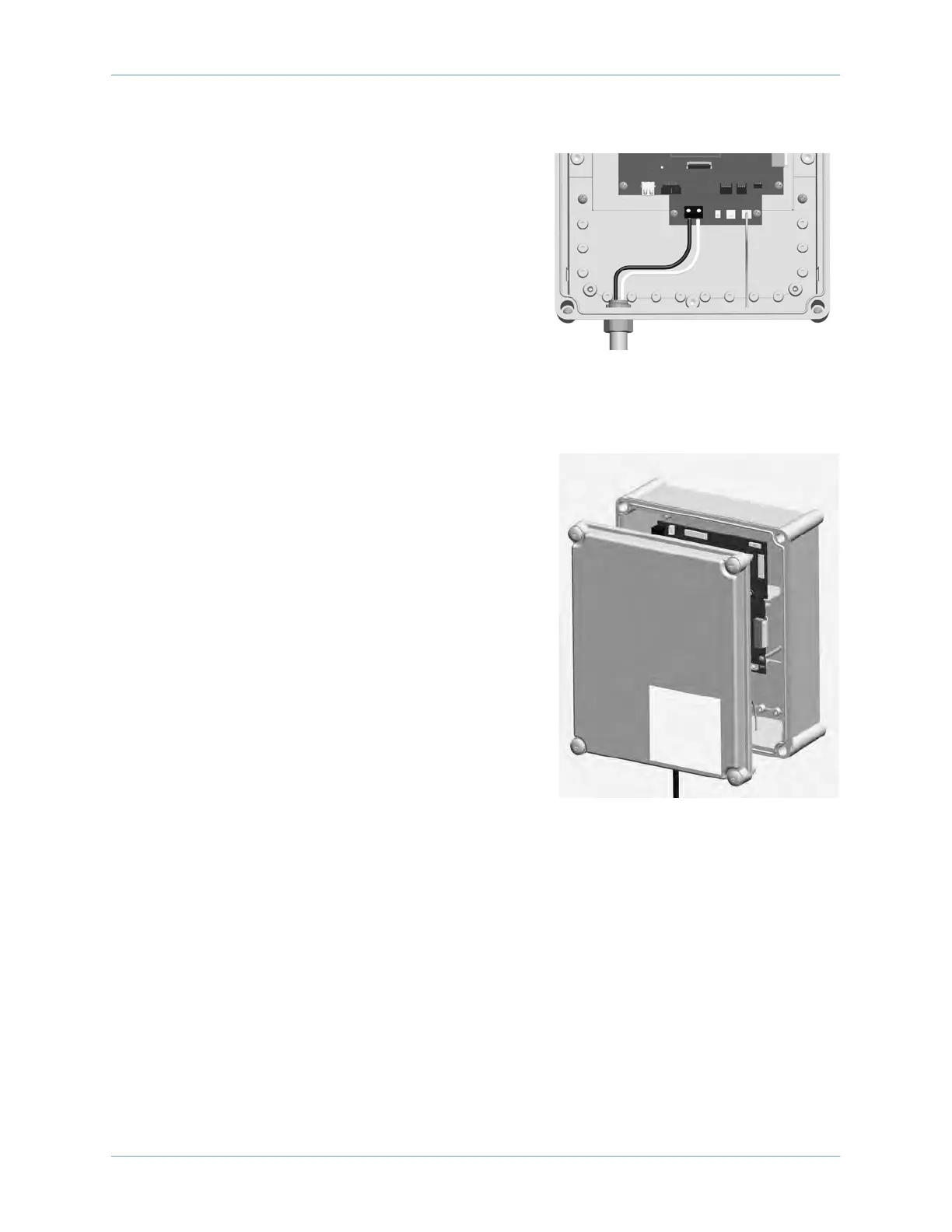

Connect the Wiring
1. Using 16 mm (1/2 in trade size) conduit and the
appropriate fittings, route the appropriate length of
6.0 - 2.5 mm
2
(10-14 AWG) stranded or solid service
wiring to the ChargePoint Gateway and through the
hole in the bottom (where you removed the power
cord).
2. Strip service wires 6.4 mm (1/4 in).
3. Connect L1 and L2 (or L and N) service wiring, as
shown.
Install the Cover
Align the cover to the front of the main unit. Turn the
screws to lock the cover into place.
