14

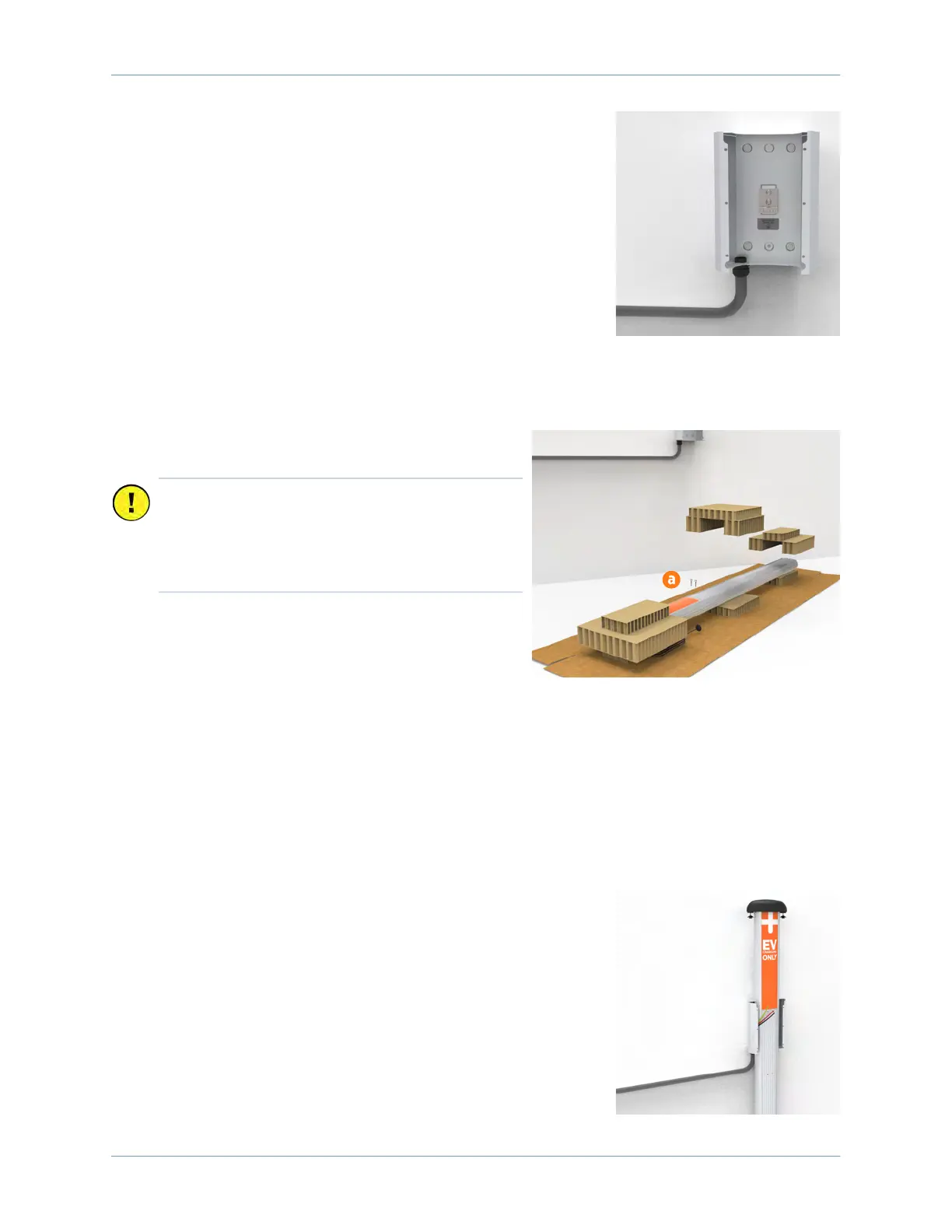

6. Run service wiring through 19 mm (3/4 in trade size) conduit.
7. Insert the conduit in the hole in the bottom of the back bracket.
Run approximately 300 mm (12 in) of service wiring into the
bracket.
8. Use a Phillips screwdriver to connect the ground wire to the
grounding lug on the back bracket.
Prepare the CMK
1. Position the CMK packaging so its bottom is located near where the charging station will be
installed.
Note: Do not unwrap the ropes.
2. With CMK horizontal, remove and discard the two
shipping screws (a) from the front of the CMK.
3. Remove the cardboard packaging.
Mount the CMK
1. Slowly lift the CMK into position against the back bracket and hold it in place.
Note: The ropes will rise as the weights inside the CMK lower. Guide the ropes to the top as you
gently lift the CMK.
2. Position the front bracket so that the wiring opening is in the
lower left corner.
Important: Do not tilt or carry the assembly with
the top end lower than the bottom end. When
you remove the shipping screws, the
counterweights are free to move in either
direction.
