Mount a Dual Station Bracket
(Without a CMK)

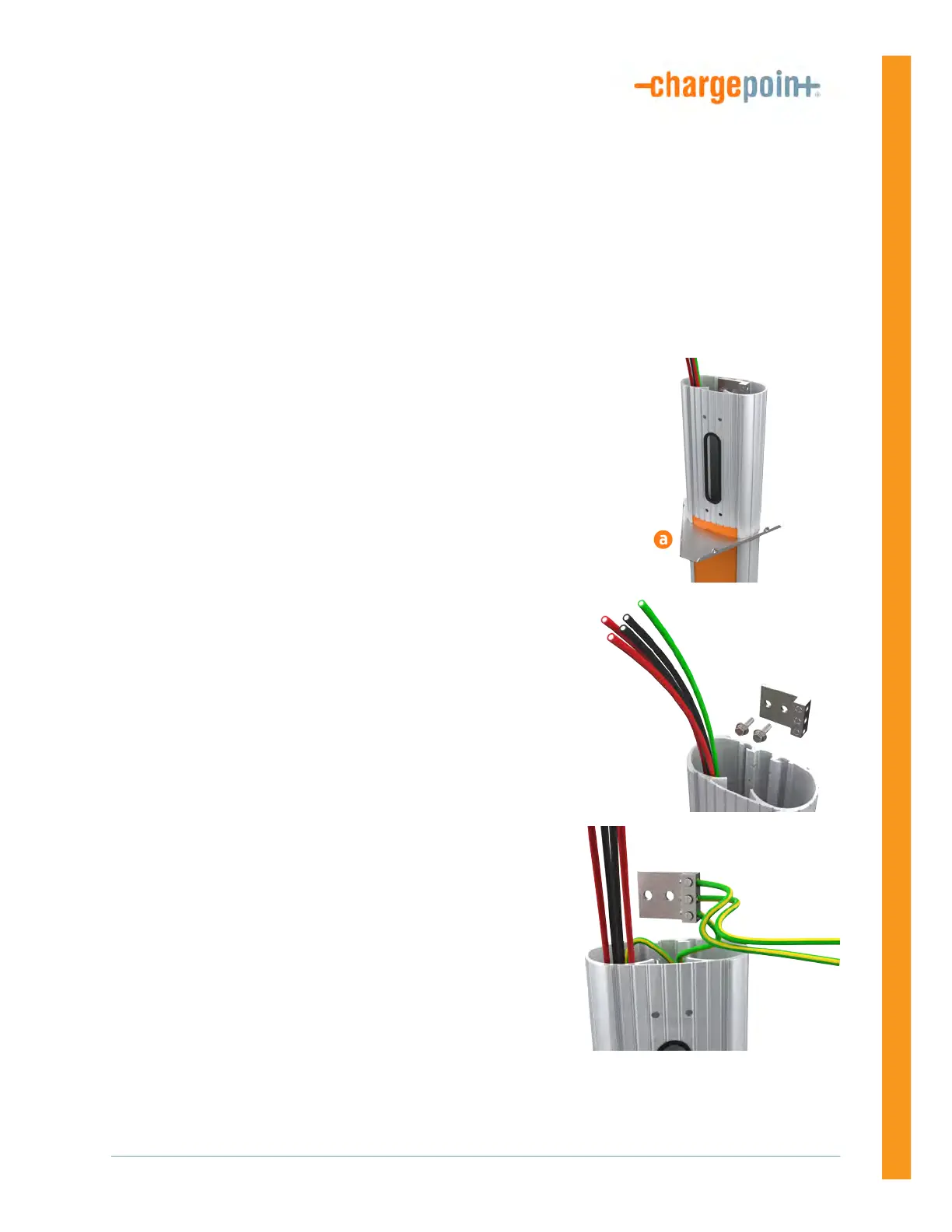

1. Slide the bottom bracket cover (a) over the pedestal,
guiding it gently to the bottom.
2. Remove the ground lug from the pedestal using a 7/16 in
wrench. Save the screws to reinstall later.
3. Connect the ground wire from the service wiring to the
ground lug.
4. Run the ground wires from the ground lug through the
wiring opening in the front of the pedestal.
5. Reinstall the ground lug to the pedestal using the 7/16 in
wrench and the two screws you removed.
