6. Route the remaining service wiring through the opening
in the front of the pedestal.

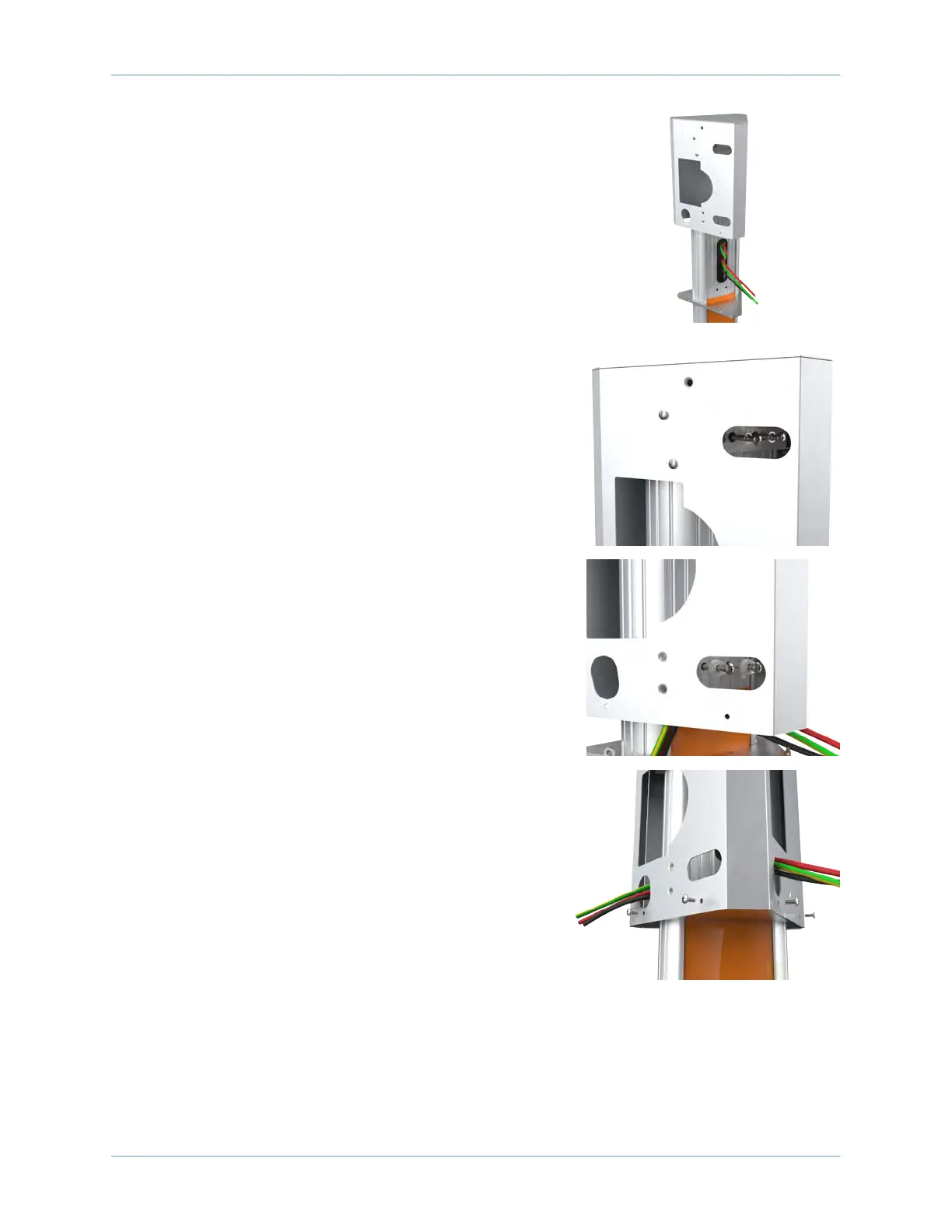

7. Slide the bracket over the pedestal.
8. Align the two holes at the top and the two holes at the
bottom of the bracket with the corresponding holes in the
pedestal.
9. Fasten the main bracket to the pedestal using two 4 in
screws and lock washers at the top and two 4 in screws
and nylon spacers at the bottom.
10. Route the service wiring through the wiring hole on each
left corner of the main bracket fronts.
11. Slide the bottom cover up, taking care not to scratch the
sign on the front of the pedestal.
12. Fasten it to the main bracket using four 3/8 in screws, two
on each side.
Proceed to section 9 to mount the station.
