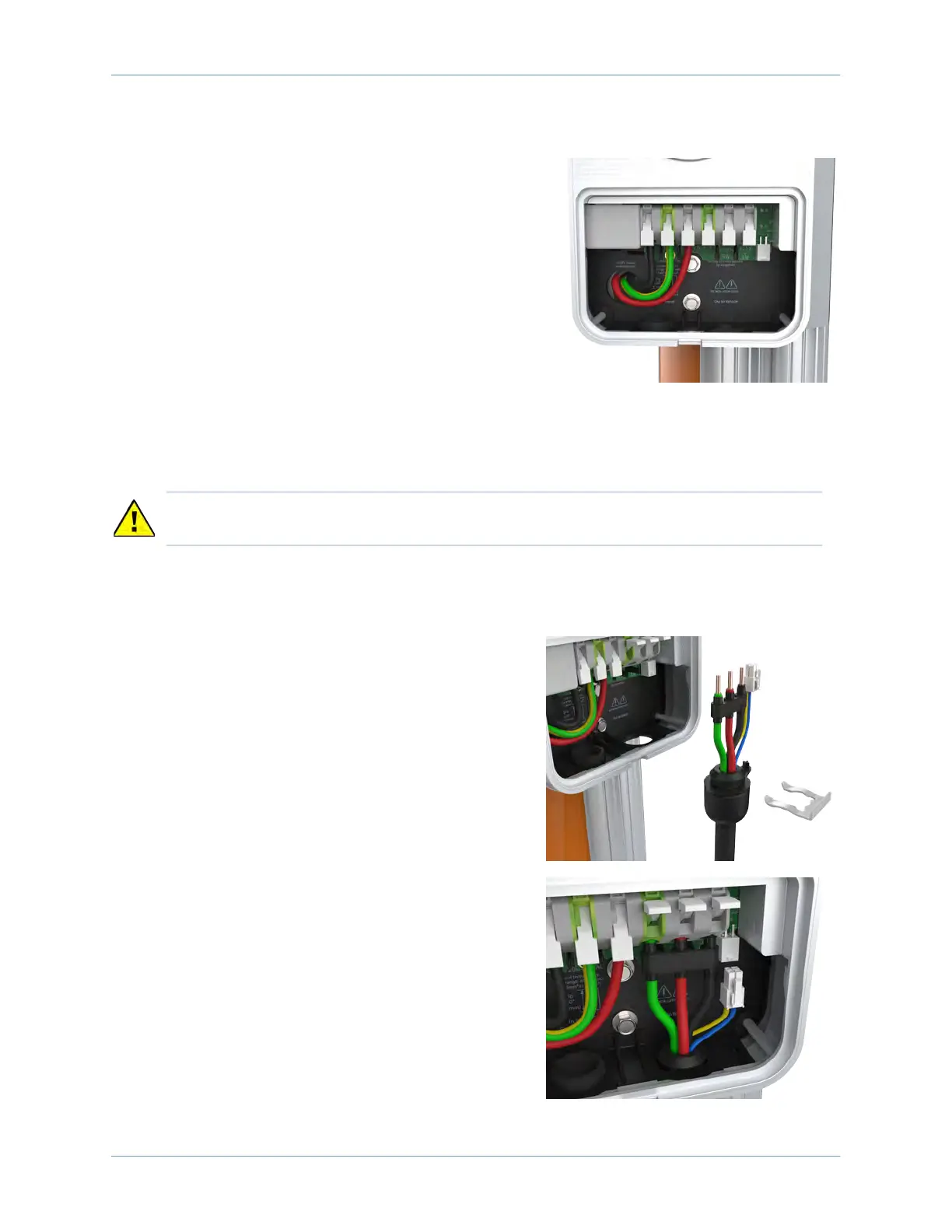

Connect the Service Wiring
1. Ensure the service wiring can easily reach the
connectors on the charging station’s terminal block.
Note: If mounting CPF50 an exterior wall and bringing
power through the rear knockout, apply sealant
around the rear knockout to prevent water ingress.
2. Trim the wiring to remove any excess length.
3. Strip each wire to 12 mm (1/2 in).
4. Ensure the white clips on the terminal block are fully
open.
5. Insert the wires into the connectors on the left side of
the terminal block.
6. On each connector, press the three levers down until they snap into place.
Connect the Charging Cable
1. Remove the cable clip connected to the wiring end of
the cable, but do not discard it. Save the clip to use
later.
2. Fold the wire ends and insert them into the opening
on the lower right side of the station, pushing up until
the cable collar is flush against the enclosure.
3. Insert the green wire in the green slot on the left
terminal of the output block.
4. Insert the remaining wires into the corresponding
connectors on the right side of the terminal block.
5. Push the cables up until the silver conductors are no
longer visible.
CAUTION: Ensure each wire is fully inserted into the connector with no bare wire showing
before pressing it into place with the white clip.
