Install the Station and Charging Cable
33

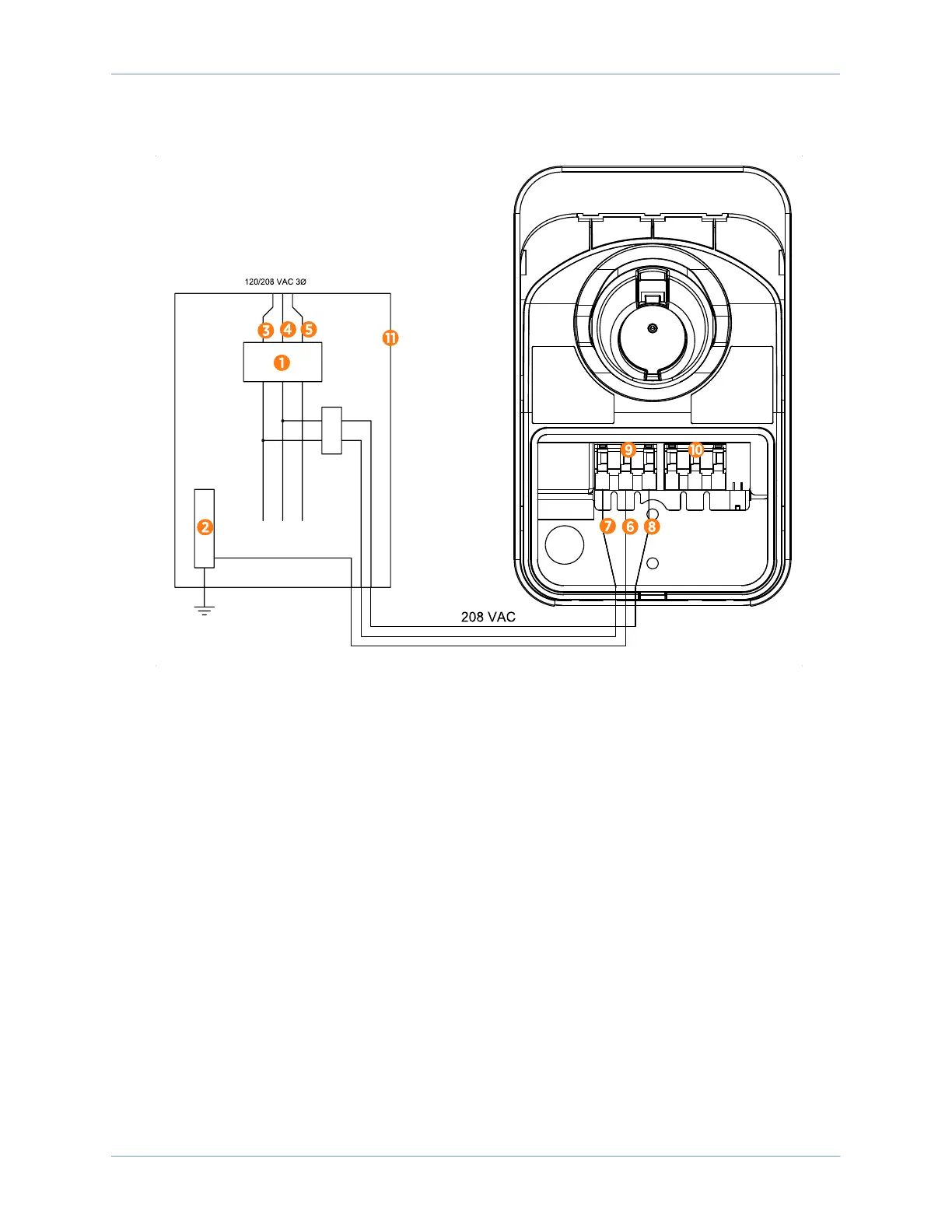

208 VAC Three Phase Panel
Note: Connect power to any two of the phases.
1. Main Breaker 7. L1
2. Ground Bus 8. L2/N
3. L1 9. Input Terminal Block
4. L2 10. Output Terminal Block
5. L3 11. Local Service or Sub Panel
6. Ground
To Next Page
