Install a Wall Mount CPF50
Bracket and CMK

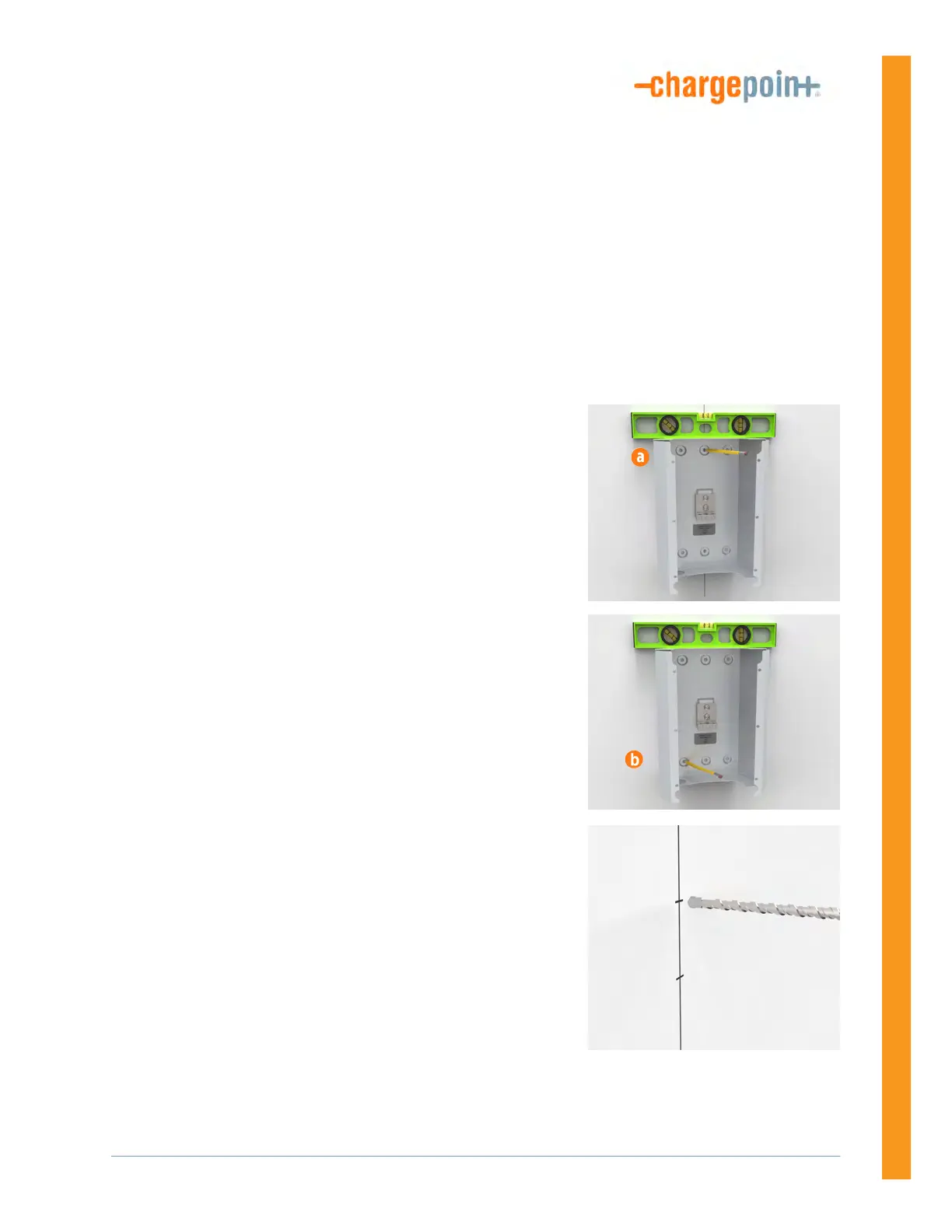

Mount the Back Bracket
1. Place the back bracket against the wall with the top of the
bracket 1270 mm (50 in) above the floor or ground.
2. Place a level along the top of the bracket to ensure the holes
are accurately aligned.
3. Mark the drill holes:
• Use the two center holes if the station is being mounted to
a wooden stud (a).
• Use the four outer holes if mounting to a masonry or
concrete wall (b).
4. Use a drill and drill bit appropriate for the type of wall to drill
the mounting holes.
Note: For masonry or concrete walls, insert masonry anchors
(not included) rated for at least 318 kg (700 lbs) of pull-out
force.
5. Secure the back bracket to the wall:
• For wooden stud, use two of the 1/4 x 2 in lag screws
provided.
• For masonry or concrete walls, use four screws
appropriate for your anchors.
