Review the Wiring Diagram

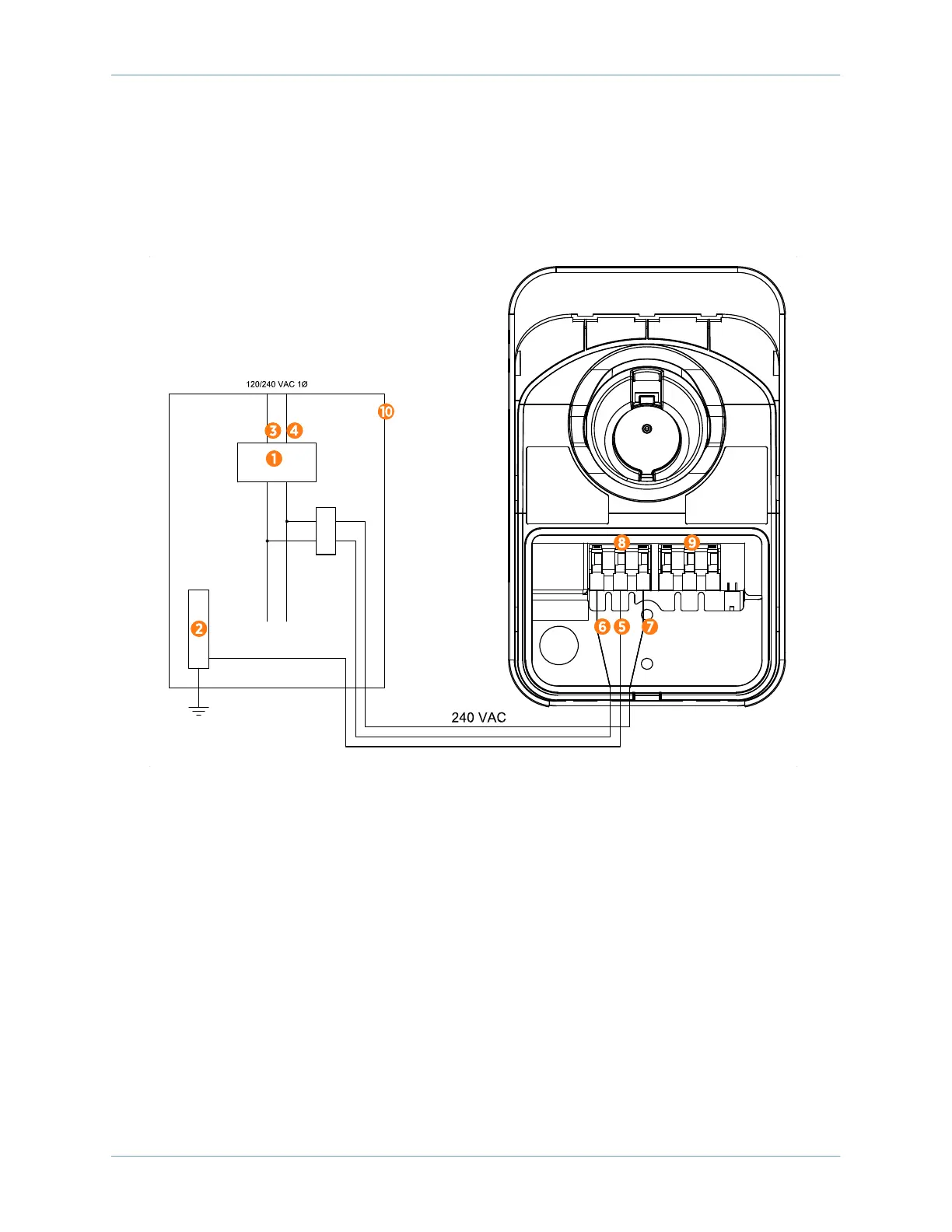

240 VAC Single Phase Panel
1. Main Breaker 6. L1
2. Ground Bus 7. L2
3. L1 8. Input Terminal Block
4. L2 9. Output Terminal Block
5. Ground 10. Local Service or Sub Panel
