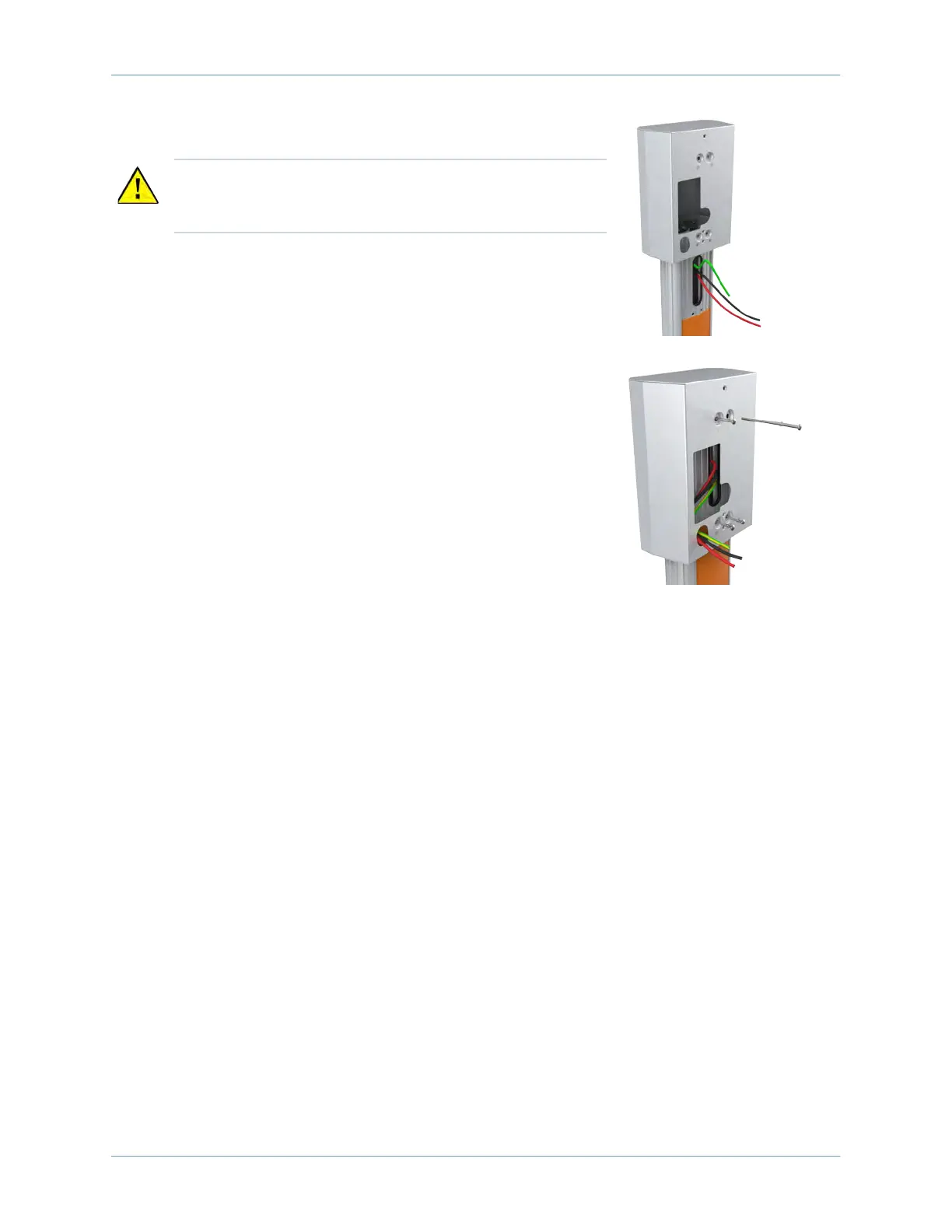

5. Slide the bracket over the pedestal while guiding the remaining
service wiring through the opening in the front of the pedestal.
6. Align the two holes at the top and the two holes at the bottom
of the bracket with the corresponding holes in the pedestal.
7. Fasten the bracket to the pedestal using the four 4 in screws
and four #10 lock washers by inserting the screws through the
bracket and into the stand-offs on the pedestal.
8. Tighten the screws using a Phillips screwdriver.
9. Route the service wiring through the wiring hole in the front of
the bracket.
Proceed to Section 9 to mount the station.
CAUTION: The bracket must slide over the service wiring.
Lay the wiring as flat as possible against the pedestal to
prevent damage.
