[DB600] General Instruction Manual

- 26 -

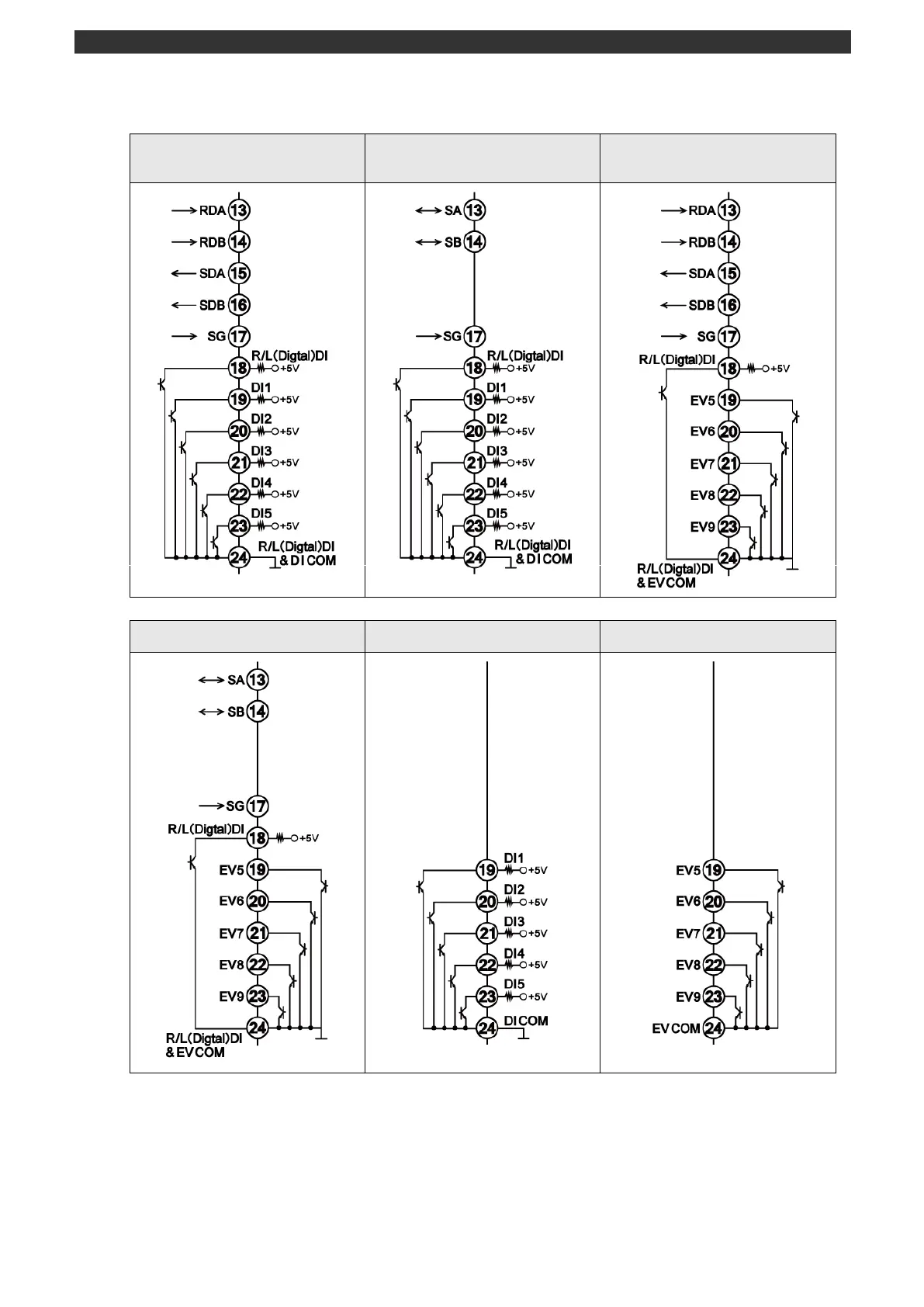

Communication interface/external signal input/event output terminal (open corrector

output)

RS422A + external signal input

5points

RS485 + external signal input

5points

RS422A + event output 5points

RS485 + event output 5points

External signal input 5points

Event output 5points
