Chino DB650 - Page 29

[DB600] General Instruction Manual
- 27 -

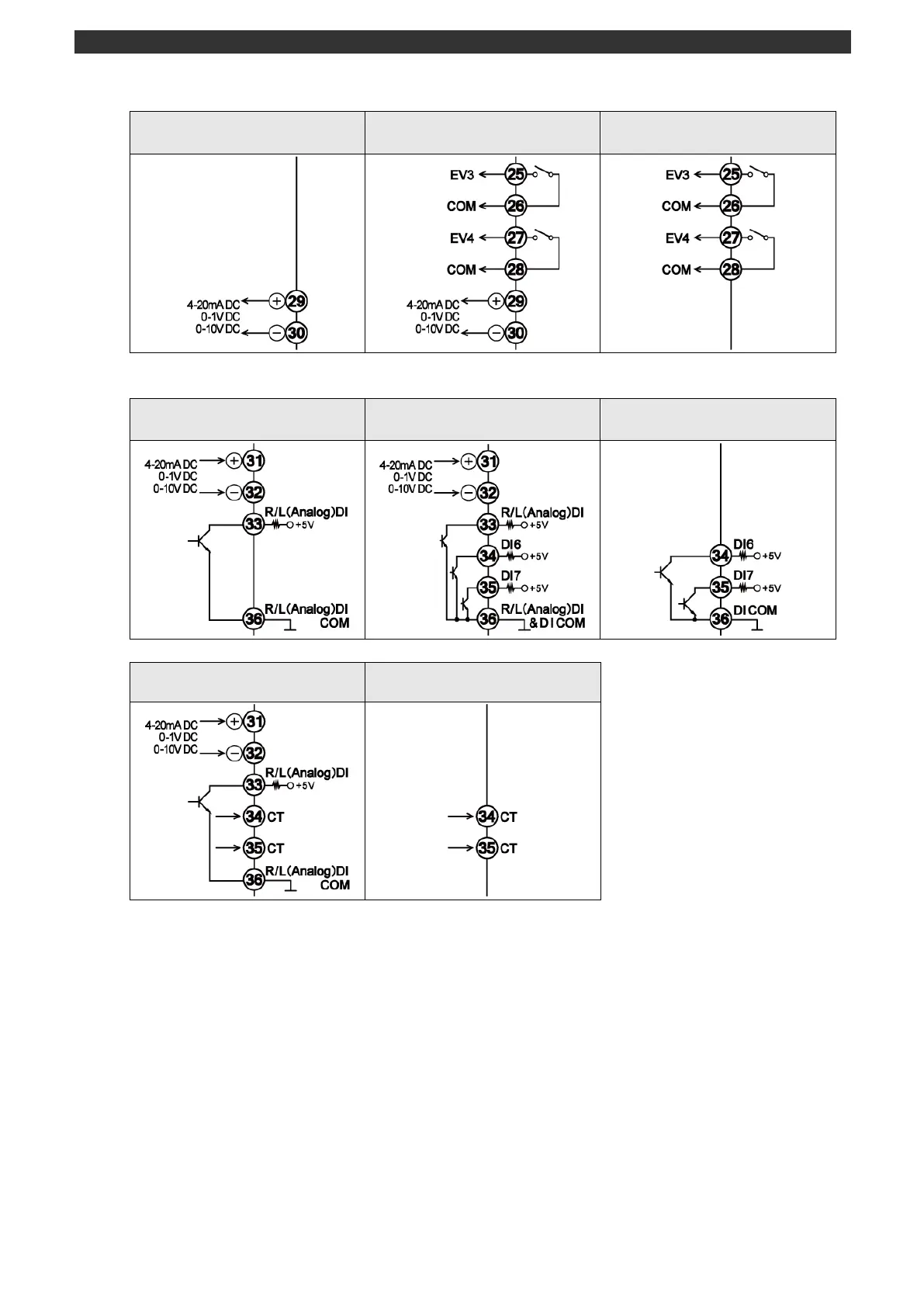

Transmission signal output/event output terminal (mechanical relay)
4-20mA/0-1V/0-10V
4-20mA/0-1V/0-10V
+ event output 2 points
Event output 2 points
Remote signal input/external signal input/CT input terminal for heater disconnection alarm
4-20mA/0-1V/0-10V
4-20mA/0-1V/0-10V
+ external signal input 2 points
External signal input 2 points
4-20mA/0-1V/0-10V
+ CT input
CT input
