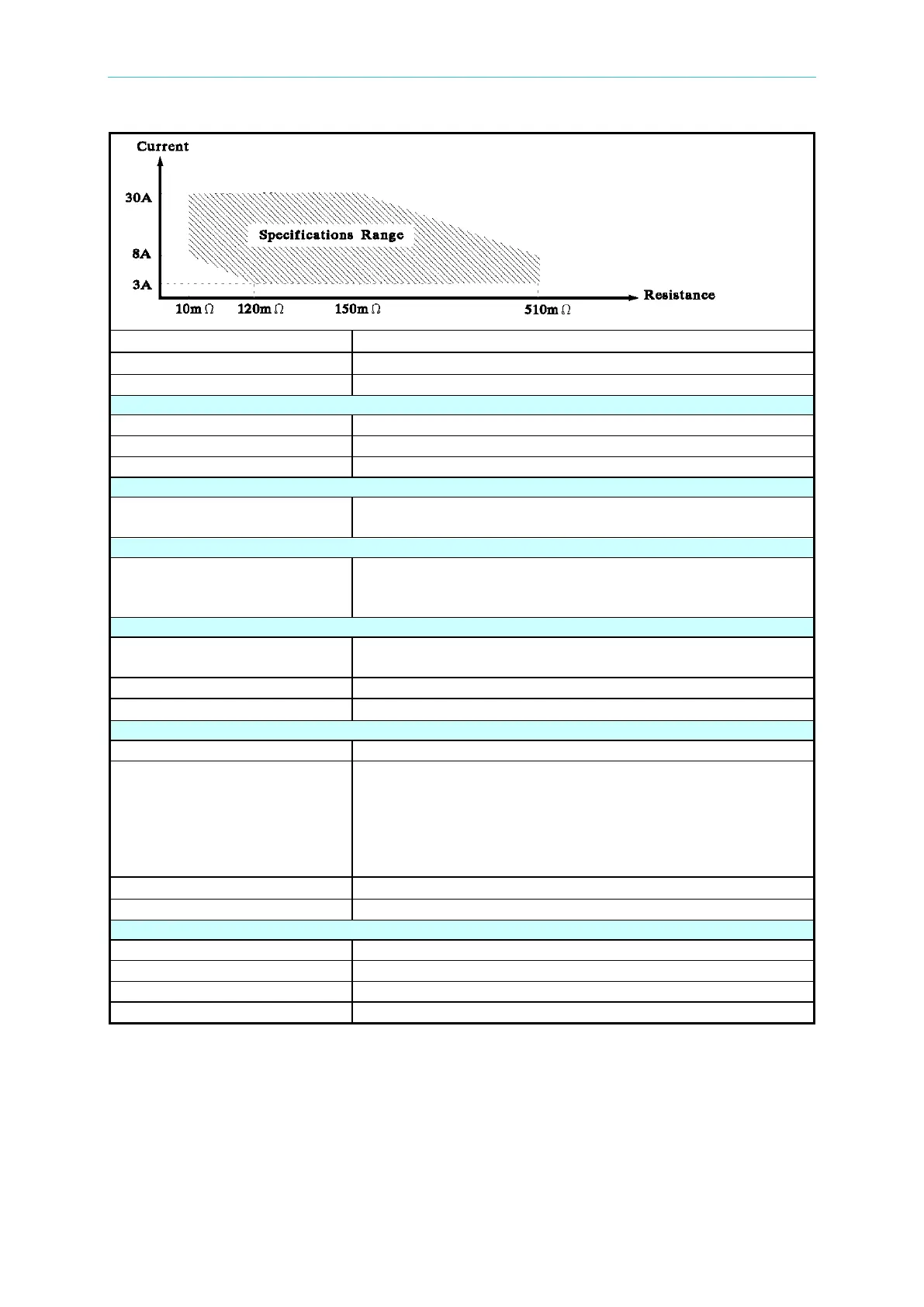

Electrical Safety Analyzer 19032 User’s Manual
2-2

Limit Value Setting
HI - LIMIT 0.1 ~ 510.0mΩ

Offset Range
0 ~ 100.0mΩ

Test Time
0.3 ~ 999 Sec., Continuous
 Secure Protection Function

Fast Output Cut-off
Approx. 0.4mS
 Fast Discharge
Approx. 0.2S (Discharge Voltage 5.1kV)

Panel Operation Lock
YES, with password On/Off
 Memory Storage
 Memories, Steps
100 groups of memory, each memory includes max. 50
Steps (TOTAL 500 steps)
 PASS/FAIL Judgment Window
 Indication, Alarm
PASS: (Short Sound)
FAIL: W-Arc, W-Hi, W-Lo, IR-Lo, IR-Hi, GR-Hi, GR-Lo
(Long Sound)
 Remote Connector
 Rear Panel
9-Pin connector:
START, RESET, UNDER TEST, PASS, FAIL
 Start/Reset Control
TTL Low Level Active, minimum 20mS

RS-232 Interface
Baud rate 300 ∼ 19200, data bits: 8, stop bit: 1
 Ambient Temperature and Relative Humidity

Specifications range
18 to 28°C (64 to 82°F), 20 to 70% RH.
 Operable range
Temperature 5°C to 40°C.
Maximum relative humidity 80% for temperatures up to
31°C decreasing linearly to 50% relative humidity at 40°C.
Altitude up to 2000m.
Indoor use only
Pollution degree 2

Storage range
-10 to 50°C (14°C to 122°F), ≤ 80% RH.

Installation Category
CAT II
 Power Requirement

Line Input
AC 50 or 60 Hz, 100V, 120V, 220V ± 10%, 240V +5 -10%

Power Consumption
No load: < 100VA, With rated load: 800W max.

Dimension
430 W x 133 H x 470 D mm
 Weight
24 kg Approx.
