Chroma 19032 - Remote Command Summary

Electrical Safety Analyzer 19032 User’s Manual
5-4
5.3.4 Cable Wiring Pattern

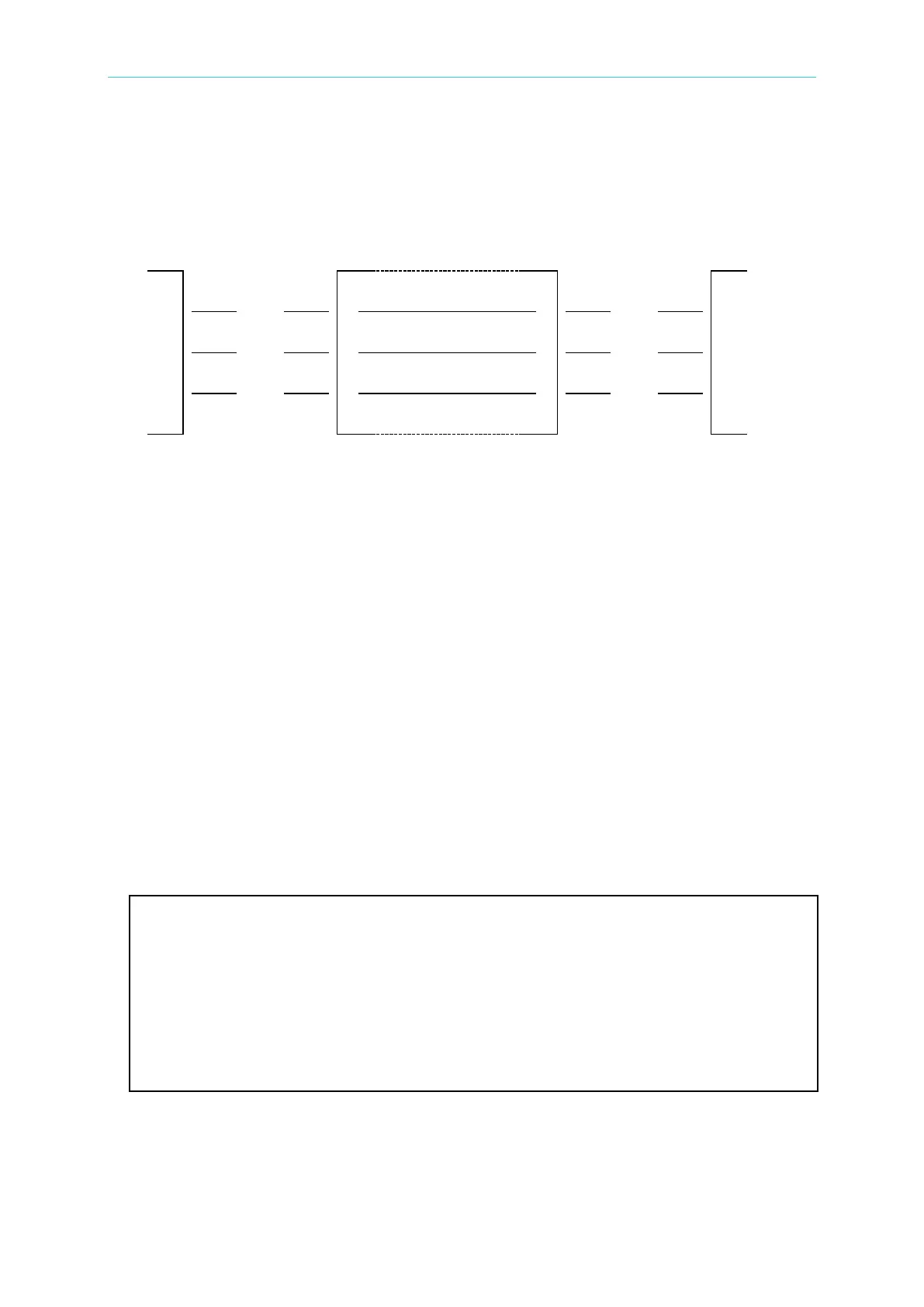

RS-232 9 pins female connector wiring diagram.
TxD
RxD
GND
RxD
TxD
GND
2
3
5
2
3
5
2
3
5
2
3
5
9 Pin (Female)
Instrument
9 Pin (Male)
9 Pin (Female
) 9 Pin (Male)
PC
Cable
5.4 Remote Commands
5.4.1 Remote Command Summary
• IEEE 488.2 Commands
*CLS
*ESE < enable value >
*ESE?
*ESR?
*IDN?
*OPC
*OPC?
*PSC 0 | 1
*PSC?
*RST
*RCL < register number >
*SAV < register number >
*SRE < enable value >
*SRE?
*STB?
The SCPI (Standard Commands for Programmable Instruments) parameter syntax
format is listed below:
(1) The dual arrow symbol “< >” denotes the defined parameter is a standard SCPI
command.
(2) The symbol “< numeric value >” denotes the metric system value.
(3) The symbol “< boolean >” denotes the Boolean equation data (its value is 0 or 1).
(4) The vertical line ” | “ denotes the ‘OR’ parameter.
(5) The symbol “< channel list >” denotes Scanner and Channel status: (@S(C1, C2…))
S denotes Scan number and C1, C2… denotes Channel number.
