Descriptions of Panel
4-29

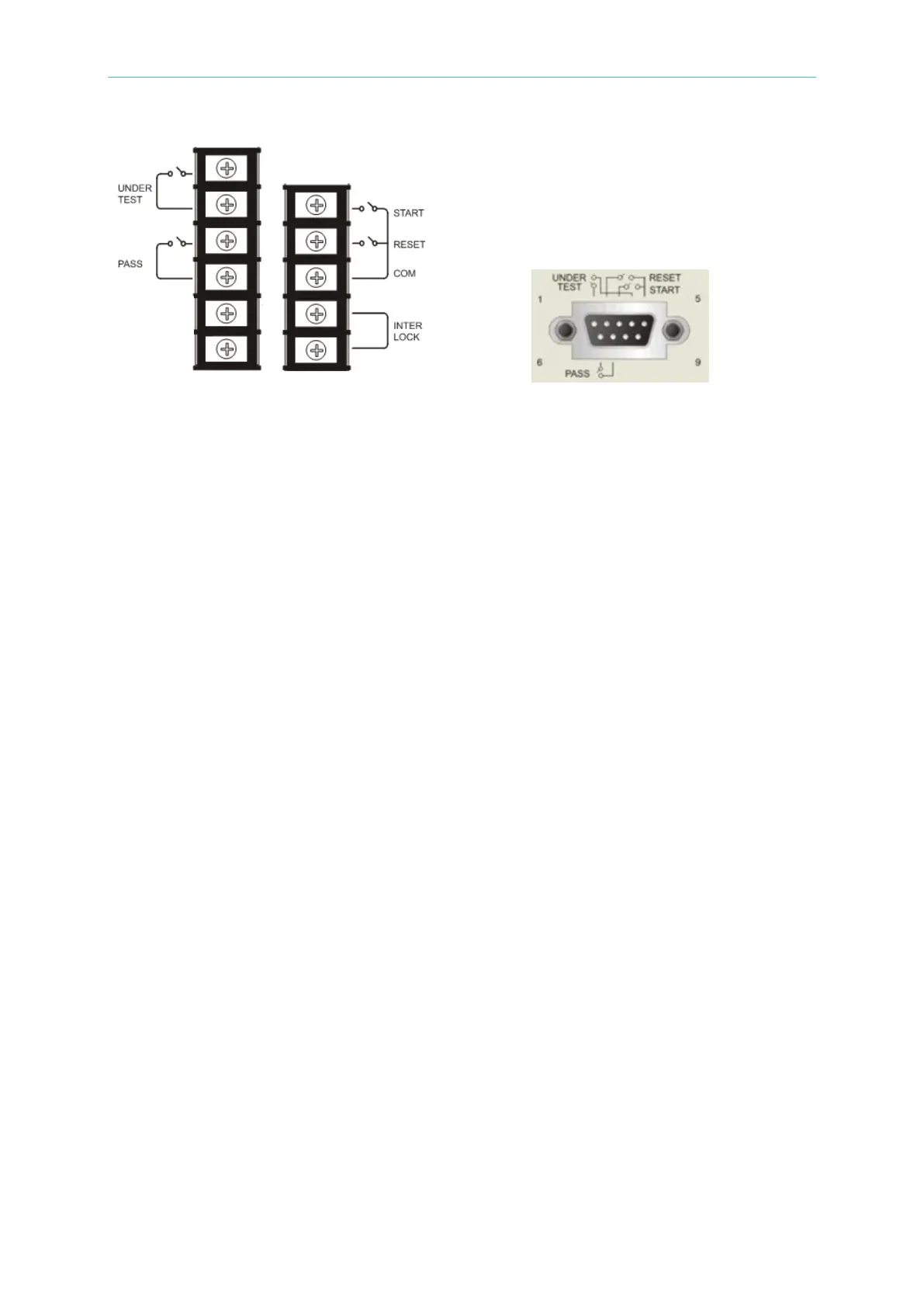

REMOTE I/O 9 Pin D-Sub
Figure 4-15
4.15 Output Signal
The analyzer has two internal signal indications: LED and buzzer. The rear panel of the
analyzer has the following output signals:
UNDER TEST: While the analyzer is running a test, this relay output terminal will be closed.
This closed condition can be used to control an external signal. The relay
contacts can support 115V AC, <0.3A.
PASS: When the DUT passes a test, this relay output terminal will be closed. This
closed condition can be used to control an external signal. The relay contacts
can support 115V AC, <0.3A. This signal will remain until the RESET signal is
received.
