Automatic Transformer Test System 3300/3302 User’s Manual

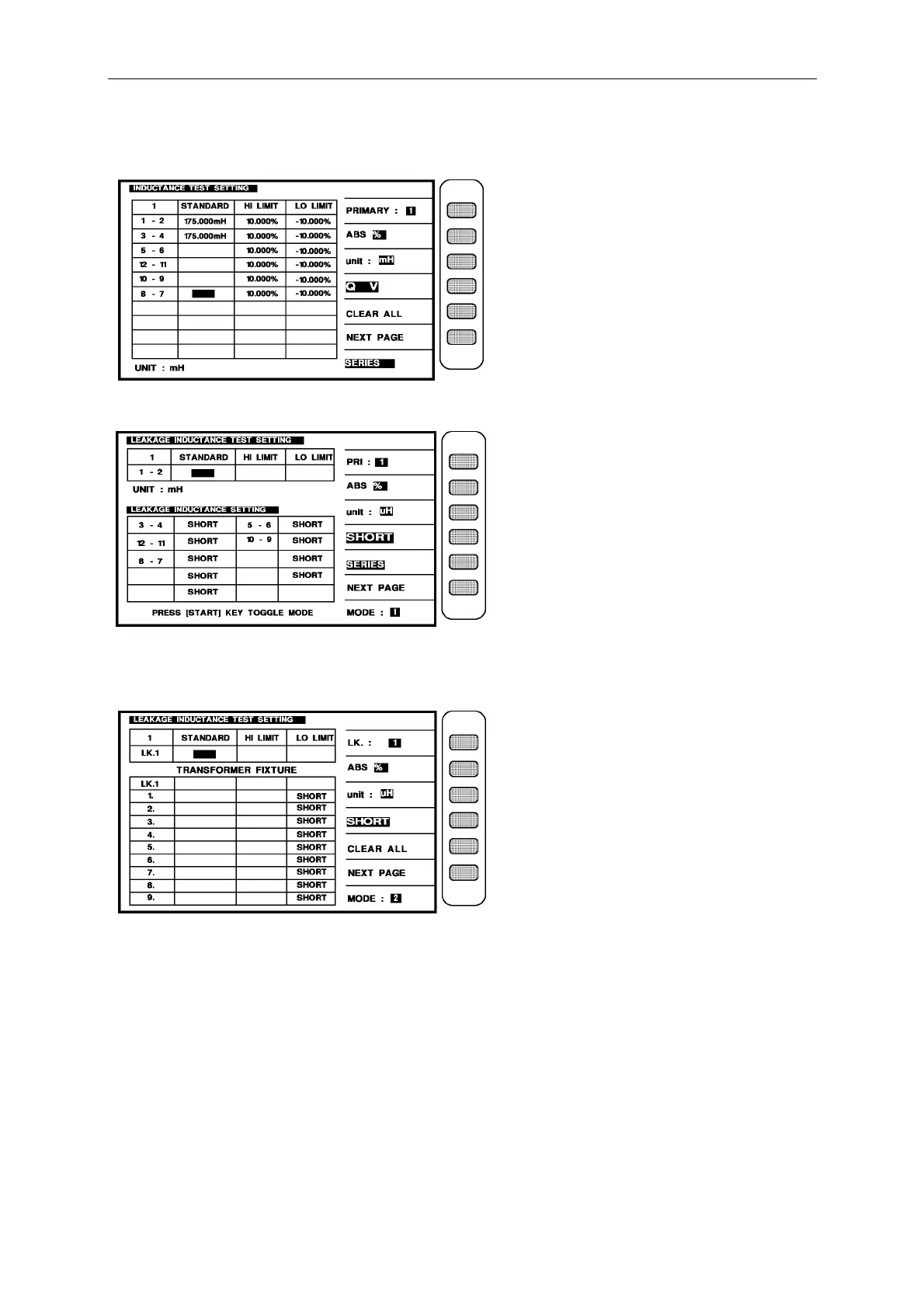

After set the inductance of every windings and high/low limit, the screen is as below:
Then press [ENTER] to into next setting screen as below : (LEAKAGE INDUCTANCE)
The above figure is the leakage first test (single), but the leakage test of this instrument is
multi-test, so should use second test (multi) press [START] then show the screen as below:
When into this screen is entrance to the judgment setting of transformer leakage, it is also
guidable operation, just according the block area on the screen and number keys to input the
pin number, press [ENTER] then automatically change to next pin setting item, use the same
method till the last item of pin number on the same screen, press [ENTER] then automatically
change to next the setting screen of parameter.
Ex.: The leakage inductance value of each winding of transformer is as following:
To Next Page
