Chroma 63600 Series User Manual

Local Operation
4-5

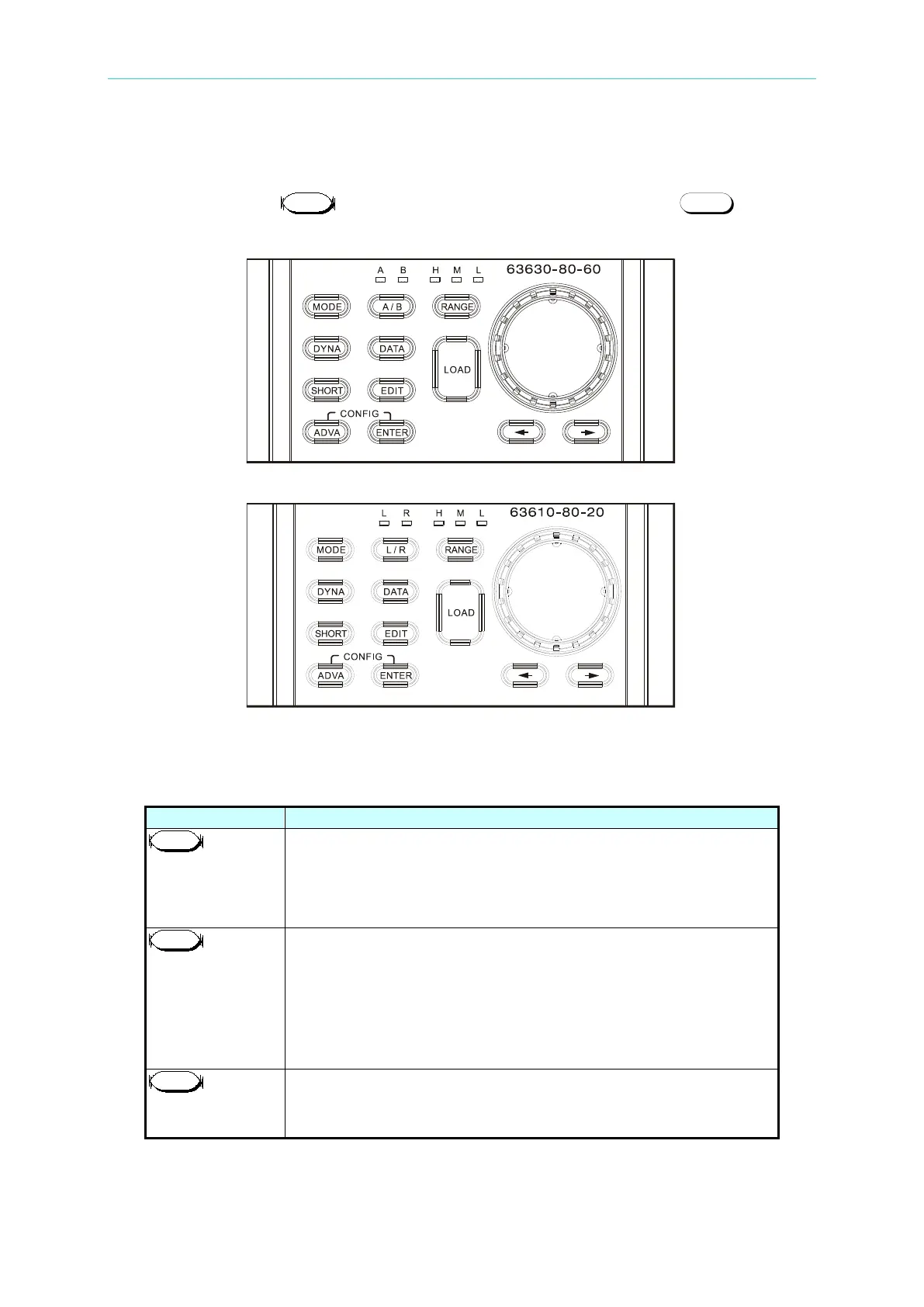

 Front Panel Keys (Load module)
There are twelve keys for each of the module panel. Only one key is different from the
keypads, which is key in the single channel module panel and key in the
dual channel module panel. Figure 4-6 shows the front panel Keys of the Module.
A. Single Channel Module
B. Dual Channel Module
Figure 4-6 Front Panel Keys of the Module
Table 4-3 Definition for Front Panel Keys on the Module
Keys
Description
The system provides CC, CR, CV, CP and CZ modes for loading
simulation. This key is used to change the operation mode for
power supply testing. (Press MODE repeatedly will switch the
mode in the sequence of CC  CR  CV CP CZ
accordingly for users to edit and test.)
The system provides programmable dynamic loading for power
supply test simulation. This key enables the system to enter into
dynamic test. This dynamic mode provides two setting method
of DYNAMIC + COUNT and FREQUENCY SWEEP. (Press
DYNA repeatedly will switch the function in the sequence of
Dynamic  F_SweepStatic accordingly for users to edit and
test.) The LED lit when users enable this function.
only
exists in single
channel module
The system of the single channel module provides two load
settings of A and B for STATIC test. This key enables user to
select static A or B directly.
A/B
MODE
DYNA
A/B
L/R
