CIAT FLOWAY User Manual

EN-20
Configuration c0
Level 3 access
Type
--------
Orientation ----
Type: Classic 1000. (plate heat exchanger)
Classic 2000 (plate heat exchanger)
Classic 3000 (plate heat exchanger)
Classic 4000 (plate heat exchanger)
Classic 5000 (plate heat exchanger)
Classic 6000 (plate heat exchanger)
Classic 1000 RHE (rotary heat exchanger)
Classic 1500 RHE (rotary heat exchanger)
Classic 2000 RHE (rotary heat exchanger)
Classic 2500 RHE (rotary heat exchanger)
Classic 3000 RHE (rotary heat exchanger)
Classic 4000 RHE (rotary heat exchanger)
Classic 5000 RHE (rotary heat exchanger)
Classic 6000 RHE (rotary heat exchanger)
Classic 7500 RHE (rotary heat exchanger)
Classic 10000 RHE (rotary heat exchanger)
Classic 15000 RHE (rotary heat exchanger)
Ceiling-mounted 700
Ceiling-mounted 1200
Ceiling-mounted 1600
Vertical 700
Vertical 1000
Vertical 1500
Vertical 2000
Orientation (for Classic RHE type only): ROTS21 or ROTS22

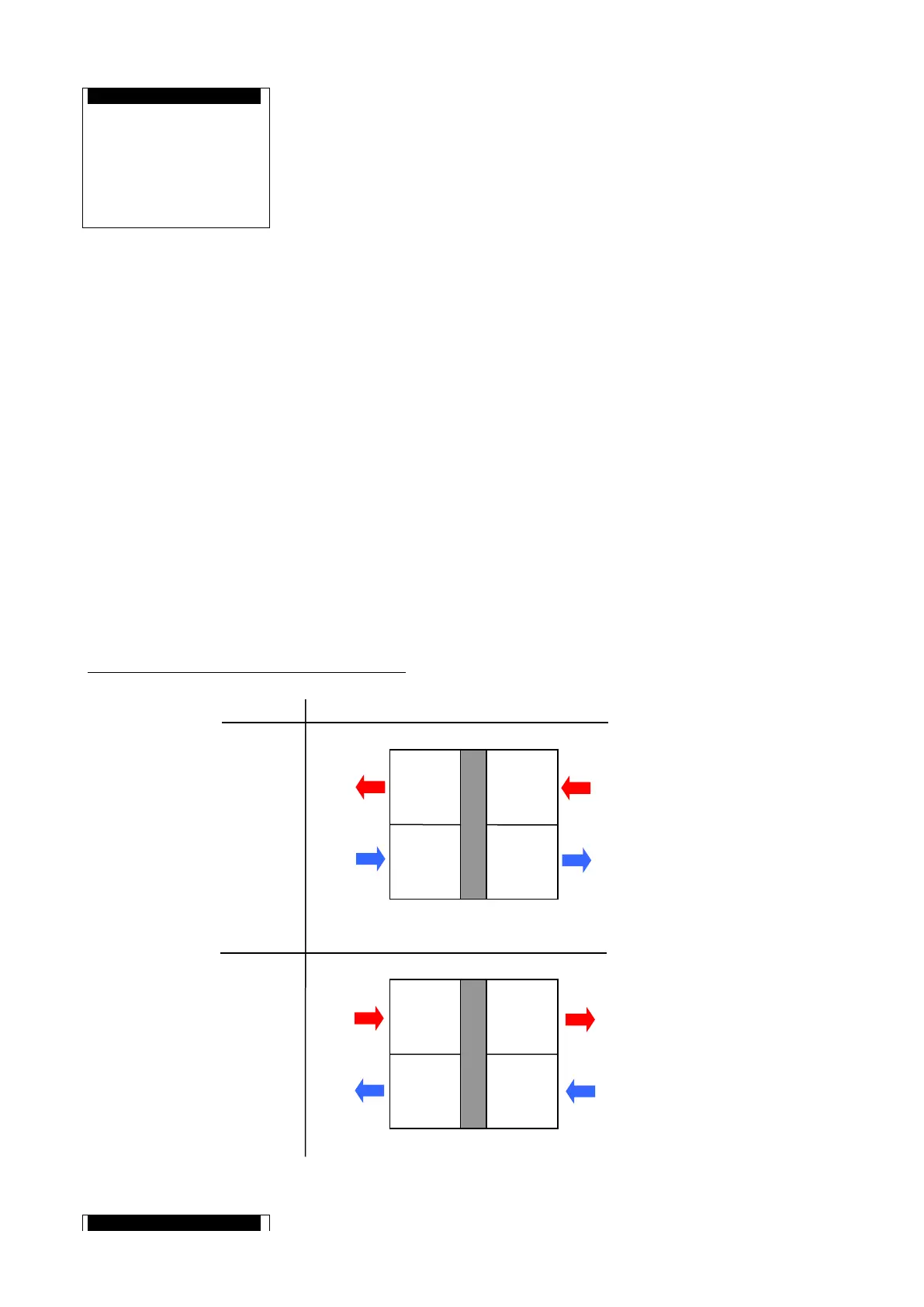

Classic RHE model orientations (frontal view, doors open)
Configuration c1
Level 3 access
Fresh air
Supply air
Return air
ROTS21
ROTS22
Fresh air
Supply air
Return air
Fresh Air
Position P1
Position P2
