5.5.5 Assigning the physical address
The physical address of the KNX card is assigned using the standard procedure.
You must ensure that:
. the Bus wire network is drawn out and connected
. the Bus is energised
. the card is connected to the KNX network
. the controller is powered on

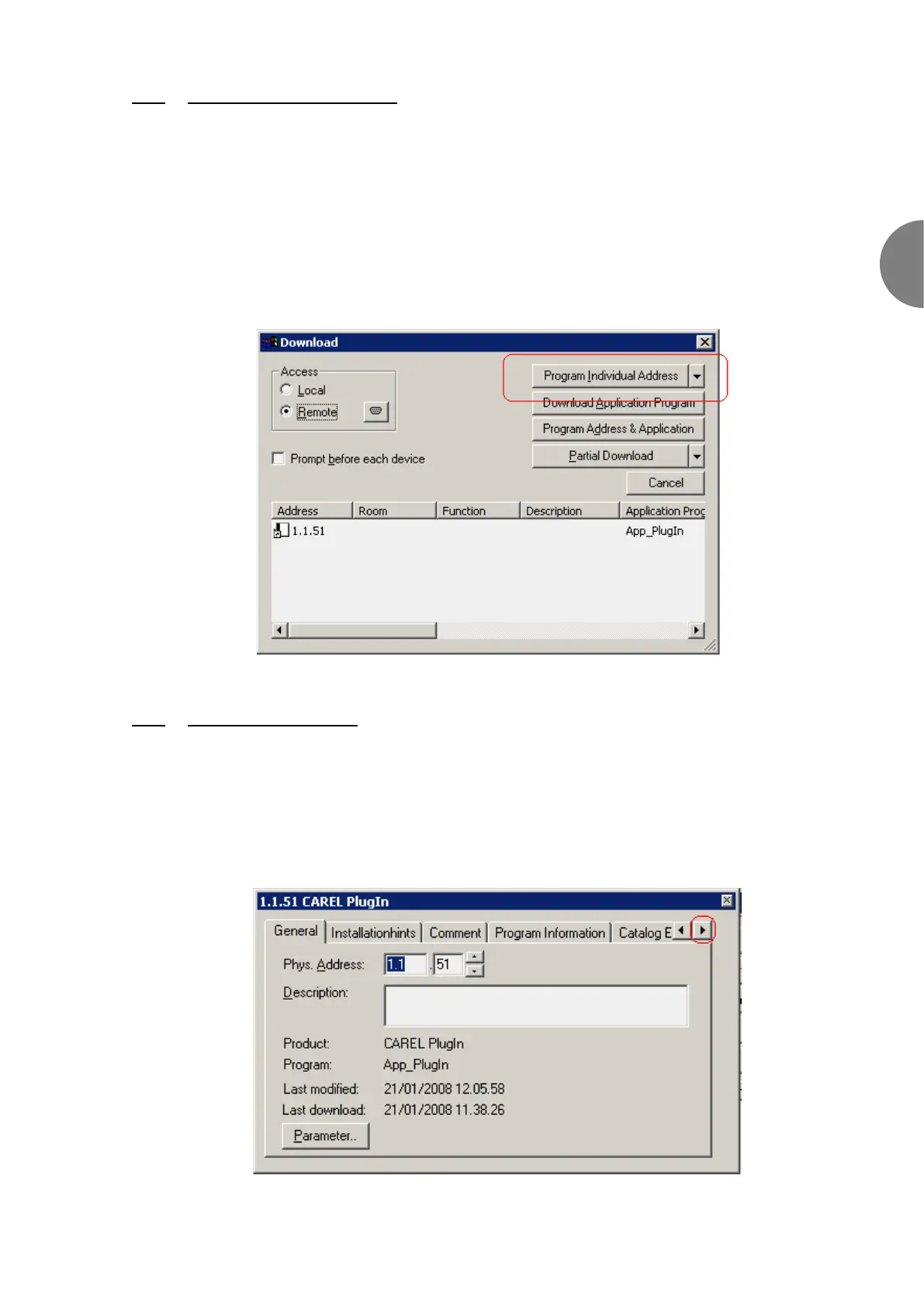

Use the mouse to select the controller to be configured, right-click to open the "Download" menu, Fig.7.d and Fig.7.e.
Select "Program Individual Address" to activate the configuration procedure and press the button on the card. The
green LED on the card goes out to indicate when the operation is complete. If the card address has already been
configured, the message "The address is already used by another device" is displayed.
5.5.6 Downloading the XML file
You must ensure that:
. the Bus wire network is drawn out and connected
. the Bus is energised
. the card is connected to the KNX network
. the controller is powered on
Use the mouse to select the controller to be configured, right-click to open the "Properties" menu; scroll down the list
using the arrows at the top right until the label "CAREL device configuration" is displayed.
