CIAT FLOWAY User Manual

EN-25
EN
- 0-10V: Sensor physically wired to the controller
- com: Pressure value via the CMS
Compensated Qv: Without, With (Fan flow rate compensation as per Fig. 2, page 25)
Compensated T°: Without, With (Regulated temperature compensation as per Fig. 1, page 25)
Free Cooling: Without, With
Fire: Without, With
p4
Level 2 access
Regulated T° ----
Regulated T°: Supply, Return or Ambient air (with th-Tune)
Air quality -----
Air quality: None, 0-5V, 0-10V (not available if the fans are monitored based on constant Supply
air duct pressure)
M factor 01.0
Proportionality factor value for Supply air duct flow rate and pressure control
Quality band 100
Air quality regulation proportional band
Wheel min. 000%
Minimum speed value of rotary heat exchanger wheel
p5
Level 2 access
Shutdown valve 1 open 000%
Opening value for the valve for hydraulic coil 1 when the supply air ventilation is stopped
Shutdown valve 2 open 000%
Opening value for the valve for hydraulic coil 2 when the supply air ventilation is stopped

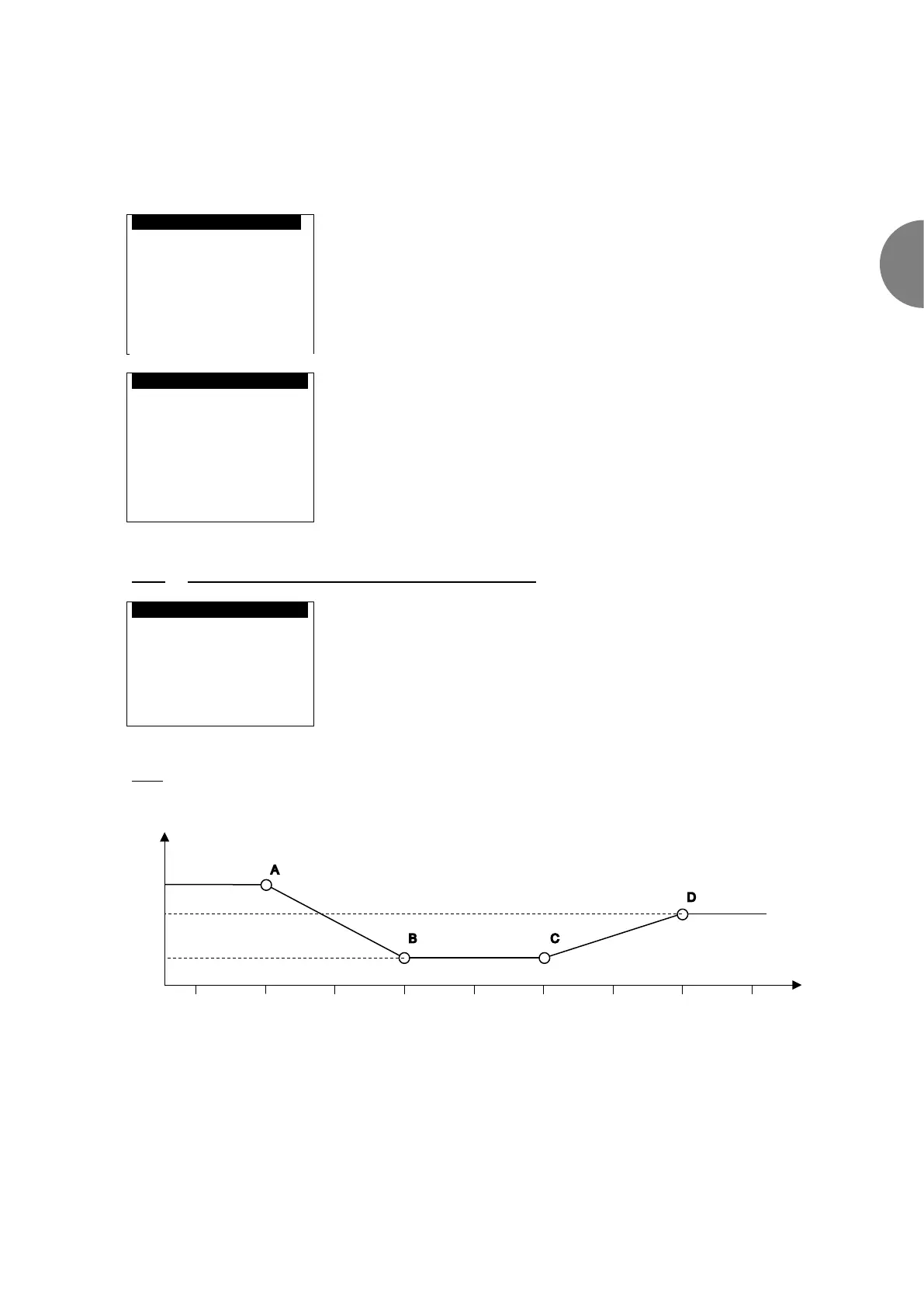

2.4.1 Regulated T° compensation based on the outdoor T°
p7
Level 2 access
3.0°c A -20.0°c
0.0°c B 10.0°c
0.0°c C 25.0°c
2.0°c D 40.0°c
Fig. 1
25
10
-20
40
Outdoor T°
+3
+2
0
Compensation
