EN-42
If the "setting" field is set to '0', the terminal will use the Point-to-Point Protocol (not the pLAN) to communicate with
the controller and the "I/O board address: 07" field will disappear as it will not be necessary.
3.3.2 Assigning private and shared terminals
Follow the procedure below if, at this point, it is necessary to change the list of terminals associated with each
controller:
• enter configuration mode by pressing the and
buttons as described in the previous section;
• press enter until the pointer moves to the "I/O board address" field;
• using the buttons, select the address of the desired controller. The only values selectable will be those of the
controllers that are on the network. If the pLAN network is not working correctly or if no controllers are present, the
field cannot be changed and will display a “—”;

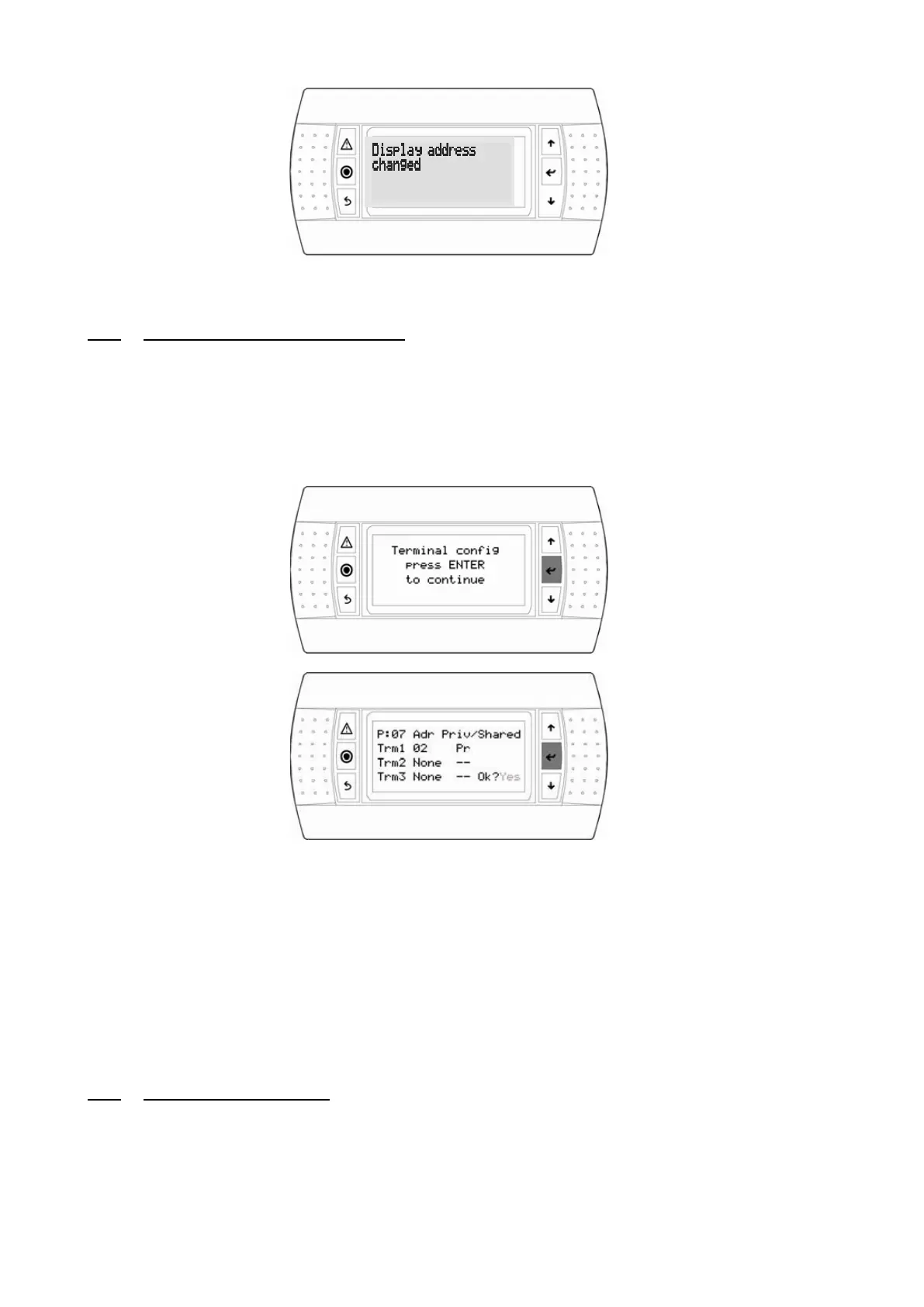

• pressing the enter button again will cause the following mask sequences to appear:
• as above, press enter to move the pointer from field to field. Press the buttons to change the value of the
current field. The P:xx field shows the address of the selected controller. In the example above, controller No. 07 is
selected;
• to exit the configuration procedure and store the data, select "YES" in response to “OK?” and confirm with the
button.
In the case of a shared display for a set of units (maximum 31), the terminal must be configured on each unit in "Sh"
mode.
The fields in the “Adr” column contain the addresses of the terminals associated with the controller whose address is
07; the “Priv/Shared” column shows the terminal type.
Warning: HMI terminals do not have a printer output and therefore cannot be configured as “Sp” (shared printer).
If the terminal remains inactive (no buttons pressed) for more than 30 seconds, it will automatically exit configuration
mode without saving any changes made.
3.3.3 Checking the pLAN address
The pLAN address is displayed in the top left of the main screen, the pLAN NETWORK pL1 screen in the
"Communication" menu and the Program pr1 screen of the "Versions" menu.
