Press to open the Side Cover.
Lock Connector Link
Used to connect the back cover to the Input Hopper Lock.
Input Hopper (Optional)
Stores additional cards (Standard+Optional: max. 200 cards)
OPTION
OPTION
OPTION
OPTION
OPTION
OPTION
Ethernet Port Used to connect to a network using a LAN cable.
USB Port Used to connect to a PC using a USB cable.
USB Socket Used to insert USB memory media or to connect to a PC.
Power Supply Port Connects to the power supply.

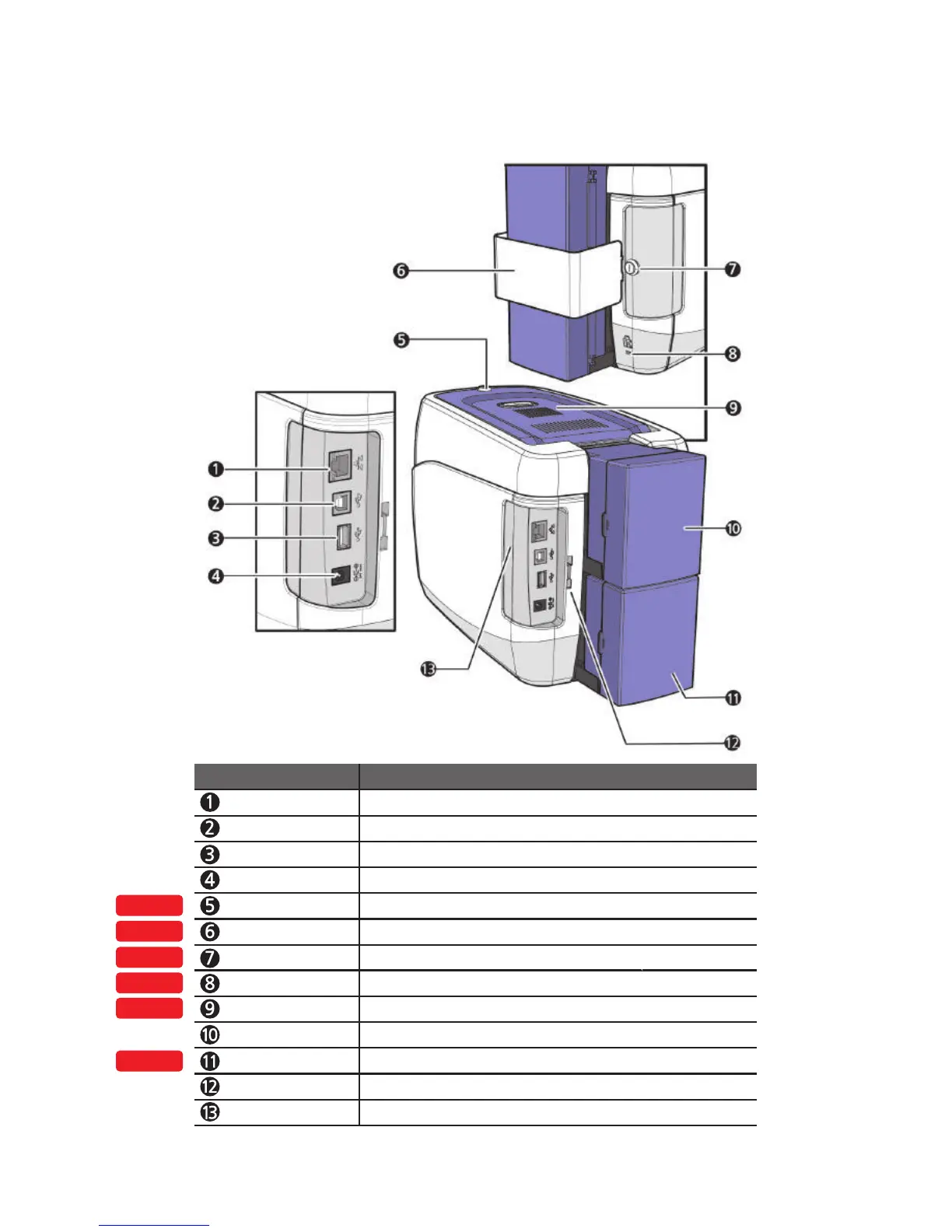

Name Description
Top Cover Lock Key Locks/unlocks the Top Cover.
Printer Lock Use this to mount a security lock.
Locks/unlocks the Input Hopper.
Input Hopper Lock Used to lock the Input hopper for security
External RF Recognizes an RF card.
Input Hopper (Standard)
Stores cards to print (max. 100 cards).
Side Cover Open Section
Input Hopper Lock Key
