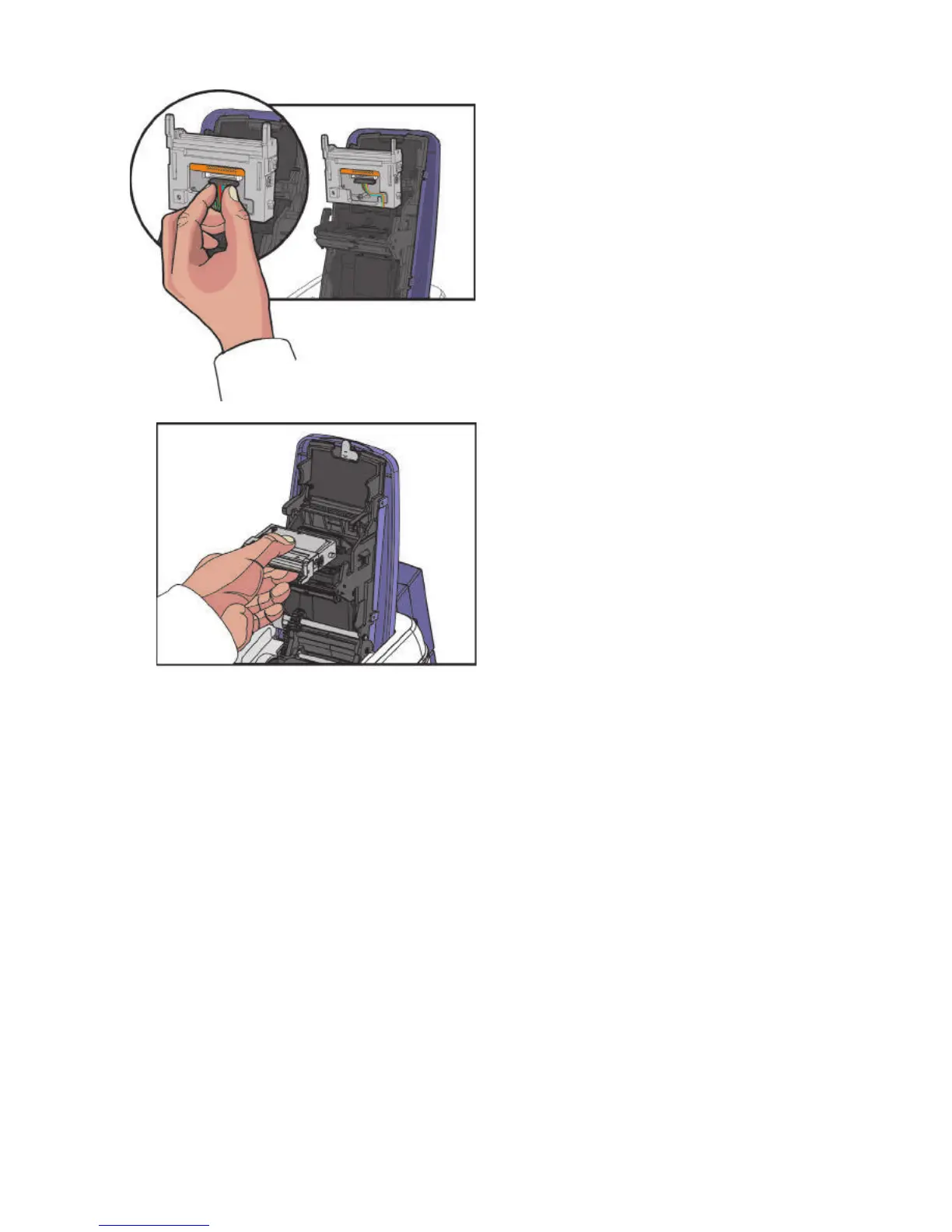

3. Remove the TPH’s connector by

lifting it.

4. Pull it towards you to remove,

and then replace it with a new one.

(Install the TPH in reverse order of

the removal steps.)
