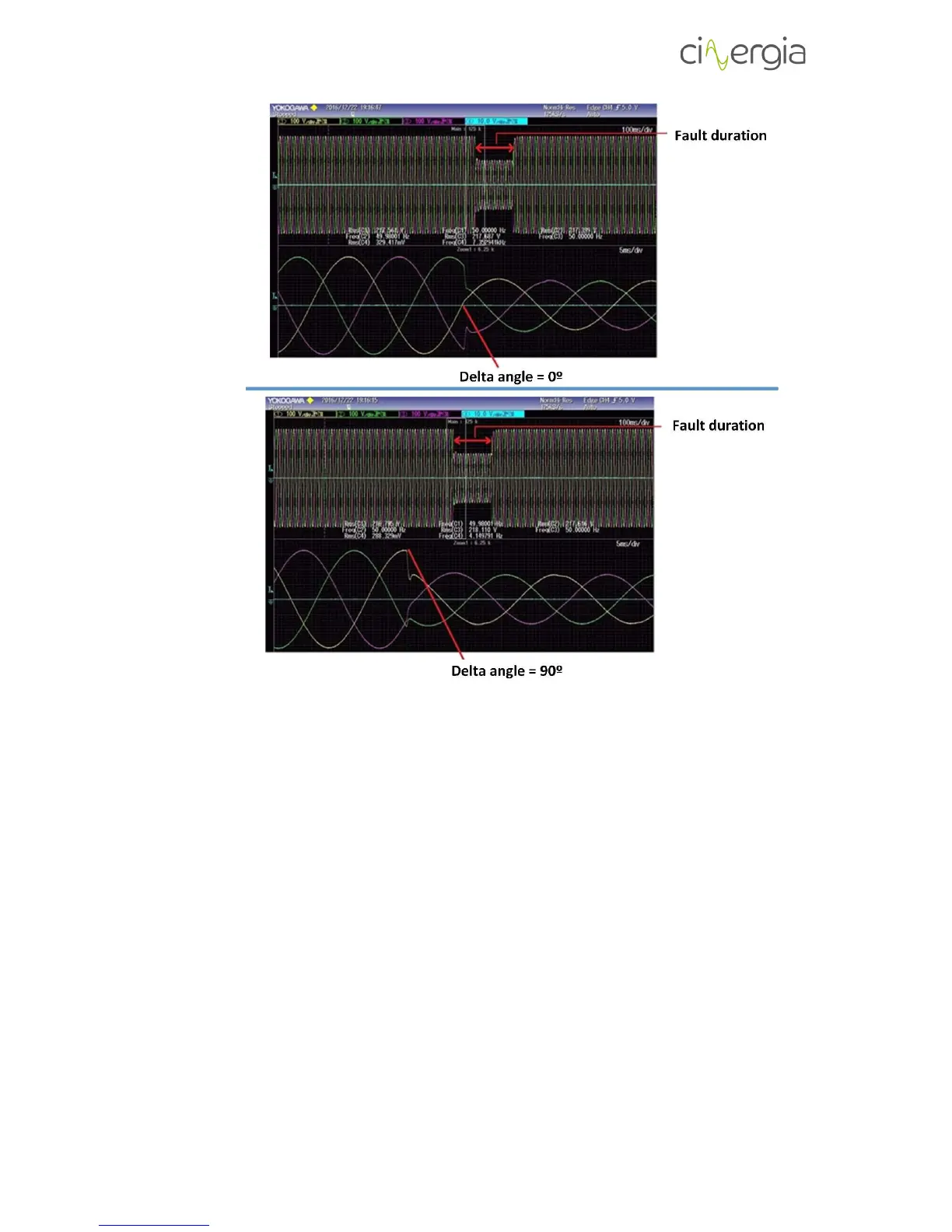

- C: Frequency Variation configurations. This fault makes the frequency grid to reach the
introduced frequency according to the introduced ramps. The minimum and maximum
frequency are the limits of the converter. If the duration of the fault (introduced in
window G) is not long enough, the frequency will not reach the introduced one. The
buttons Add Step and Config Step are explained at the point H of this chapter.
- D: Flicker configurations. It will introduce an over/under voltage modulated by the
introduced frequency. The minimum and maximum values for voltage and frequency
are, respectively, 0%, 50% and 0.01Hz, 20Hz. For example, when the voltage percentage
is 20%, the voltage reaches the actual value of voltage V
RMS
± 20%. The value of
frequency represents the frequency of the modulated wave. The ramps FadeIn and
FadeOut represent the %/ms of the change. The buttons Add Step and Config Step are
explained at the point H of this chapter.
- E: Add pauses in between faults when creating a fault sequence. The minimum
recommended sleep (pause) is 200ms. The buttons Add Step and Config Step are
explained at the point H of this chapter.
- F: Create a grid at the beginning to add faults on it or modify an existing grid in between
faults. The parameters to introduce are the RMS voltage, the angle, the frequency and
